Stainless Steel 150KVA Seam Welding Machine For Oil Tank

Stainless Steel 150KVA Seam Welding Machine For Oil Tank

Stainless Steel 150KVA Seam Welding Machine For Oil Tank
Stainless Steel 150KVA Seam Welding Machine For Oil Tank
Stainless Steel 150KVA Seam Welding Machine For Oil Tank
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC\ISO
Model Number: WL-FS-MF-160K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: HWASHI Stainless Steel Circular Resistance Seam Welding Machine For Oil Tank Application: Welding Alusil / Aluminum Oil Tank
Size: 1600mm X1600mmx1800mm Weight: 1000kg
Condition: New Service Life: 8-10 Years
High Light:

150KVA Seam Welding Machine


2m/ Min Seam Welding Machine


CCC Stainless Steel Welding Machine

Stainless Steel 150KVA Seam Welding Machine For Oil Tank 0


Stainless Steel 150KVA Seam Welding Machine For Oil Tank 1Stainless Steel 150KVA Seam Welding Machine For Oil Tank 2


Stainless Steel 150KVA Seam Welding Machine For Oil Tank 3

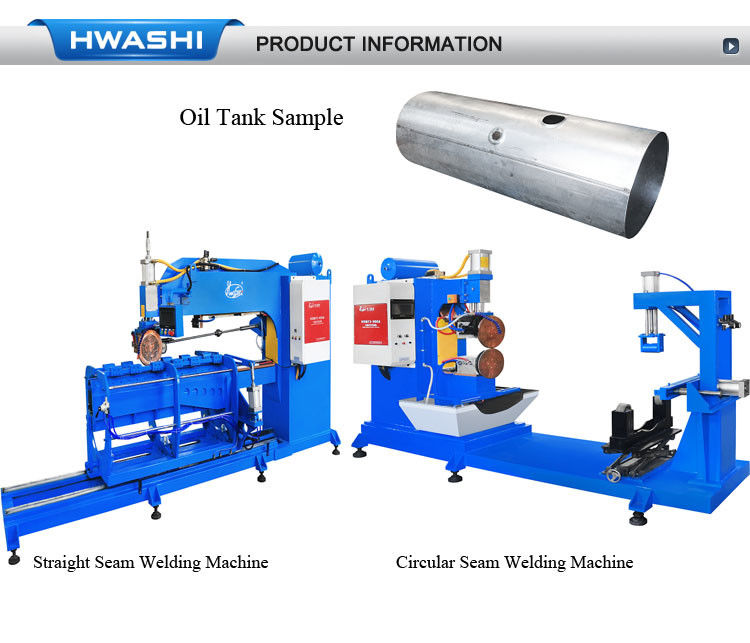

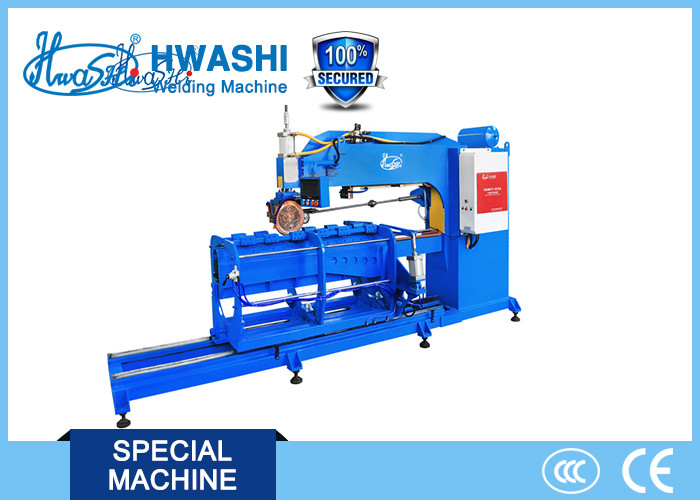

Car Alusil Oil Tank Straight Rolling Seam Welding Machine


The whole production line machines are customized for oil tank. We can customzied the whole production line machines according to your detailed product and your requirement.

Product Application

It is widely applied to welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket andmissile.

Main Features

1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online. 2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding. 3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run. 4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current. 5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity. 6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity. 7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power. 8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.


Technical Parameters




Water Flow
KVA V Hz A mm M/min KN V W L/min Kg
WL-FS-50K 50 380 50/60 15000 50 0.6-2 2.5 3-380V 90 30 500
WL-FS-75K 75 380 50/60 18000 50 0.6-2 3.9 3-380V 150 30 650
WL-FS-100K 100 380 50/60 20000 50 0.6-2 4.7 3-380V 150 30 880
WL-FS-150K 150 380 50/60 26000 50 0.6-2 6.1 3-380V 150 40 1050
WL-FS-200K 200 380 50/60 31000 50 0.6-2 6.1 3-380V 150 40 1250




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
