Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl

Metal Sheet Nuts DC Welding Machine

130K DC Welding Machine

MF DC Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-130K

Contact Us

Request A Quote
Product Details
Product Name:
Metal Sheet Nuts DC Welding Machine WIth Automatic Nut Feeding Bowl
Application:
Welding Of Metal Sheet Nuts
Size:
850x900x1850*mm
Weight:
450kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Metal Sheet Nuts DC Welding Machine WIth Automatic Nut Feeding Bowl

Welding Machine

Adopt 130KVA Medium frequency inverter DC spot welding machine . It adopts the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss.This automatic nut welding machine with automatic feeding system is using the magnetic field vibration principle to select the nut, then the nut will be transported to the setting position. The machine will conduct welding automatically.

Nuts Automatic Feeding System

The nuts will be placed in the vibrative plate. Through the vibrating process, cam transmission, selection, lining up, the nuts will enter into distributor. And the nut will enter into welding position and being welded one by one through distributor.

Feature

1) The vibration plate is designed to equip with the function of preventing the nut turning back and noise;

2) High speed of sorting function to ensure the feeding speed of nut;

3) Use multidigit sensor to form the full closed-loop automatic function. This can ensure the reliability of the machine;

4) The moving parts are made of special material to ensure low transporting friction while lower the production cost.

5) Any shape of the nut could be achieved automatic feeding.

6) In automobile and its parts, many of the work pieces is connected through nuts or bolts. Nowadays, many welding equipment has defection in welding nuts, so our company designed this fixed spot welding machine with nuts/bolts automatic feeding system. This design could perfectly tackle the problems of the nut feeding process and achieve automatic feeding process. This machine could be used for the whole production line. If you match the machine with robot, you can achieve full automatic production, no need of employee.

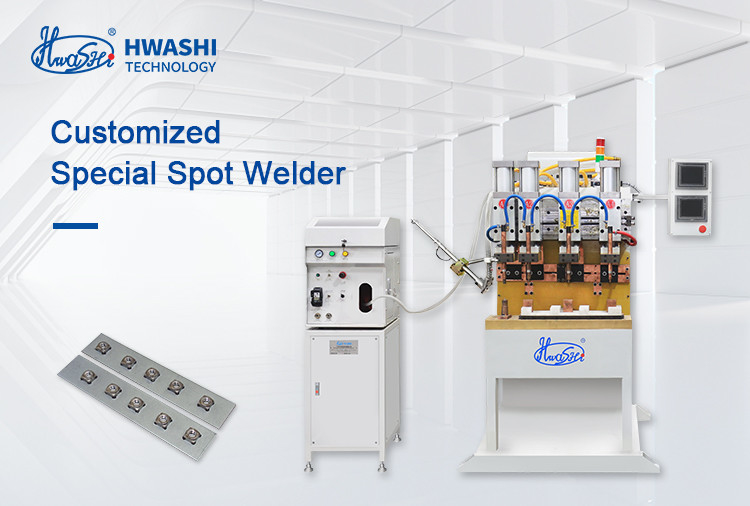

Model 1:Single Head Spot Welding Machine with Nut feeding Bowl



Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 0

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 1 Automatic Nut Feeding Bowl
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 2 Nut feeding tube and gun
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 3 Welding Heads

Model 2: MultipleHead Spot Welding Machine with Nut feeding Bowl

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 4

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 1 Automatic Nut Feeding Bowl
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 6 Four welding heads and jig
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 7 Touch Screen Controller
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 8 Sample

Model 3: Automatic Spot Welding Machine with Rotary Table for Pipe Clamp

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 9

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 10 Rotary Table with 8 jigs
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 11 Mechanical Arm to unload the pipe clamp after welding
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 12 Touch Screen Controller
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 13 Sample

Model 4: Automatic Nut Spot Welding Machine with Double CNC table with jig

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 14

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 15 double CNC tables with jigs
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 16 Automatic Nut Feeding Bowl
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 17 Jig after loading product
Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 18 Product Photo after welding

Specifications of welding machine

Model WL-MF-130K
Input Power (V/φ) 380/3
Rated Power (KVA) 130kva
Applicable Material Welding of nut to metal sheet
Max Short Circuit Current (KA) 23
Electrode Force (KG) 1000
Electrode Stroke (MM) 100
Dimension(L*W*H) 950mm*800mm*1675mm
Warranty 1 years

Specifications of automatic nut feeding bowl

  Items Parameters

Automatic Feeding System

Input Voltage 220V±10% 50HZ
Input Power 0.35KVA
Vibration Plate Speed 60-100pcs/min
Suitable Nuts Sizes M4-M16
Suitable Nuts Shape

Quadrangle, square, hexagonal , hexagon, flange,

circle

Transmission Capability 40-60pcs/min
Transmission Angles 30-50°
Transmission Method Sliding rail or electromagnetic type
Vibration Plate Size 302mm
Nuts Storage Amount 20000 pcs
Resistance Welding System Input Voltage 380V±10% 50HZ(two-phase)
Input Power 150KVA
Secondary Voltage AC10.8V
Max Short Circuit Current 3800A
Electrode Pressure 1000kg
Feeding Pressure 150kg
Air Pressure ≧0.6Mpa
Water Pressure

≧0.1Mpa

APPLICATION AND SAMPLES

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 19

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 20

Metal Sheet Nuts DC Welding Machine With Automatic Nut Feeding Bowl 21
