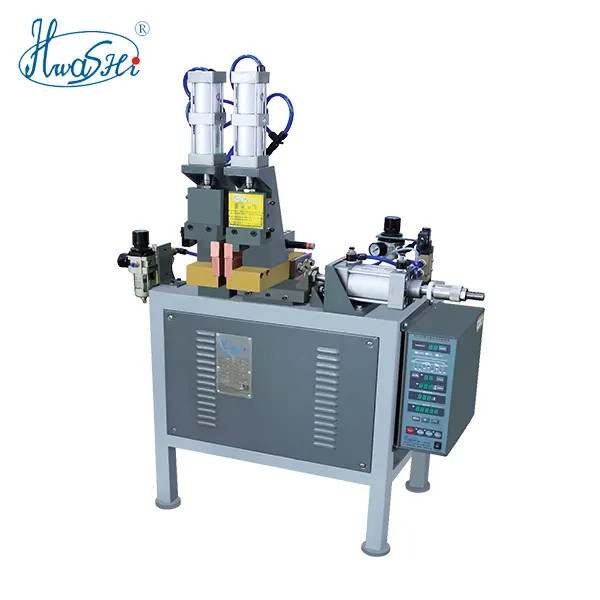

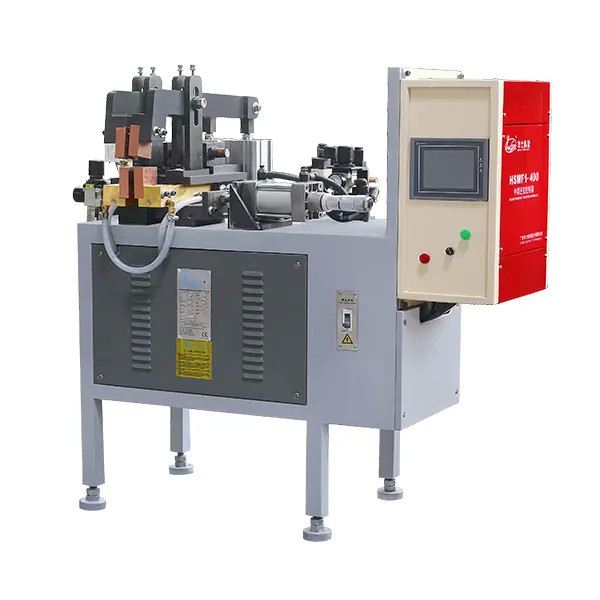

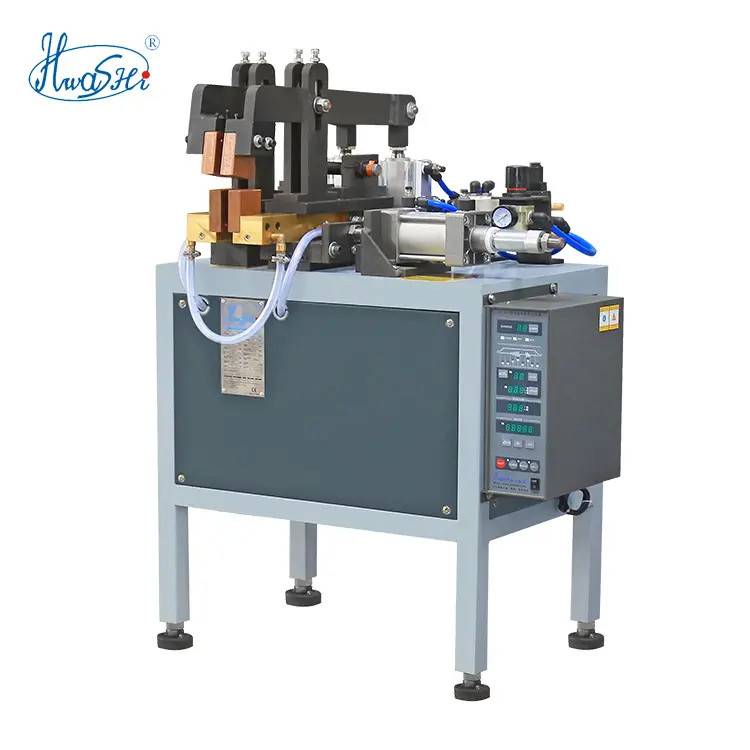

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires

Wire Rod Flash Butt Welding Machine

AC 380V Flash Butt Welding Machine

Metal Wires Flash Butt Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE

Model Number:

WL-B-50K

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Price
5000usd
Packaging Details
Wooden
Delivery Time
5-10 working days
Payment Terms
L/C, T/T
Supply Ability
300 pcs/month
Product Description

Hwashi Professional Steel Bar Wire Rod Butt Welding Machine in New Design

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 0Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 1Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 2Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 3

WL--B--25K

WL--B--75K

WL--B--100K

WL--B--200K

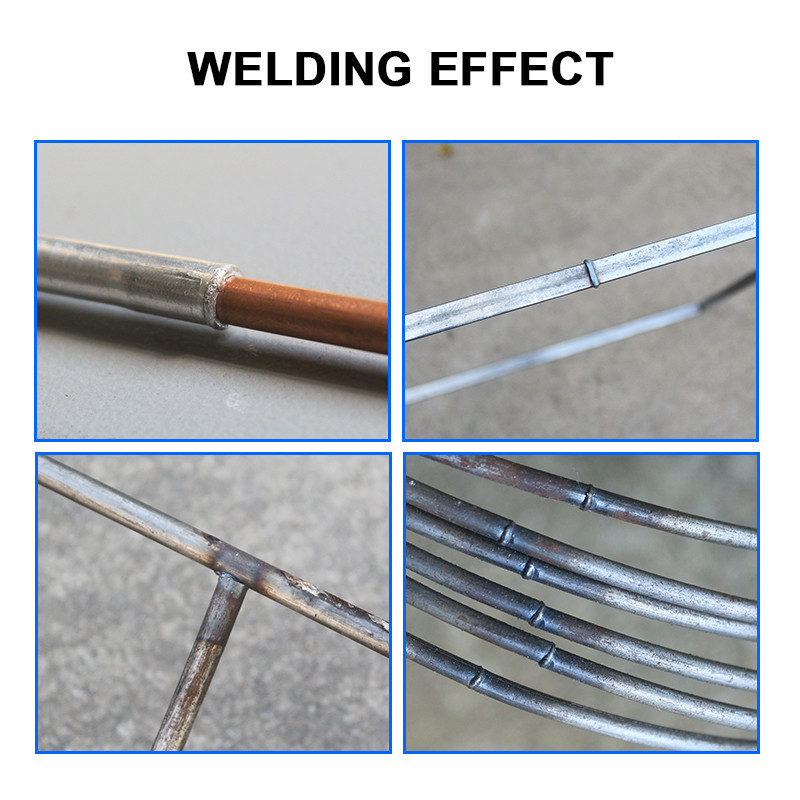

Low-carbon steel welding

Copper welding

Stainless steel welding

Brass welding

Under the operation of transformer, steel bar wire rod butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, 50k butt welding machine in China achieves the goal of welding two workpieces. As a professional steel bar wire rod butt welding machine manufacturers, we have strong production technology.

Product Features

1. Welding Power Source: Adopt AC 380V, 50KVA welding power source. The heat will be generated on the work piece evenly to ensure the heated area is small, the welding quality, stability, consistency and welding outlook is good. Small impact to the power grid and compare with other single-phase welder of the same capacity. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.

2. Welding Control System: Adopt the advanced microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Quick logical circuit which could guarantee the situation that the machine will be at work only when the voltage of discharge is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint.

3.Clamping Device: Use ¢50 double-layer cylinder as pressing source. It is controlled by imported solenoid valve with good quality. Match with precision-machined linear slide way to press the work piece. Adopt the side pressing mode to ensure the good secondary contact between work piece and electrodes.

4. Welding Pushing Device: Use ¢80 single layer as pressing source. It is controlled by imported solenoid valve with good quality. Match with precision-machined linear slide way to press the work piece. Adopt the side pressing mode to ensure the good sub loop contact, constant resistance value in order to obtain constant output current of welding transformer.

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 4

Intelligent Welding Control System

Be able to choose AC or MF DC power source. You can save different welding models on the controller for different welding material and wire thickness.

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 5

Welding Electrode

Be able to make several grooves on the electrodes so one electrode set could weld several types of different wire diameter

Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 6

Customized Special Welding Moulds

Processing and making suitable molds according to different product butt welding requirements, making work easier.


Hwashi Steel Bar Wire Rod Flash Butt Welding Machine AC 380V 50KVA For Metal Wires 7

Automatic Loading and Unloading Arm

Be able to install the automatic loading and unloading arm to the butt welding machine, so it can be matched with 2D/3D bending machine to achieve full automatic forming and welding process.

Application

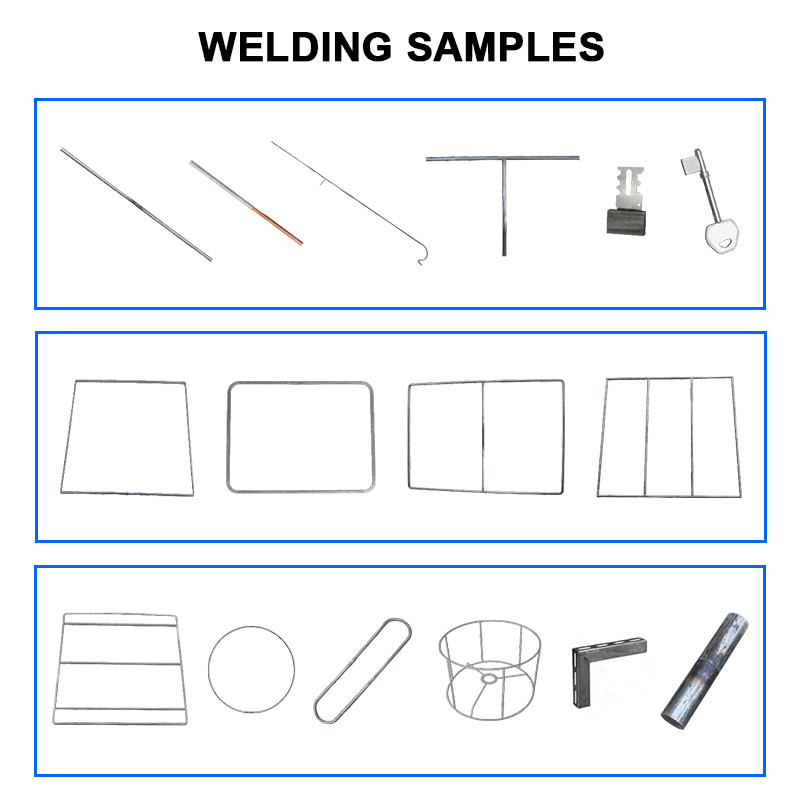

Suitable for end face welding of carbon steel, copper, aluminum, stainless steel, alloy steel and other materials such as wire, bar and pipe.
