10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine

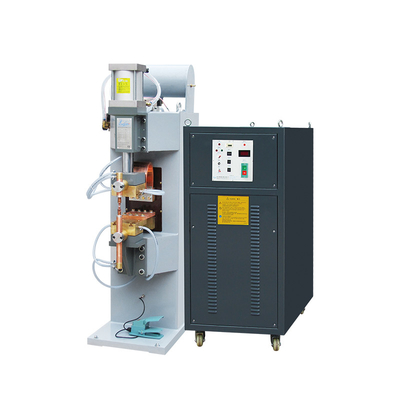

10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine

Cookware Capacitor Spot Welder

SS Cookware Capacitor Spot Welder

Stainless Steel Cookware Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C-10K

Contact Us

Request A Quote
Product Details
Product Name:
Double Efficiency Various Metal Kitchen Utensil Panhandle Capacitor Spot Welding Machine
Size:
900*490*1670mm
Application:
Welding Of Stainless Steel ,stud, Kitchen Utensil
Weight:
400 KG
Power (KW):
10
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, Western Union
Supply Ability
50 sets per month
Product Description

Double Efficiency Various Metal Kitchen Utensil Panhandle Capacitor Spot Welding Machine

10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 0

Features

1. Wide Application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.
2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; Especially suitable for welding those exporting products which have high requirement on good looking.
3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.

10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 1 10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 2

Intelligent welding control system

Intelligent Touch Screen Controller Input and read
welding parameters, Optional Digital Dial Code Type, Intelligent Microcomputer Type, Touch Screen Type.

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding.

10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 3 10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 4

Custom processing of electrodes

Customized Electrodes which will be suitable for
Welding material like steel, aluminium, silver, stainless
Steel, and nickel steel.



Shape structure and welding method

Design the right machine shape and mold according to
the welding product.

Features of The Capacitor Discharge Spot Welding Machine
1.The requirements for the power grid are low and do not affect the power grid.
2.The welding process is short, the instantaneous current is high, and the heat affected zone is small.
3.The water cooling circulation system helps to effectively reduce the consumption of electrodes and transformers.
4.The welding surface oxidation and deformation is small, no black coating, and no grinding process is required after welding.

Specification

Model

Voltage
V

Power
KVA

Output Head
W.S

Capacitance

UF

Electrode Force

KG

Electrode Stroke

MM

Overall Dimension

MM

WL-C-1K 220V 1PH 1KVA 300 3000 30 25 545
WL-C-2K 220V 1PH 2KVA 500 4500 100 50 545
WL-C-2.5K 220V 1PH 2.5KVA 1000 9000 100 50 545
WL-C-3K 380V 3PH 3KVA 1500 14000 350 80 950
WL-C-5K 380V 3PH 5KVA 3000 28000 350 80 700
WL-C-7K 380V 3PH 7KVA 4500 42000 800 100 950
WL-C-10K 380V 3PH 10KVA 6000 60000 1000 100 950
WL-C-12K 380V 3PH 12KVA 7000 70000 1000 100 950
WL-C-15K 380V 3PH 15KVA 8000 80000 1000 100 950
WL-C-18K 380V 3PH 18KVA 10000 15000 1000 100 950
WL-C-20K 380V 3PH 20KVA 15000 150000 1500 100 950
WL-C-25K 380V 3PH 25KVA 18000 18000 2000 100 950
WL-C-30K 380V 3PH 30KVA 20000 20000 2000 100 1100
WL-C-40K 380V 3PH 40KVA 25000 25000 2000 100 1100
WL-C-50K 380V 3PH 50KVA 30000 30000 2000 100 1100
WL-C-60K 380V 3PH 60KVA 35000 35000 2000 100 1100



10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 5

10K Cookware Capacitor Spot Welder Stainless Steel Spot Welding Machine 6
