Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-FS-75K
Contact Us

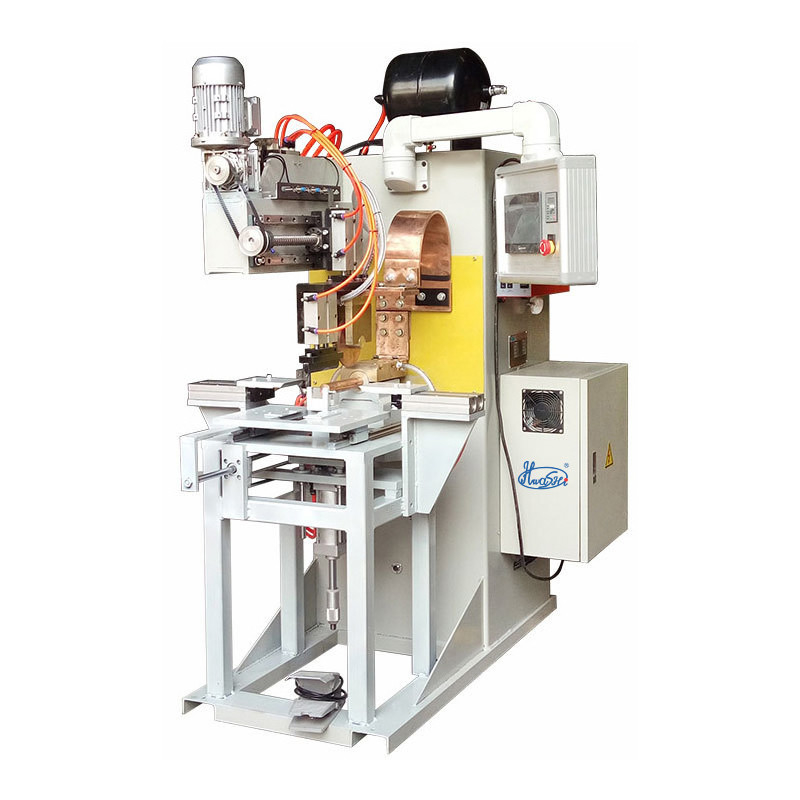

Hwashi Automatic Roll-Round Welding Forming,Woven Wire Mesh Filter Cartridge with Roll Welding
The Automatic Roll-Round Welding and Forming Equipment is an integrated advanced system designed to achieve automatic forming and welding operations on cylindrical workpieces. By combining roll-round forming and welding processes, this equipment significantly enhances production efficiency while ensuring high-quality finished products.
1. Automated Forming: The equipment features automatic roll-round forming capability, enabling precise and consistent forming of cylindrical workpieces, reducing manual labor and improving operational efficiency.
2. High-Precision Welding: Equipped with advanced high-precision welding technology, the equipment ensures accuracy and consistency during the welding process, guaranteeing the welding quality of the finished products.
The Automatic Roll-Round Welding and Forming Equipment seamlessly integrates forming and welding processes, providing production lines with an efficient and precise solution. Its automation features and integrated design make it an ideal choice for achieving high output and top-quality finished products.
Woven Wire Mesh Filter Cartridge Applications
Woven wire mesh filter cartridge is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurities and foam mixed in the gas and liquid.
1.Filtration of air: air filters, vacuum filters, filtration of corrosive gases, etc.
2.Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc.
3.Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc.
4.Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc.
5.Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, medicine making, electronic field, etc.
SPECIFICATION
|
Input power |
380V,2 Phase,50/60Hz |
|
Rated capacity |
50KVA |
|
Welding capacity (mild steel plate) |
1.0mm+1.0mm |
|
Cooling water flow |
15L/min |
|
Maximum electrode pressure |
3900N |
|
Electrode travel |
60mm |
|
Temporary load rate |
40% |
|
Package volume |
1200*1100*1900mm |
|
weight |
750kg |
