Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel

intermediate frequency inverter dc welding machine

carbon steel dc welding machine

carbon steel dc spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-90K/160K

Contact Us

Request A Quote
Product Details
Product Name:
Medium Frequency DC Welding Machine
Application:
Welding Of Copper Aluminum Steel
Size:
850x900x1850*mm
Weight:
450kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

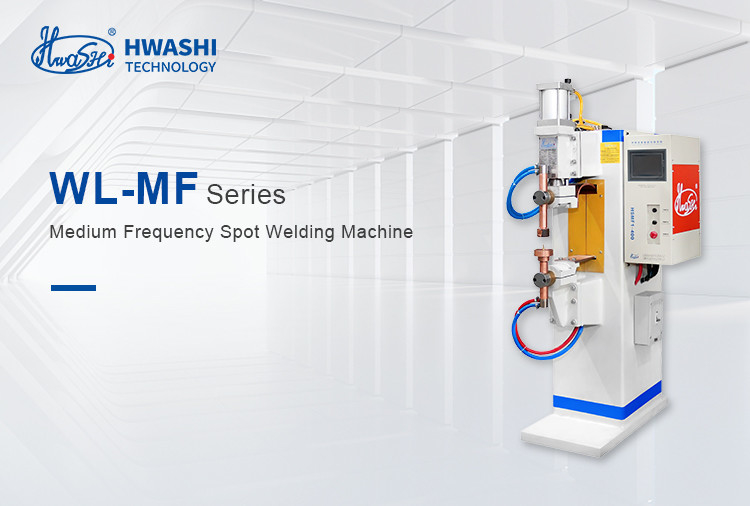

Intermediate Frequency Inverter DC Spot Welder Projection Welding Machine

Welding for Copper Aluminum Carbon Steel



Medium frequency inverter DC spot welder Adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 0

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 1

Intelligent welding control system

Raw materials made to standard

Input and read welding parameters.

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 3Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 4

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.





Feature
1. Three-phase power supply, grid balance, small impact on the grid
The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy
The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality
The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder
joint is good.
4. Save basic investment and save energy
The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate
Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.



Specifications

Model

WL-MF-100K
Input Power (V/φ)
380/3
Rated Power (KVA)
100
Applicable Material
Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)
21
Electrode Force (KG)
1000
Electrode Stroke (MM)
100
Dimension(L*W*H)
950mm*800mm*1675mm
Warranty
1 years

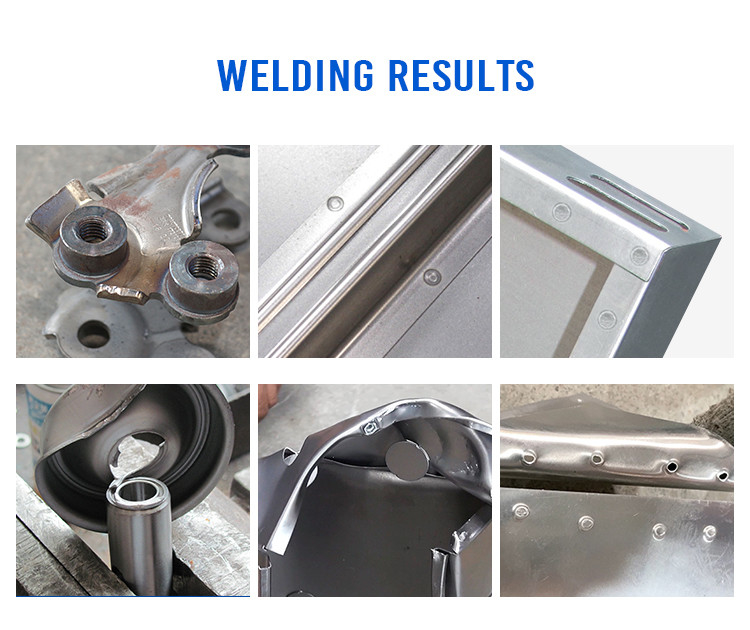

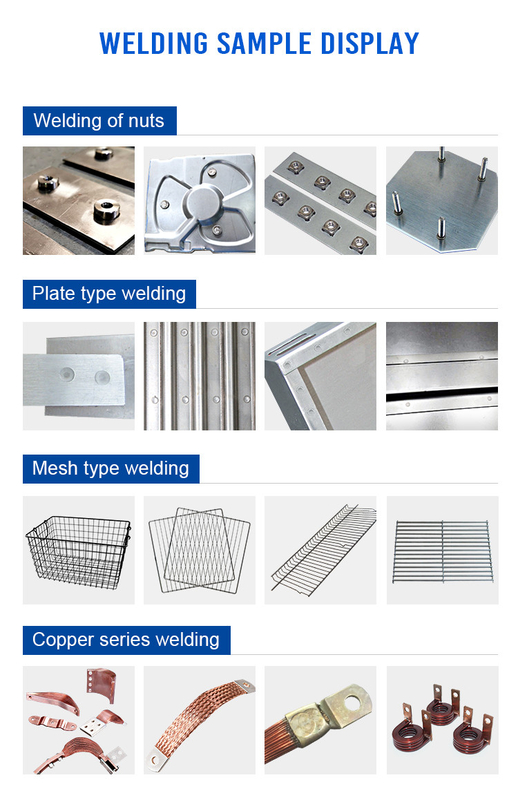

APPLICATION AND SAMPLES

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 5

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 6

Intermediate Frequency Inverter Dc Welding Machine For Copper Aluminum Carbon Steel 7
