HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel

HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel

Spot Welding Machine For Aluminum

Spot Welding Machine For Copper

Spot Welding Machine For Carbon Steel

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

CE

Model Number:

WL-SF-MF160K

Contact Us

Request A Quote
Product Details
Product Name:
HWASHI Flexible Arm DC Power Spot Welding Machine
Dimension(L*W*H):
2200x1500x2000mm
Weight:
1500KG
Welding Type:
Medium Frequency DC Controlled Welding
Warranty:
1 Year
Welding Material:
Copper Aluminum Carbon Steel Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Sea worthy wooden package
Delivery Time
30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

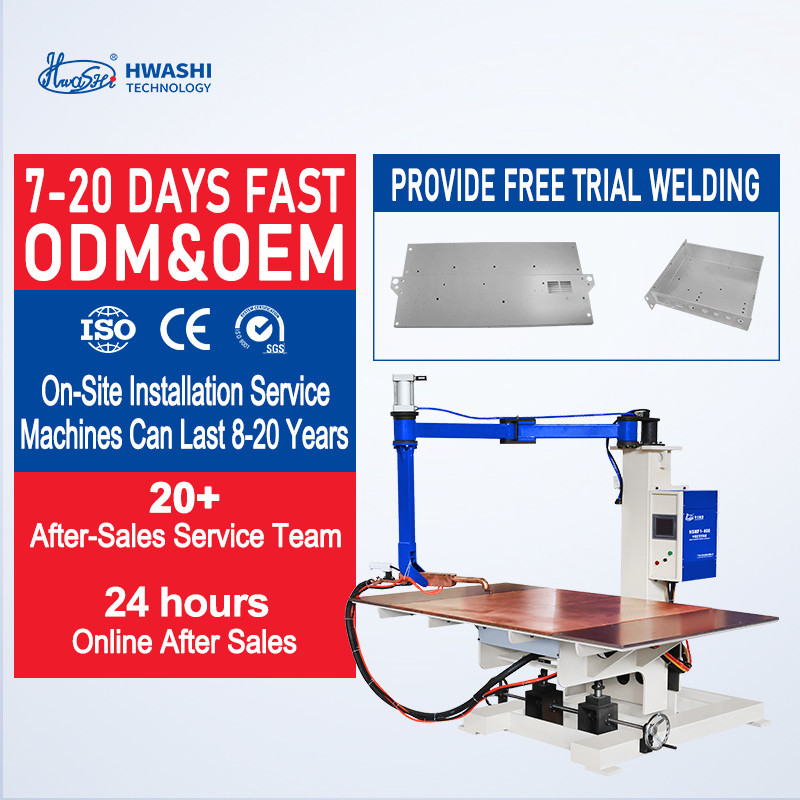

HWASHI Flexible Arm DC Power Spot Welding Machine

The MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine uses the principle of Robotic. Multiple elbow active machine arm adopts automatic mobile mode to be moved to a welding position as per the welding requirement. The machine is of easy operation, convenient and flexible to use. The welding characteristic is that it adopts double-side single point welding mode, with a fully flat design for lower welding electrode. It is applicable for welding multiple-point product on a flat surface. It can effectively guarantee smooth welding on product surface and consistency of welding spots.

HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 0

HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 1 HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 2

Intelligent welding control system

Intelligent Touch Screen Controller Input and read
welding parameters.

Welding platform

Oversized copper plate operating table for welding various sheet metal door panels.
HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 3 HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 4

Horizontal Welding Gun

The H-gun is a long horizontal gun suitable for welding complex workpiece shapes and deep areas. It is possible to weld as desired while moving the gun freely on the table electrode.

Vertical Welding Gun

The V-gun is the most suitable gun for welding deep box products that are closed on all sides. The tip of the gun has a crank shape that makes it easy to aim at the edge of the workpiece. It can also apply pressure directly to the surface, making it ideal for welding nuts, screws, and bosses.
HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 5 HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 6
Screws or Nut Welding Electrode Holder

Special Design Welding Electrode for Cabinet

Table Spot Welding Machine Features

1. Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The two guns move freely, allowing easy access to the desired welding point by one person.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased. Can also weld nuts and screws: Welding can be done efficiently by changing the electrode tip according to the type and size of nut, etc.

Specification



Model

WL-SF-50/75/100K

Input Power (V/φ)

380/3

Rated Power (KVA)

50/75/100

Applicable Material

Stainless Steel, Carbon steel, Aluminum, Metal

Electrode Force (KG)

250-400

Wleding Thickness (MM)

3.0+3.0

Warranty

1 years

HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 7

HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 8HWASHI Flexible Arm Spot Welding Machine For Copper Aluminum Carbon Steel Stainless Steel 9
