Name: Hwashi Handmade Sink Welding Machine, Manual Seam Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS
Price: 6.00 USD
Availability: InStock

Home > products > Seam Welding Machine >

Hwashi Handmade Sink Welding Machine, Manual Seam Welding Machine

Handmade Sink Welding Machine

Handmade Sink Seam Welding Machine

Manual Seam Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-FS

Request A Quote

Product Details

Product Name:

Hwashi Handmade Sink Welding Machine, Manual Seam Welding Machine

Application:

Welding For Stainless Steel Flange

Condition:

New

Warranty:

One Year

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Duty Cycle Rate:

20%

Rated Power:

80KVA

Welding Thickness:

2+2mm

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

HWASHI Seam Welding Machine for Ventilation Duct Manual Tin Can Side Welder Roll to Roll Banner Welder 75KVA 26500A

Get Best Price

Video

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Get Best Price

Video

Hwashi Customized 38ov Double Station Fuel Tank Making Machine, Seam/Roll Weldingmachine for Tank

Get Best Price

Video

Stainless Steel Kitchen Sink Seam Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

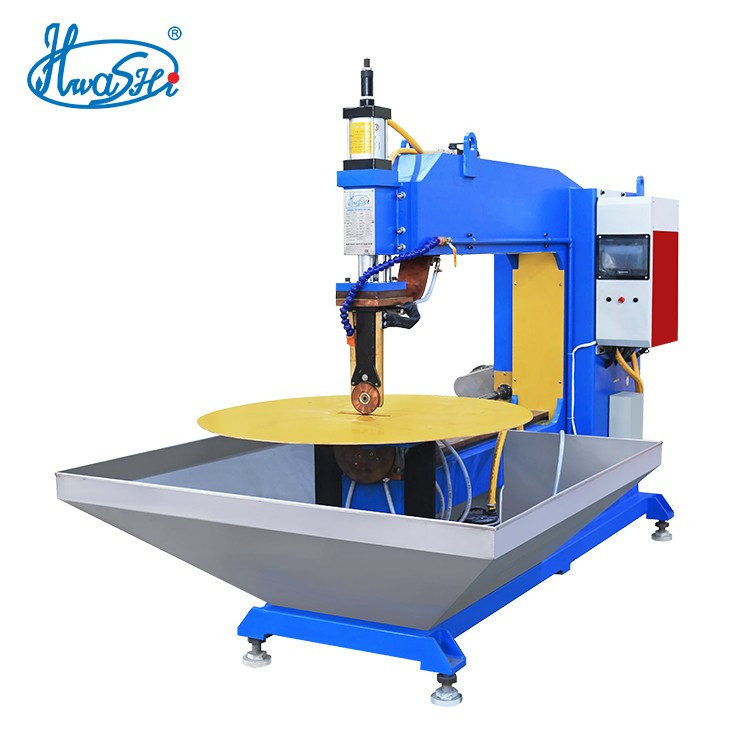

Hwashi Handmade Sink Welding Machine, Manual Seam Welding Machine

Feature

1. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect.

2. Generally, AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. In general, the welding thickness is within 3mm of single plate.

Seam welding machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. The weld consists of a single weld joint, which is divided into roll spot welding or gas-tight seam welding according to the different core fusion overlap.

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

High quality super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.

Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.

Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding. 2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect. 3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. 4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. 5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Specification

Model	Welding Wheel Running Way	input Voltage	input power	output Current
WL-FS- 15K	Horizontal	220/380V	15KW	10000A
WL-FS- 35K	Circle	220/380V	35KW	12000A
WL-FS- 50K	longltudinal	220/380V	50KW	12000A
WL-FS- 75K	Horizontal	380V	75KW	16000A
WL-FS- 100K	Horizontal	380V	100KW	24000A
WL-FS- MF40K	Circle	380V	40KW	19500A
WL-FS- MF150K	Horizontal	380V	150KW	40000A
WL-FS- MF250K	longltudinal	380V	250KW	50000A

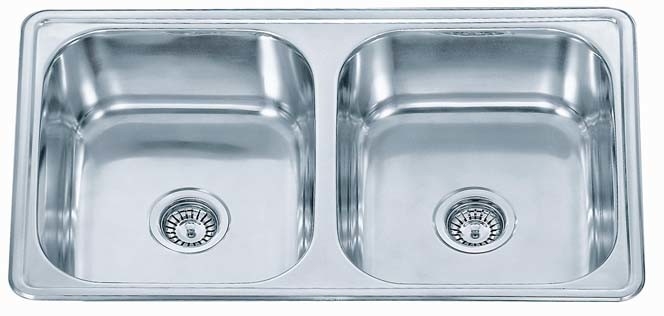

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
