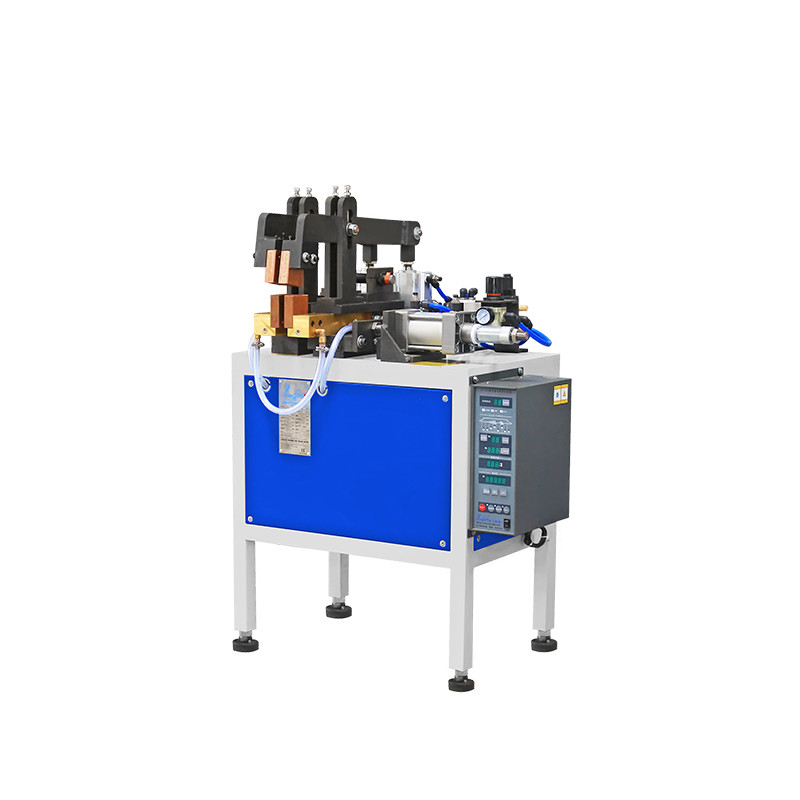

Hwashi Electric Resistance Welding Machine ,Metal Round Wire Butt Welding Machine,Key Soldering Butt Welder

Hwashi Electric Resistance Welding Machine

Metal Round Wire Butt Welding Machine

Key Soldering Butt Welder

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC

Model Number:

WL-B-75K

Request A Quote

Product Details

Usage:

Butt Welding

Power:

75KVA

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support

Dimensions:

1400x1200x1600mm

Certification:

CE,CCC

Weight:

350KG

Condition:

New

Color:

According To The Customer's Request.,red Or Blue Or Other

Current:

Alternating Current

Input Voltage:

380V

Frequency:

50-60HZ

Voltage:

380V

Warranty:

1 Year

Product Name:

China Supplier Butt Welding Machine

Package:

Wooden Box

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

Wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Wire Straightening Butt Welding Machine

Get Best Price

Video

Pneumatic AC Dual Key Butt Welder for Metal Lock Key Hardware Products

Get Best Price

Video

Iron Wire Rod Butt Welding Machine , Steel Wire Ring Butt Welding Equipment

Get Best Price

Video

Hwashi Electric Resistance Welding Machine ,Metal Round Wire Butt Welding Machine,Key Soldering Butt Welder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi Electric Resistance Welding Machine ,Metal Round Wire Butt Welding Machine,Key Soldering Butt Welder

Product Description

Hwashi Electric Resistance Welding Machine ,Metal Round Wire Butt Welding Machine,Key Soldering Butt Welder

WL--B--25K	WL--B--75K	WL--B--100K	WL--B--200K

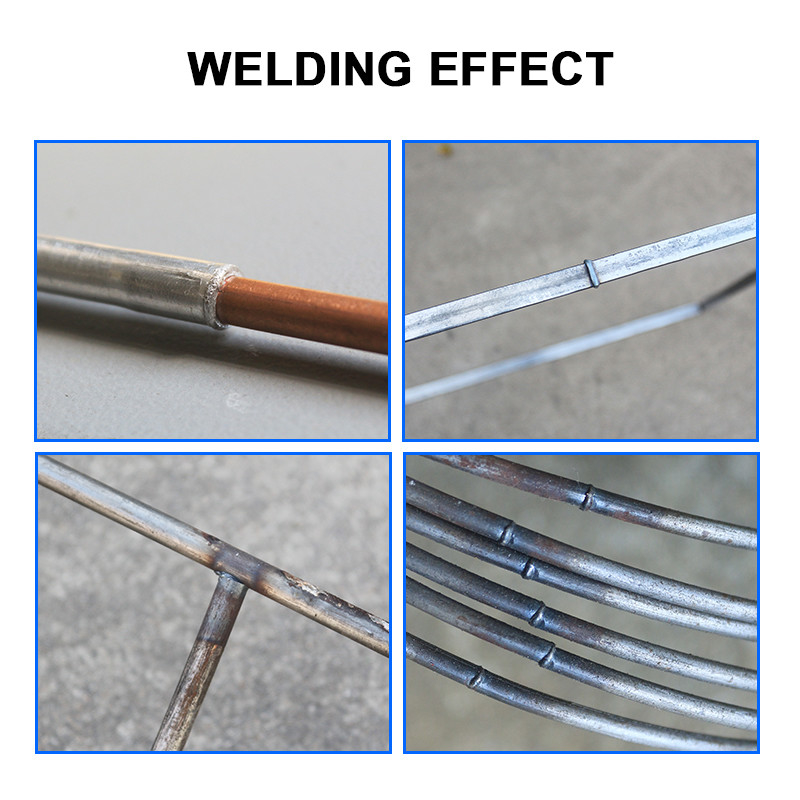

Low-carbon steel welding	Copper welding	Stainless steel welding	Brass welding

Product Description

Under the operation of transformer, steel bar wire rod butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, 50k butt welding machine in China achieves the goal of welding two workpieces. As a professional steel bar wire rod butt welding machine manufacturers, we have strong production technology.

Intelligent Welding Control System

Be able to choose AC or MF DC power source. You can save different welding models on the controller for different welding material and wire thickness.

Welding Electrode

Be able to make several grooves on the electrodes so one electrode set could weld several types of different wire diameter

Customized Special Welding Moulds

Processing and making suitable molds according to different product butt welding requirements, making work easier.

Automatic Loading and Unloading Arm

Be able to install the automatic loading and unloading arm to the butt welding machine, so it can be matched with 2D/3D bending machine to achieve full automatic forming and welding process.

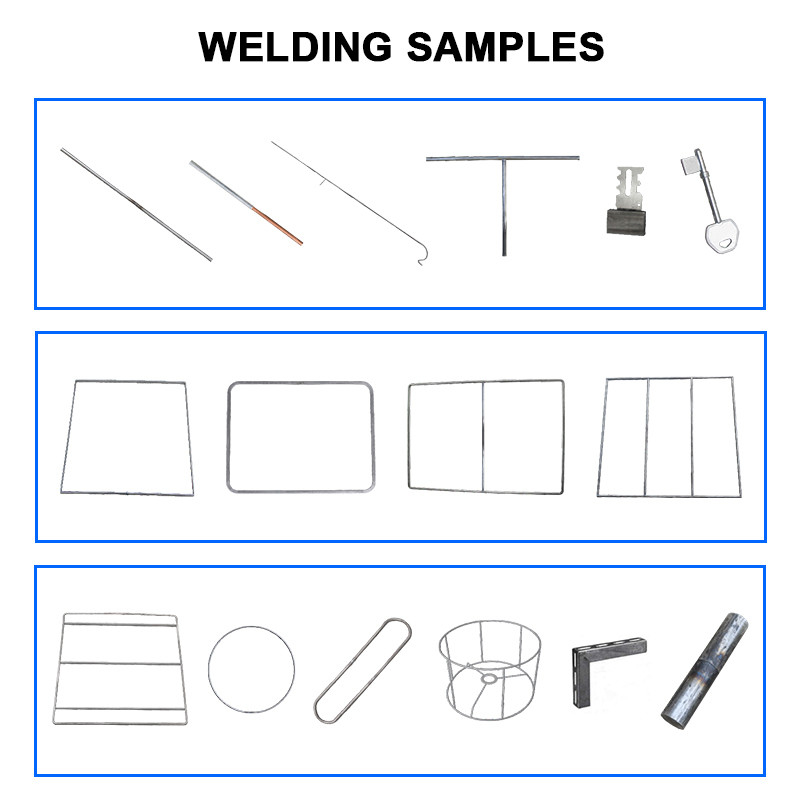

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Application

Suitable for end face welding of carbon steel, copper, aluminum, stainless steel, alloy steel and other materials such as wire, bar and pipe.

Specification

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.

Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
