Product Description

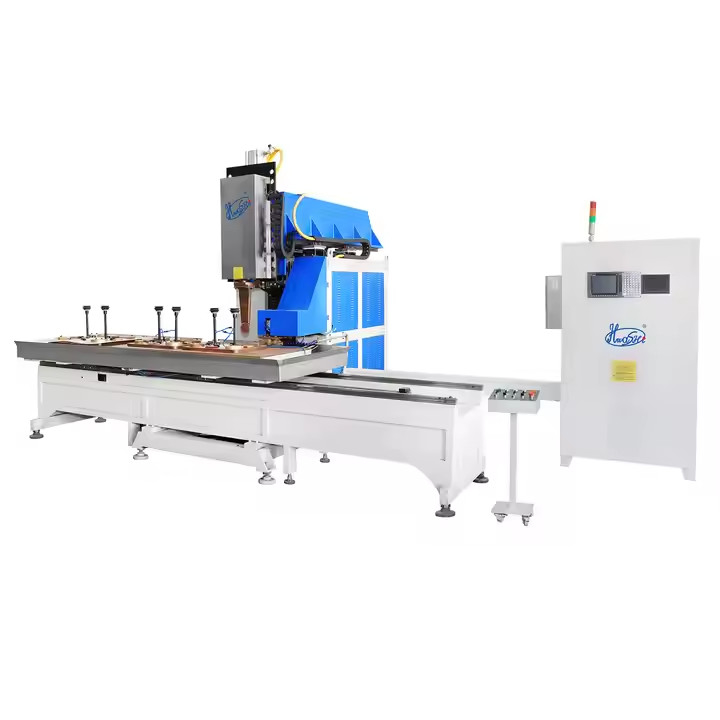

HWASHI 160KVA Automatic CNC Kitchen Sink Rolling Seam Welding Machine Price for Kitchen Sink / Hotel Sink / Restaurant Sink

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products.

Japan Mitsubishi CNC Control System

Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

MF DC Welding Controller

Be able to save 32 types different welding models for different material and thickness.

Big Copper Flat Table Electrode and Fixture

We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product.

Stock Machine Available

We have sufficient machines in stock, we can deliver the machines to you within 20 days. Only need to prepare the customized fixture for you. Welding Test is available.

HWASHI Sink Edge round corner grinding machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Edge Grinding and Polishing Machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.

Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Special Design Grinding Belt

Brown belt (fine abrasive belt) DEERFOS RA631 150# Blue belt (coarse abrasive belt) 577F P80Y The movement and control system will be the same as the sink seam welding machine

Auto Moving Table and Fixture Structure

For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.

R-Corner Polishing Effect

Straight Seam Polishing Effect

Specification

CNC Sink Seam Welding Machine	Model	WL-AMF-160K
	Input Power (V/φ)	380V 3φ
	Rated Power (KVA)	160/250KVA (as per material thickness)
	Applicable Material	Stainless Steel 304/201
	Material Thickness	0.8~1.5mm (customized)
	Effective Welding Length	1600-3000mm (customized)
	Effective Welding Width	600-800mm (customized)
	Sink Bowl Shape	Square/Rectangular/Round
	Welding Efficiency	about 40-60sec/bowl (depend on the size of bowl)
CNC Sink Edge Grinding and Polishing Machine	Max. Moving Speed	500mm/sec
	Belt Rotation Speed	1200R/min
	Min. Radius	R40
	Rated Air Pressure	0.6MPa
	Grinding Efficiency	about 60-80sec/bowl (depend on the size of bowl)
