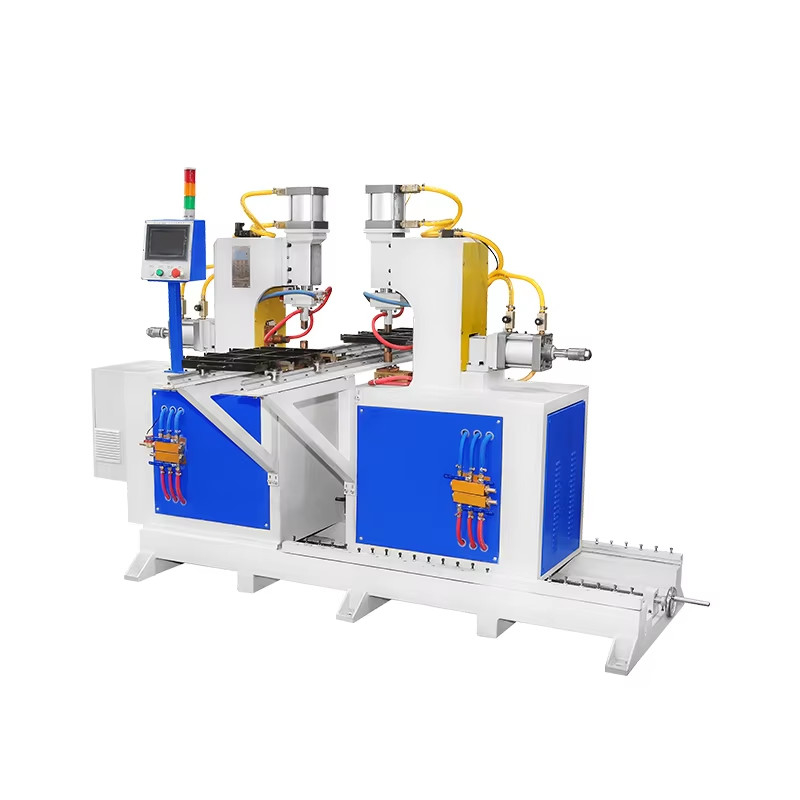

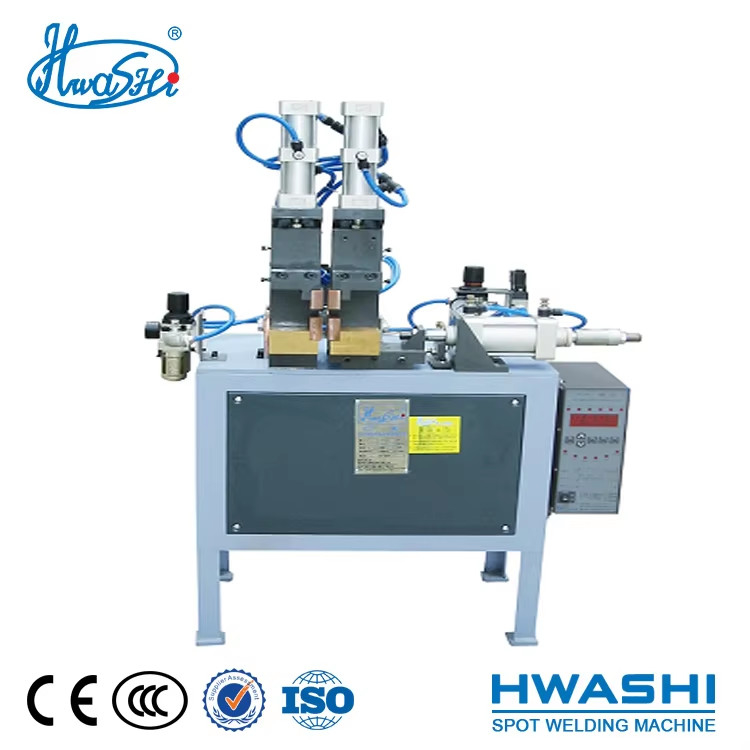

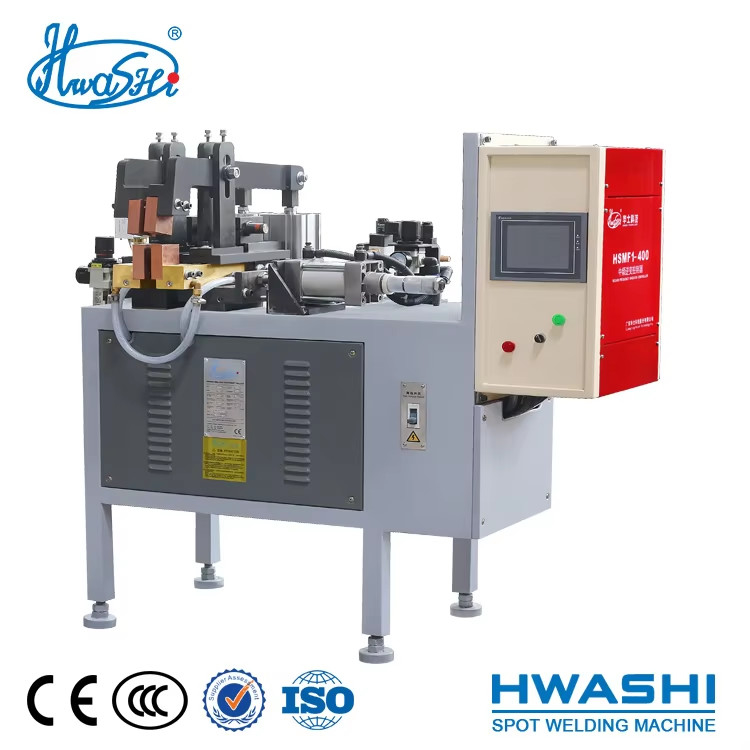

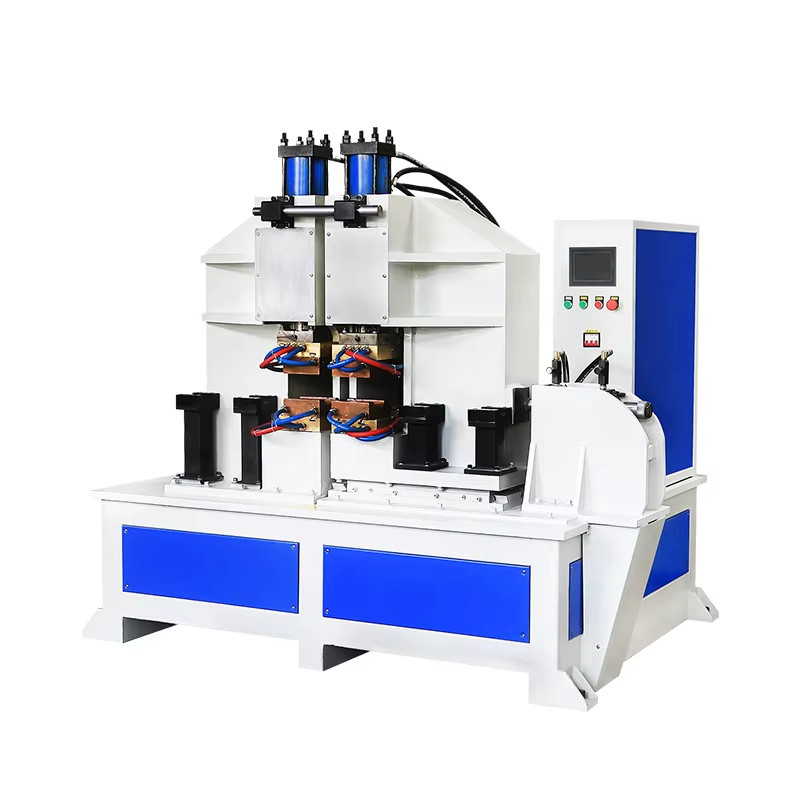

Iron Wire Rod Butt Welding Machine , Steel Wire Ring Butt Welding Equipment

Description:

Butt welding machine is able to place the end face of the work pieces on the opposite place. To utilize the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under the effect of pressure.

This machine could choose the function of three times discharging. As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slideway to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the connecting position.

Feature:

1. Rigid Welded Steel Frame.
2. Air Operated.
3. Water-cooled.
4. Clamping Dies operated by independent
5. Air Cylinders.
6. Upset Electrode Force applied by an additional Air Cylinder.
7. Easy Adjustment permits fast set-up and
8. Quick Changeover.
9. Mechanical Upset Weld Limiter.
10. Maintenance Free SCR Contactor.
11. Optional Annealing Feature.

Application:

Butt welding of wire rod with different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm.

Specification:

Material Configuration:

1.Adopt the energy storage quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is the original MARGON or HITACHI; Fast discharge rate. Stable performance.

2.Adopt SEMIKON ,IXYS from West Germany or Silicon controlled of IR from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.

3. Adopt Motorla integrated circuits from United States.Quick reaction. Stable performance.

4.Adopt pneumatic parts from Japan or Taiwan. Reliable performance.

5.All the devices are from imported famous brands. Ideal service life and performance.
