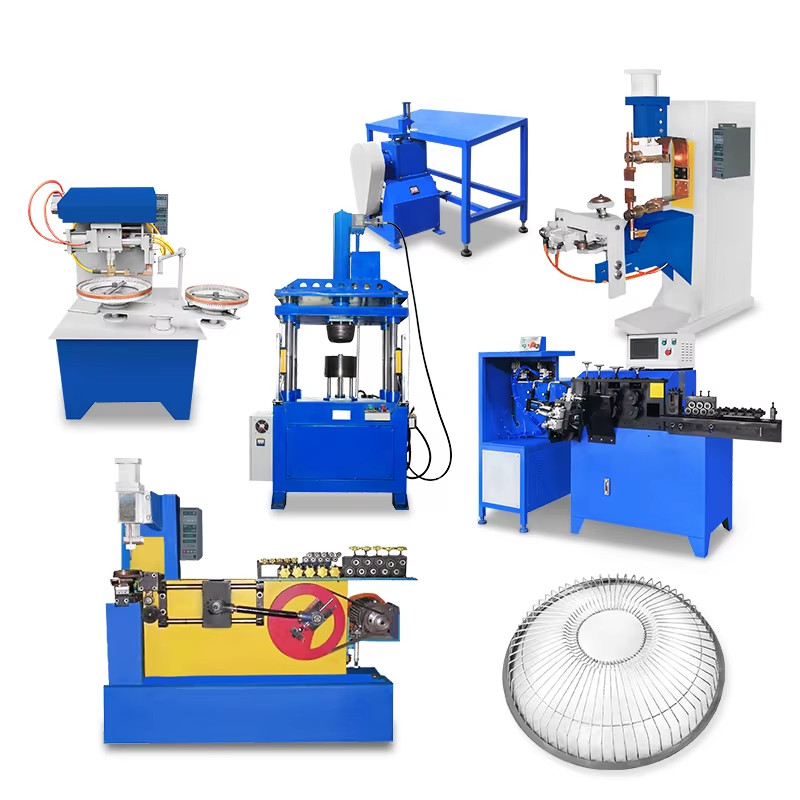

Name: Hwashi Automatic Fan Guard Making Machine,Spiral Fan Guard Making Machine,Air Fan Mesh Welding Machinery Set Plant
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-75K
Price: 14,000.00 USD
Availability: InStock

Home > products > Spot Welding Machine >

Hwashi Automatic Fan Guard Making Machine,Spiral Fan Guard Making Machine,Air Fan Mesh Welding Machinery Set Plant

Spiral Fan Guard Making Machine

Automatic Fan Guard Making Machine

Air Fan Mesh Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SP-75K

Request A Quote

Product Details

Model:

WL-SP-75K

Input Voltage:

380V

Input Power:

75KVA

Output Current:

24000A

Pressurization:

1000kg

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T, MoneyGram

Supply Ability

50 sets per month

Hwashi 2025 New AC Pulse Spot Welder Pneumatic Spot Welding Machine for All Kinds of Hardware

Get Best Price

Video

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Stainless Steel Kitchen Sink Manual Sink Seam Welding Machine

Get Best Price

Video

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi Automatic Fan Guard Making Machine,Spiral Fan Guard Making Machine,Air Fan Mesh Welding Machinery Set Plant

Automatic spot welder for inner ring

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

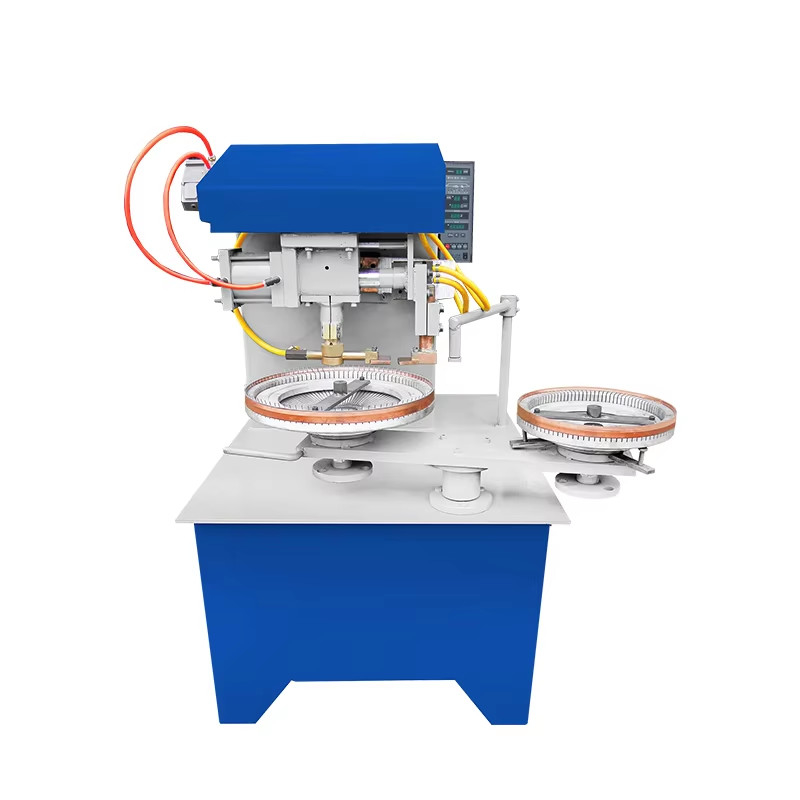

Automatic Outer Ring Welding Machine

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

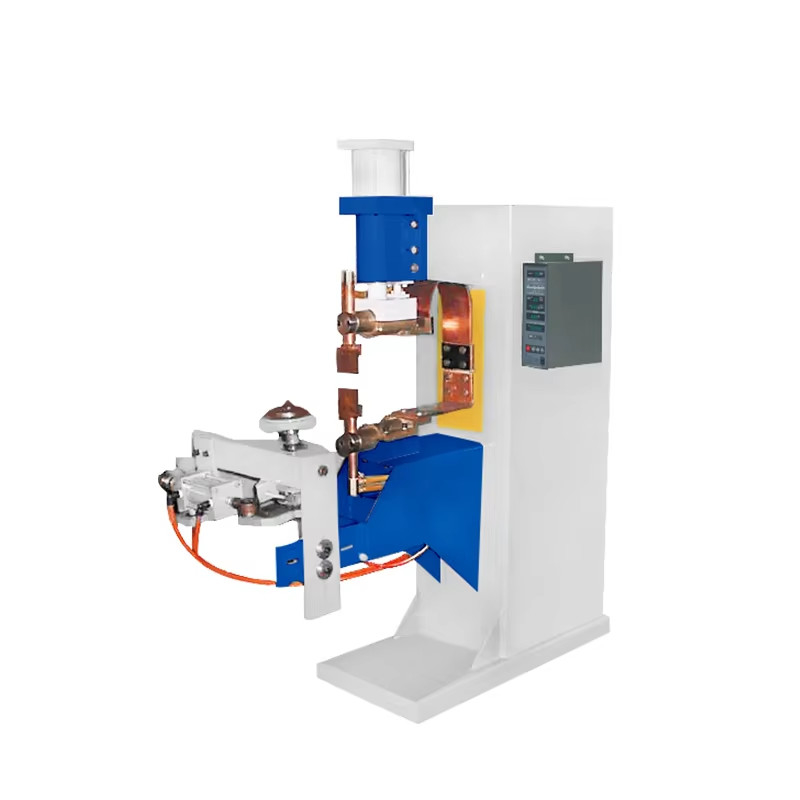

Automatic Middle Ring Welding Machine

This machine is used for welding the middle ring of the fan guard.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

25T Hydraulic Press Machine

This equipment is used for hydraulic forming of inner ring of fan guard.

Hydraulic forming molds

Main technical data Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%). Suitable diameter: 1.0-6.0mm Suitable ring diameter: 60-600mm Main driving power: 1.5kW Linear wire feeding speed: about 30m/min Productivity: 8000-10000 pieces per 8 hours shift Dimension: 1350 x 700 x 1450mm Weight: about 350kg

Edge Trimming Machine

This equipment is used for trimming of fan guard with fast cutting speed, and smooth surface.

The effect after trimming is flat

Technical Details

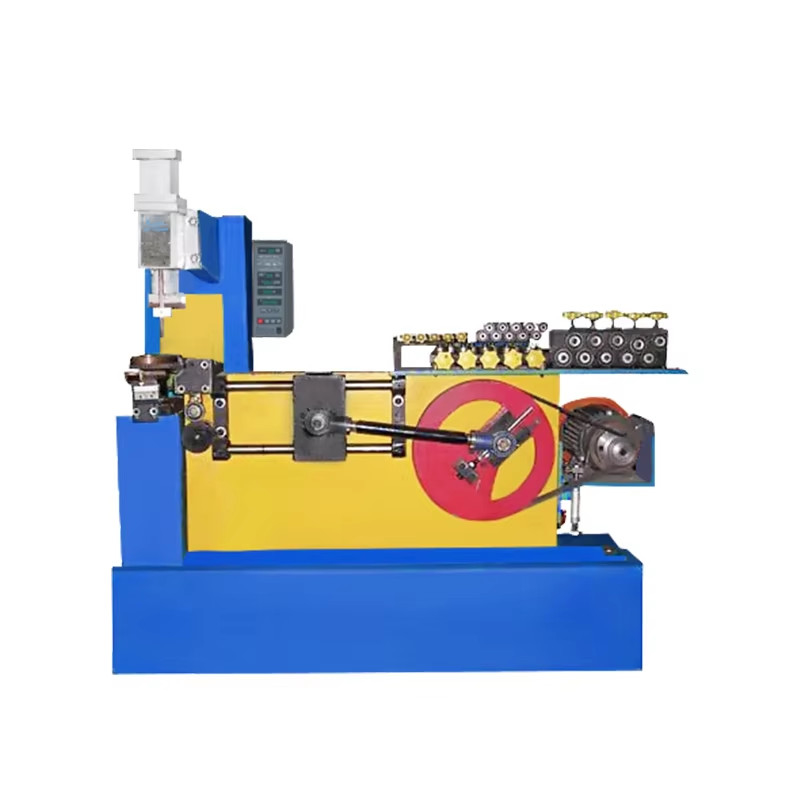

Model	Automatic Ring Making Machine	This machine is special for welding inner ring with radial wires for electric fan guard. By presetting length and quantity of radial wires, the machine can automatically feed, cut, weld, and rotate till all the radial wires are welded with the inner ring.
Suitable Diameter	1.0-0-6.0 mm
Suitable ring diameter	60-600mm
Main Driving Power	1.5 KVA
Linear Wire Feeding Speed	about 30 m/min
Productivity	8000-10000 pieces/8 hours shift
Dimension	1350 x 700 x 1450mm
Weight	350 kg
Characteristics	Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%)

Model	Inner Ring AUto Welding Machine	Middle Ring Welding Machine	Outer Ring Welding Machine	After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.
Suitable Wire Diameter	1.0-1.8 mm	1.5-3.0 mm	3.0-4.0 mm
Size of Fan Guard	8”-20” (by changing flange moulds)	8”-20”	8”-20”
Rated Welding Power	16 KVA	40 KVA	40 KVA
Productivity	about 800-1000 pieces per 8 hours shift (16”, 120 pieces radial wires)	5000-8000 pieces (16”, 120 pieces radial wires)	1000-1500 pieces (16”, 120 pieces radial wires)
Air Consumption	0.15M3/min	0.5M3/min	0.4M3/min
Welding Current	6 A/ welds	10 A/ welds	10 A/ welds
Dimension	1600 x 1000 x 1350mm	1150 x 450 x 1600mm	1200 x 950 x 1550mm
Weight	about 400 kg	about 350kg	about 500 kg

Model	Edge Trimming Machine
Driving Motor Power	0.55 KVA
Productivity	6000-8000 pieces per 8 hours shift
Dimesion	600 x 400 x 800mm
Weight	about 800 kg
