Hwashi Electric Resistance Welding Machine, Metal Round Wire Butt Welding Machine, Key Soldering Butt Welder

Key Soldering Butt Welder

Hwashi Electric Resistance Welding Machine

Metal Round Wire Butt Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

Mass Production In China Steel Wire Butt Welding Machine Sell Like Hot Cakes

Warranty:

12 Months

Condition:

New

Service Life:

8-10 Years

Weight (Kg):

120kg

Power (Kw):

50kw

Dimensions:

1000*1000*1500mm

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi 2025 New AC Pulse Spot Welder Pneumatic Spot Welding Machine for All Kinds of Hardware

Get Best Price

Video

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Stainless Steel Kitchen Sink Manual Sink Seam Welding Machine

Get Best Price

Video

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

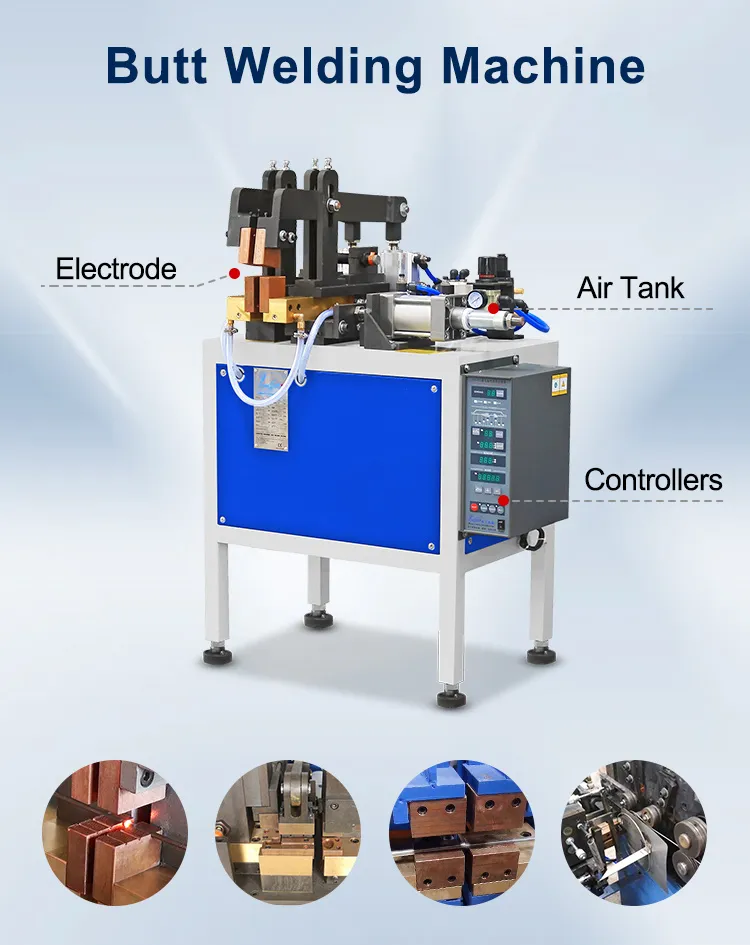

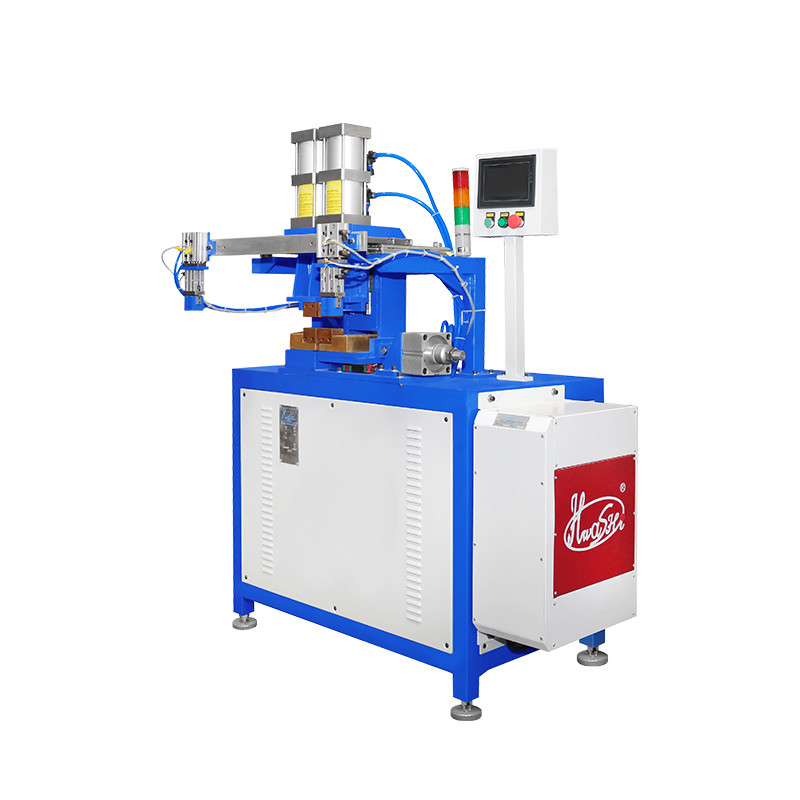

Hwashi Electric Resistance Welding Machine ,Metal Round Wire Butt Welding Machine,Key Soldering Butt Welder

Mass Production in China Steel Wire Butt Welding Machine Sell Like Hot Cakes

Product description

Under the operation of transformer, Cu-Al tube butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

No.	Item	Parameters
1	Input Power	50KVA
2	Input Voltage	380V Single-phase 50Hz
3	Input Current	135A
4	Output Voltage	AC5.6V
5	Max Short Circuit Current	21000A
6	Welding Models	16 types
7	Welding Cylinder	¢50x2-80mm
8	Pushing Cylinder	¢80-80mm
9	Dimension (LWH)	1000x1000x1500mm
10	Weight	120kg
