Name: Single Head Capacitor Discharge Spot Welding Machine for Stainless Steel Non-stick Pot
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-C-2K
Price: 14,000.00 USD
Availability: InStock

Home > products > Spot Welding Machine >

Single Head Capacitor Discharge Spot Welding Machine for Stainless Steel Non-stick Pot

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL-C-2K

Request A Quote

Product Details

Model:

WL-C-2K

Rated Power (KVA):

Applicable Material:

Stainless Steel, Carbon Steel, Aluminum, Metal

Max Short Circuit Current (KA):

Electrode Force (KG):

100

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

30-60 days

Payment Terms

T/T,L/C

Supply Ability

10 sets/month

Hwashi 2025 New AC Pulse Spot Welder Pneumatic Spot Welding Machine for All Kinds of Hardware

Get Best Price

Video

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Stainless Steel Kitchen Sink Manual Sink Seam Welding Machine

Get Best Price

Video

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

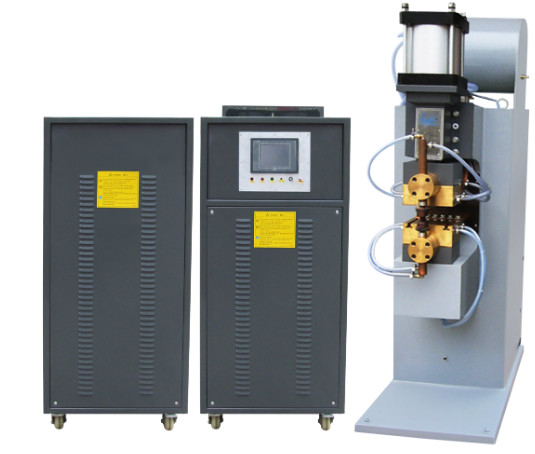

Single Head Capacitor Discharge Spot Welding Machine for Stainless Steel Non-stick Pot

Horizontal capacitor discharge spot welding machine adpot Japan Panasonic capacity to store energy and relaese instantaneous current. It is especially good for welding stainless steel products, like pan ,pot,strainer and other cookware.

1. The product will be fixed on the locating rotary table which is driven by DC governor motor. Use pulse width for speed adjusting with stable performance.
2. The position of rotary table could be precisely adjusted via rotray encoder. With this function, the machine could do continuous welding or staggered welding according to the preset program in any position of the fixed circle.

Features1. Wide application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.
2. Firm and beautiful: Firm welding; no black coating on welding spot so no need of polishing; Especially suitable for those products which have high standard of beautiful outlook requirement.
3. Electricity and energy saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the identical welding force frequency machine, it uses only 1/7 to 1/10 of the power. With a low cost.

Applicable Area

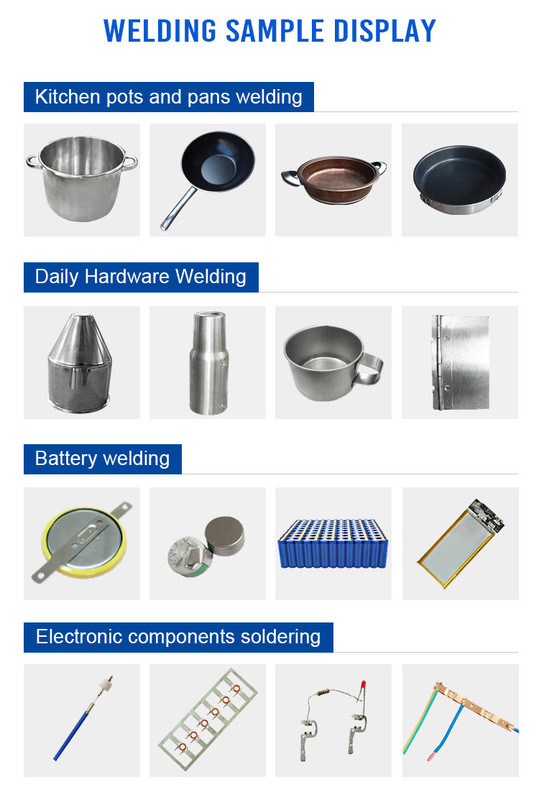

Suitable for welding Kitchen utensils, automobile manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

Capacitor discharge spot welding machine is a kind of electrical energy storage spot welder, which is used to charge the capacitor after rectifier rectification of AC power, and then the stored electric energy is converted into a low electric voltage, and the energy is relatively concentrated and stable pulse current, then the metal is fused through the resistance heat generated at the contact point of the welding workpiece.

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price

Features of The Capacitor Discharge Spot Welding Machine
1.The requirements for the power grid are low and do not affect the power grid.
2.The welding process is short, the instantaneous current is high, and the heat affected zone is small.
3.The water cooling circulation system helps to effectively reduce the consumption of electrodes and transformers.
4.The welding surface oxidation and deformation is small, no black coating, and no grinding process is required after welding.

Model	WL-C-2K
Input Power (V/φ)	220/1
Rated Power (KVA)	2
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	1
Electrode Force (KG)	100
Electrode Stroke (MM)	50
Dimension(LWH)	545mm550mm1250mm
Warranty	1 years
