Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product

Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE

Model Number:

WL-FS-75K

Contact Us

Request A Quote
Product Details
Model:
WL-FS-75K
Welding Diameter:
50-800mm
Input Power:
100KVA
Usage:
Seam Welding Machine
Weight (kg):
400KG
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
30-60 days
Payment Terms
T/T,L/C
Supply Ability
10 sets/month
Product Description
Hwashi Customized high-power products Seam/Roll Welding Machine,Can be customized according to the product

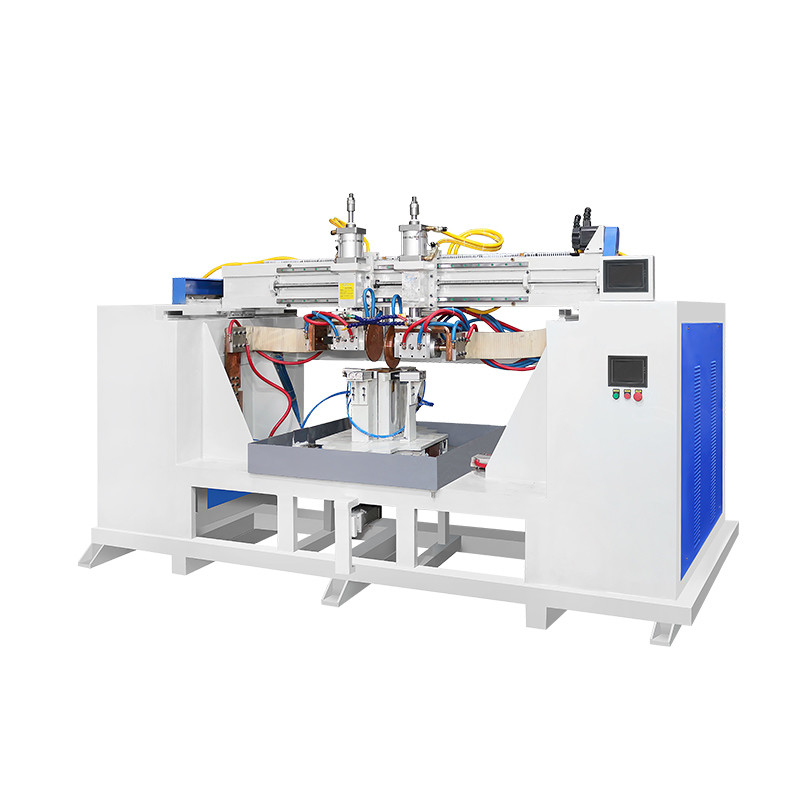

Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product 0

Product Description
The Automatic Roll-Round Welding and Forming Equipment is an integrated advanced system designed to achieve automatic forming and welding operations on cylindrical workpieces. By combining roll-round forming and welding processes, this equipment significantly enhances production efficiency while ensuring high-quality finished products.
1. Automated Forming: The equipment features automatic roll-round forming capability, enabling precise and consistent forming of cylindrical workpieces, reducing manual labor and improving operational efficiency. 2. High-Precision Welding: Equipped with advanced high-precision welding technology, the equipment ensures accuracy and consistency during the welding process, guaranteeing the welding quality of the finished products.

The Automatic Roll-Round Welding and Forming Equipment seamlessly integrates forming and welding processes, providing production lines with an efficient and precise solution. Its automation features and integrated design make it an ideal choice for achieving high output and top-quality finished products.

Product Features

1. Seam welding machine is to use the electrode wheel to pressurize the welding parts while the electrification, using the contact resistance between the electrodes to generate the joule heat instant melting metal under the pulse action to achieve the goal of seam welding. No need to add any solder, high efficiency and low cost. Easy to achieve automatic welding. 3. Welding speed does not change due to wear of the welding wheel. The working process of welding machine is automatic, with high degree of automation and productivity. 3. It is the most ideal equipment in the field of solar water heater, water tank, oil tank, pipe, gas storage tank, instrument case and so on.
Application
ApplicationIt is widely applied to welding thermosta, battery nickel belt, oil heater, power capacitor, automobile shock absorber, bicycle wheel rim, sieve basket, water pump, can and barrel, etc.

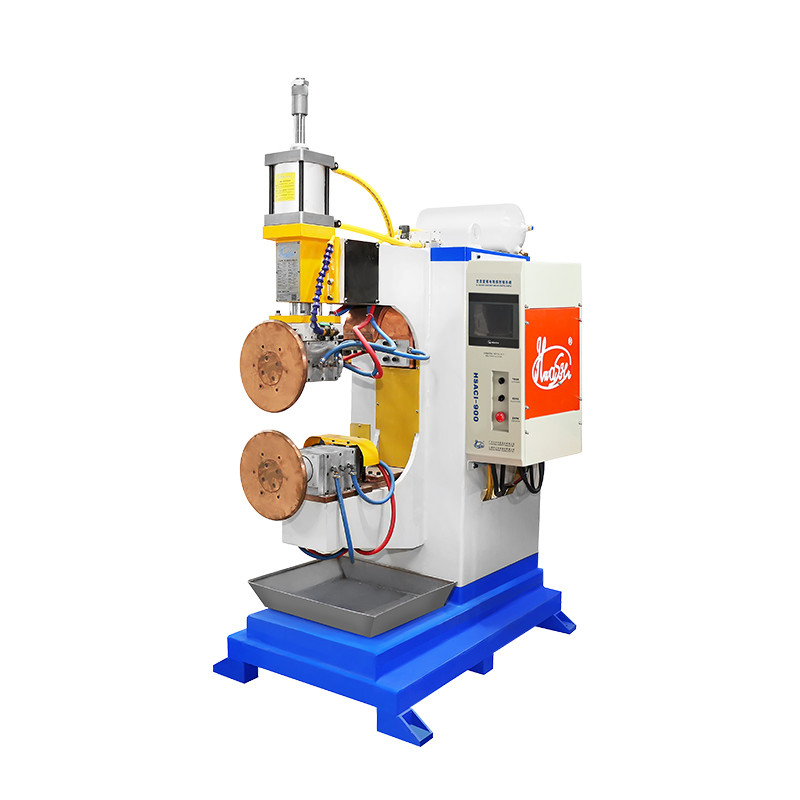

Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product 1

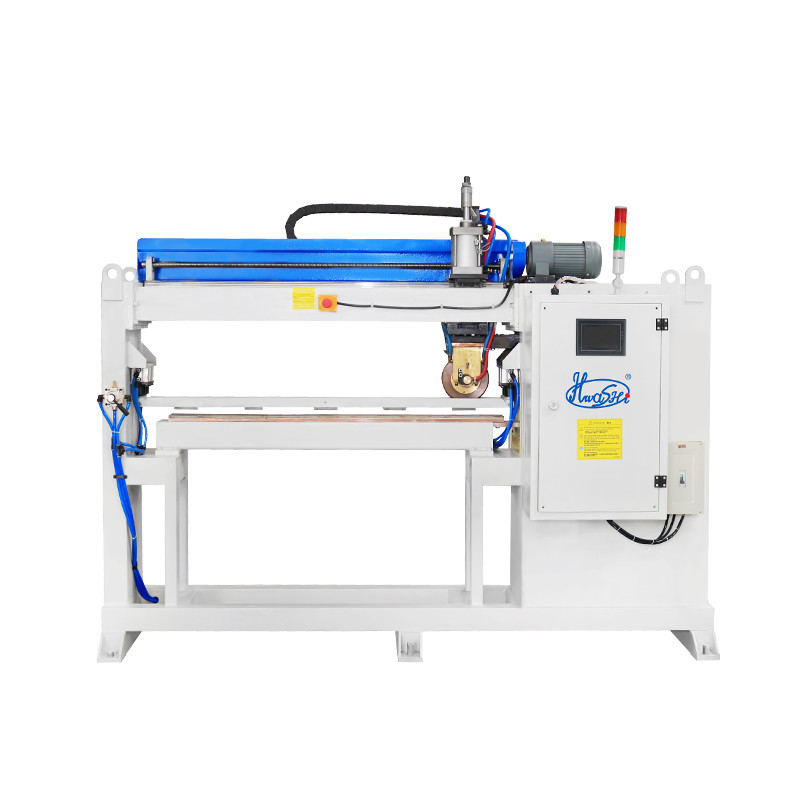

Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product 2

I

Techincal parameters
Input power
380V,2 Phase,50/60Hz
Rated capacity
50KVA
Welding capacity (mild steel plate)
1.0mm+1.0mm
Cooling water flow
15L/min
Maximum electrode pressure
3900N
Electrode travel
60mm
Temporary load rate
40%
Package volume
1200*1100*1900mm
weight
750kg
Model
WL-FS-75K
WL-FS-100
WL-FS-125
WL-FS-160
WL-FS-200
WL-FS-250
Rated Capacity KVA
75
100
125
160
200
250
Voltage V
380*2
380*2
380*2
380*2
380*2
380*2
Duty Cycle Rate%
50
50
50
50
50
50
No Load Voltage V
1.08-7.02
1.12-7.38
1.26-8
1.3-8.5
2.2-9.0
1.3-9.7
Max. Welding Thickness mm
1.2+1.2
1.5+1.5
1.8+1.8
2+2
2.5+2.5
2.5+3
Upper Wheel Stroke mm
20-80
20-80
30-100
30-100
30-100
30-100
Welding Speed m/min
0.6-4
0.5-3.2
0.5-2.8
0.5-1.5
0.5-1.2
0.5-1.2
Max. Pressure KN
6.3
6.3
8.6
8.6
8.6
8.6
Compressed Air Mpa
0.5
0.5
0.6
0.6
0.6
0.6
Cooling Water Consumption L/h
820
960
1080
1080
1080
1080

Hwashi Large Power Seam Welding Machine Roll Weld Customized According to the Product 14
