Name: Hwashi Customized 380V Double Station Fuel Tank Making Machine,Seam/Roll WeldingMachine for Tank
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS-75K
Price: 14,000.00 USD
Availability: InStock

Home > products > Spot Welding Machine >

Hwashi Customized 380V Double Station Fuel Tank Making Machine,Seam/Roll WeldingMachine for Tank

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL-FS-75K

Request A Quote

Product Details

Model:

WL-FS-75K

Welding Diameter:

50-800mm

Input Power:

100KVA

Usage:

Seam Welding Machine

Weight (kg):

400KG

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

30-60 days

Payment Terms

T/T,L/C

Supply Ability

10 sets/month

Hwashi 2025 New AC Pulse Spot Welder Pneumatic Spot Welding Machine for All Kinds of Hardware

Get Best Price

Video

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Stainless Steel Kitchen Sink Manual Sink Seam Welding Machine

Get Best Price

Video

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

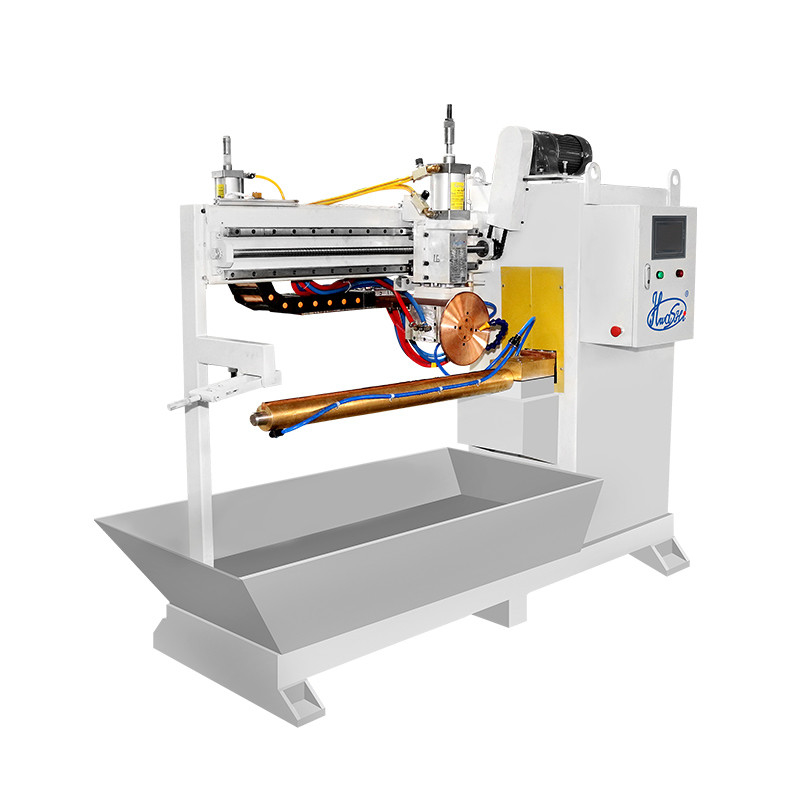

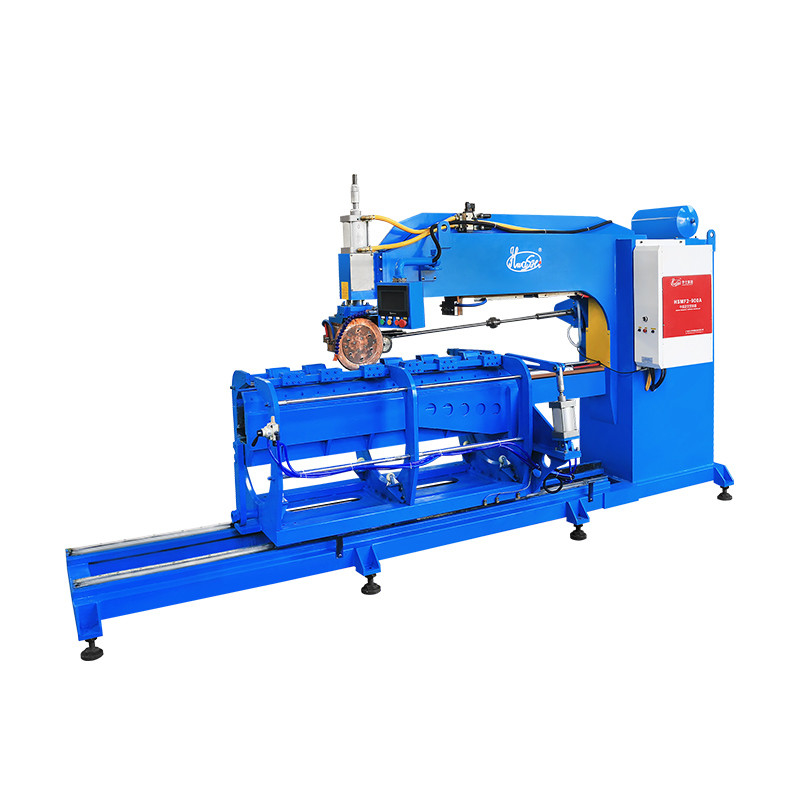

HWASHI Customized 380V Double Station Fuel Tank Making Machine, Seam/Roll Welding Machine for Tank

Product Description

Leakage proof double side circular seam welding machine is the evolution of spot welder. The equipment adopts medium frequency inverter technology, and the stable output current makes the welding current more stable. The welding current has no blank heating zone, the heat is concentrated and the heat affected zone is small. Balanced three-phase power grid, no pollution to the power grid, high power factor, energy saving, can store 101 welding specifications, programmable 3 section heating - preheating, welding, tempering welding programmer. Leakage proof double side circular seam welding machine uses touch screen to set welding current, welding time, welding speed, etc. The welding pressure is set through the pressure reducing valve.

Product Features

Composition of Leakage proof double side circular seam welding machine

1. Power Source 2: Adopt medium frequency inverter welding source. Single power source is 250KVA. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.

2. Welding Wheel Driving System: design to use three-phase motor with transmission device to drive the upper wheel. The upper and lower welding wheel pressing device friction will drive the welding work piece to rotate. The rotating speed can be step less adjusted via frequency converter.

3. Electric Conduction System: Adopt the traditional silver tile conduction device. Large transmission friction and contact resistance. Weak conductivity and high maintenance cost. The conduction device adopts the Germany technology. Use the mercury as the conducting medium and special air locking as the connection for transmission shaft and base. Good transmission performance and conductivity. Effectively prevent the tedious maintenance of transmission methods. Welding wheel adopts the alloy copper product from Japan which is of high rigidity and good conductivity.

4. Welding Electrode: It adopts embedded electrode with superior conductive performance red copper on electric conduction position. It adopts high hardness Beryllium copper cobalt for the welding electrode. Welding wheel diameter can be designed according to welding position ranging from 200mm to 250mm.

Application

ApplicationIt is widely applied to welding thermosta, battery nickel belt, oil heater, power capacitor, automobile shock absorber, bicycle wheel rim, sieve basket, water pump, can and barrel, etc.

Input power	380V,2 Phase,50/60Hz
Rated capacity	50KVA
Welding capacity (mild steel plate)	1.0mm+1.0mm
Cooling water flow	15L/min
Maximum electrode pressure	3900N
Electrode travel	60mm
Temporary load rate	40%
Package volume	120011001900mm
weight	750kg

Model	WL-FS-75K	WL-FS-100	WL-FS-125	WL-FS-160	WL-FS-200	WL-FS-250
Rated Capacity KVA	75	100	125	160	200	250
Voltage V	380*2	380*2	380*2	380*2	380*2	380*2
Duty Cycle Rate%	50	50	50	50	50	50
No Load Voltage V	1.08-7.02	1.12-7.38	1.26-8	1.3-8.5	2.2-9.0	1.3-9.7
Max. Welding Thickness mm	1.2+1.2	1.5+1.5	1.8+1.8	2+2	2.5+2.5	2.5+3
Upper Wheel Stroke mm	20-80	20-80	30-100	30-100	30-100	30-100
Welding Speed m/min	0.6-4	0.5-3.2	0.5-2.8	0.5-1.5	0.5-1.2	0.5-1.2
Max. Pressure KN	6.3	6.3	8.6	8.6	8.6	8.6
Compressed Air Mpa	0.5	0.5	0.6	0.6	0.6	0.6
Cooling Water Consumption L/h	820	960	1080	1080	1080	1080
