Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Water Tank Welding Production Line

Automatic Sink Rolling Wheel Grinding Machine

Water Tank Grinding Machine

Place of Origin:

Guangdong China

Brand Name:

HWASHI

Certification:

CE, CCC

Model Number:

WL-AT-PM1200

Request A Quote

Product Details

Name:

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Grinding Wheel Diameter:

50mm

Abrasive Belt Width:

50mm

Abrasive Belt Rotating Speed:

1400-2800mm/min (adjustable)

X Axle Moving Range:

≥1220mm

Y Axle Moving Range:

≥620mm

Z Axle Moving Range:

≥250mm

A Axle Moving Range:

360 Angle

Rated Air Pressure:

0.8MPa

Gas Consumption:

1m3/h

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $10,000-30,000 / Set

Packaging Details

wooden packing

Delivery Time

45 days

Supply Ability

50 Set/Sets per Month

160KVA Rated Capacity Seam Welding Machine 50-200A for 100mm-1000mm Welding Diameter

Get Best Price

Video

Hwashi CNC Sink Edge Grinding and Polishing Machine

Get Best Price

Video

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Get Best Price

Video

PLC Data Control Sink Welding Machine For Kitchen Sink / Hotel Sink / Restaurant Sink Production

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)

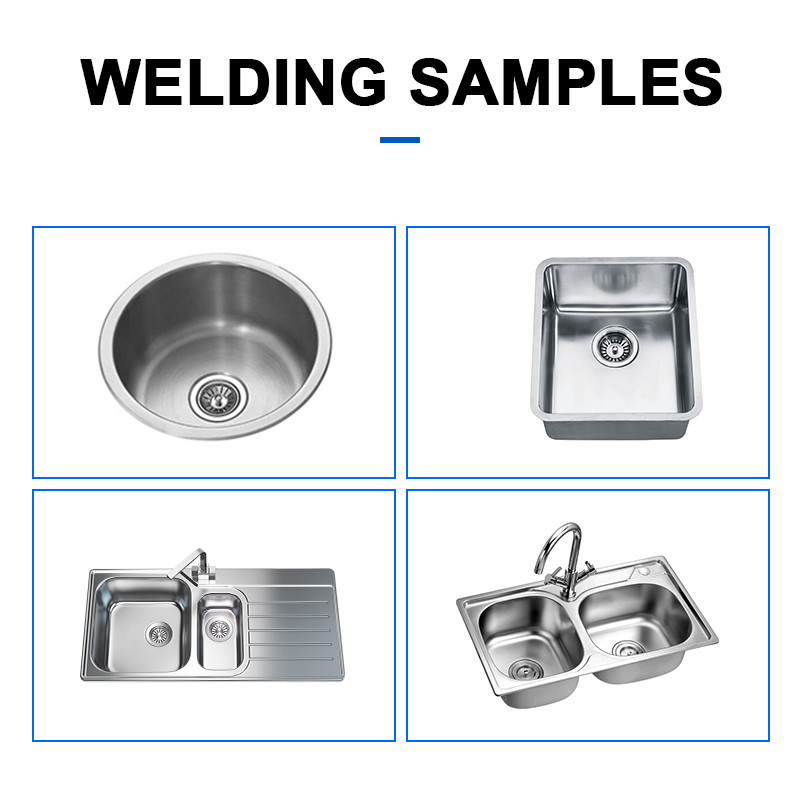

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

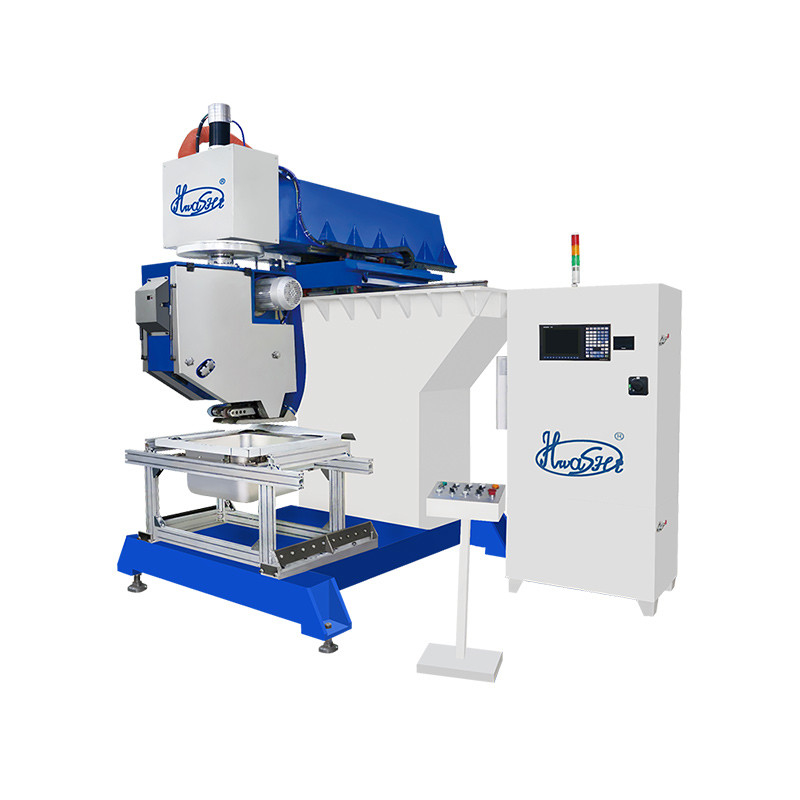

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

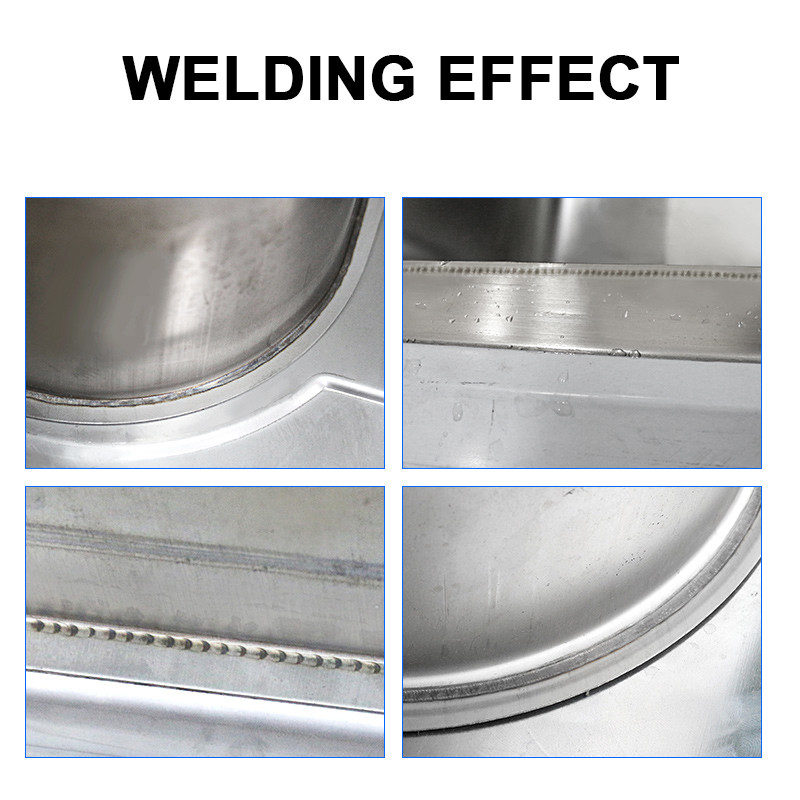

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
