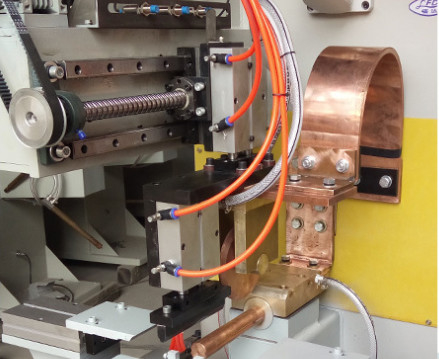

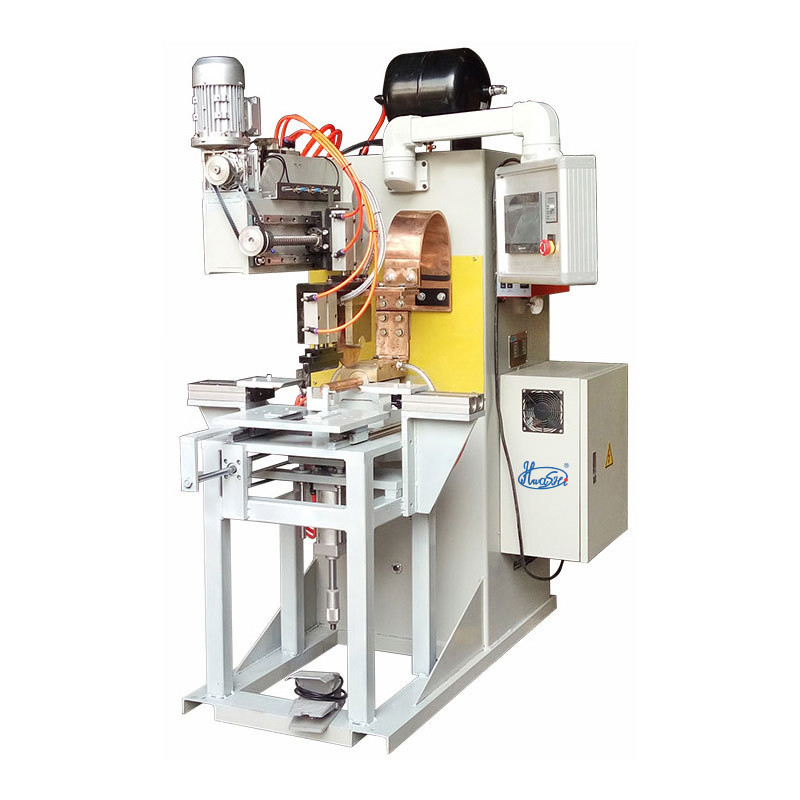

HWASHI Seam Welding Machine for Various Applications 75KVA 26500A Stable and Welding Strong and Consistent Weld Seams
Introducing the HWASHI Seam Welding Machine, a high-performance, versatile welding equipment engineered to meet the diverse needs of modern manufacturing. With a rated capacity of 75KVA and an impressive welding current of 26500A, this machine stands out as a reliable powerhouse for various industrial applications.
SPECIFICATION
|
Model
|
WL-FS-AC75K
|
WL-FS-MF75K
|
WL-FS-MF100K
|
|
Input Voltage
|
Three-phase 380V±10% 50Hz
|
Three-phase 380V±10% 50Hz
|
|
Input Power
|
75KVA
|
100KVA
|
|
Rated Input Current
|
115A
|
150A
|
|
Rated Duty Cycle Rate
|
50%
|
50%
|
|
Max Secondary Floating Voltage
|
DC9.75V
|
DC11.6V
|
|
Secondary Max Short Circuit Current
|
26500A
|
28000A
|
|
Welding Transformer Insulation Grade
|
Grade F
|
Grade F
|
|
Program Segment Time Adjustment Range
|
0～9999SEC
|
0～9999SEC
|
|
Controller Heat Adjustment Range
|
15%～99%
|
15%～99%
|
|
Upper Welding Wheel Diameter
|
280mm
|
|
Lower Welding Wheel Diameter
|
40mm
|
|
Welding Wheel Width
|
3mm
|
|
Welding Wheel Rotating Speed
|
800-4000mm/min (adjustable)
|
|
Upper Welding Wheel Throat Depth Distance
|
400mm
|
|
Lower Welding Wheel Throat Depth Distance
|
400mm
|
|
Upper and Lower Welding Wheel Distance
|
50mm
|
|
Air Pressure
|
0.6MPa
|
|
Gas Consumption
|
10m3/h
|
|
Water Pressure
|
0.2Mpa
|
|
Water Temperature
|
10-20℃
|
|
Cooling Water Consumption
|
800L/H
|
Woven Wire Mesh Filter Cartridge Applications
Woven wire mesh filter cartridge is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurities and foam mixed in the gas and liquid. 1.Filtration of air: air filters, vacuum filters, filtration of corrosive gases, etc. 2.Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc. 3.Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc. 4.Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc. 5.Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, medicine making, electronic field, etc.
User-Friendly Design
The HWASHI Seam Welding Machine features a user-friendly interface that makes it easy to operate, even for novice users. Its intuitive controls and clear display allow you to adjust the welding parameters quickly and easily, while its automatic welding function ensures consistent results with minimal operator intervention. Additionally, the machine's compact and lightweight design makes it easy to move and install, saving you valuable space and time.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
