Name: Hwashi Automatic Roll-Round Seam Welding Machine for Woven Wire Mesh Filter Cartridges with Airtight Seams and 50% Fewer Processing Steps
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-AT-PM1200
Price: 20.00 USD
Availability: InStock

Home > products > Sink Welding Machine >

Hwashi Automatic Roll-Round Seam Welding Machine for Woven Wire Mesh Filter Cartridges with Airtight Seams and 50% Fewer Processing Steps

automatic roll-round seam welding machine

woven wire mesh filter cartridge welder

sink welding machine with airtight seams

Place of Origin:

Guangdong China

Brand Name:

HWASHI

Certification:

CE, CCC

Model Number:

WL-AT-PM1200

Request A Quote

Product Details

Name:

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Grinding Wheel Diameter:

50mm

Abrasive Belt Width:

50mm

Abrasive Belt Rotating Speed:

1400-2800mm/min (adjustable)

X Axle Moving Range:

≥1220mm

Y Axle Moving Range:

≥620mm

Z Axle Moving Range:

≥250mm

A Axle Moving Range:

360 Angle

Rated Air Pressure:

0.8MPa

Gas Consumption:

1m3/h

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $10,000-30,000 / Set

Packaging Details

wooden packing

Delivery Time

45 days

Supply Ability

50 Set/Sets per Month

Hwashi Automatic Seam Welding Machine with Adjustable Welding Wheel Speed and 360° Rotational Capability for High-Strength Joints

Get Best Price

Video

Hwashi CNC Sink Welding Machine with CNC Precision, Water Cooling, and PLC Control System for Italian Kitchen Sinks

Get Best Price

Video

Hwashi CNC Sink Welding Machine with 50-200A Welding Current, PLC Control System, and Water Cooling for Italian Kitchen Sinks

Get Best Price

Video

Hwashi Sink Welding Machine for Stainless Steel Kitchen Utensil Seam Welding Delivering Automated Precision

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

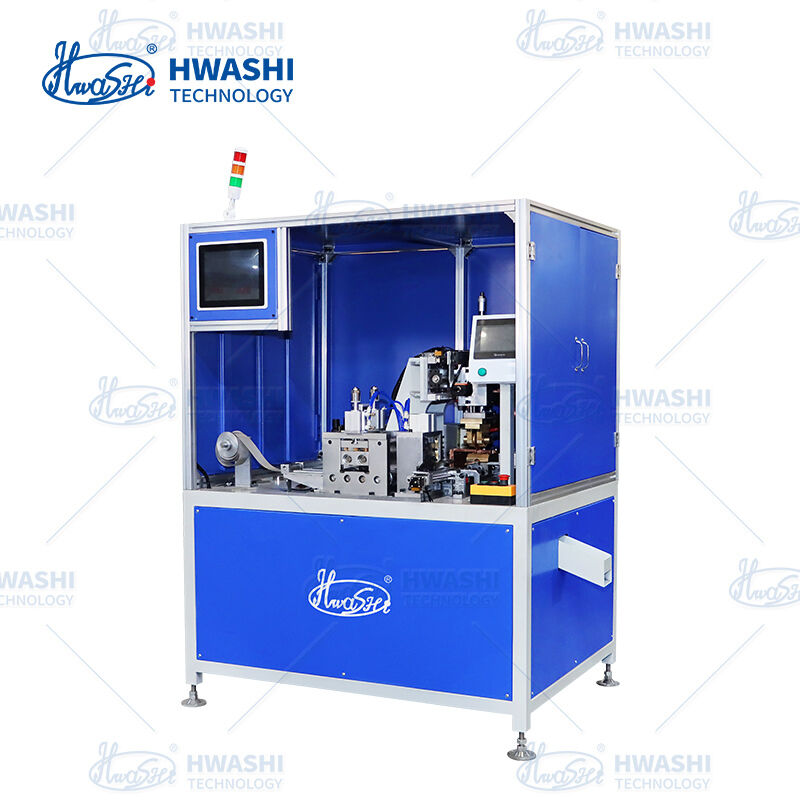

Hwashi Automatic Roll-Round Seam Welding Machine for Woven Wire Mesh Filter Cartridges

Automatic Filter Mesh Roll-Round Welding Machine

One machine. Two operations. Zero rework.

Hwashi's Automatic Filter Mesh Roll-Round Welding Machine combines precision roll-forming and continuous seam welding into a single automated process — flat wire mesh goes in, perfectly round and airtight filter cartridges come out. No manual rolling, no part transfer between stations, no seam misalignment.

Why manufacturers choose this machine:

50% fewer processing steps — Roll and weld in one cycle, eliminate the separate forming station
Consistent roundness — Precision forming rolls produce cylinders with tight diameter tolerance every time
Airtight seams — Overlapping weld nuggets create gas-tight, liquid-tight joints that pass leak testing
Gentle on mesh — Controlled MFDC energy and calibrated roll pressure prevent mesh deformation and burn-through
15-min changeover — Quick-change tooling + 101 stored programs = fast switches between cartridge sizes
24/7 capable — Forced water cooling on transformer and welding wheels for non-stop production

Working Principle

The machine performs two operations in sequence within a single cycle:

Feeding — Servo-driven system feeds pre-cut mesh sheet or continuous strip to the exact required length
Roll-Forming — Precision forming rolls bend the flat mesh into a smooth cylinder with consistent diameter

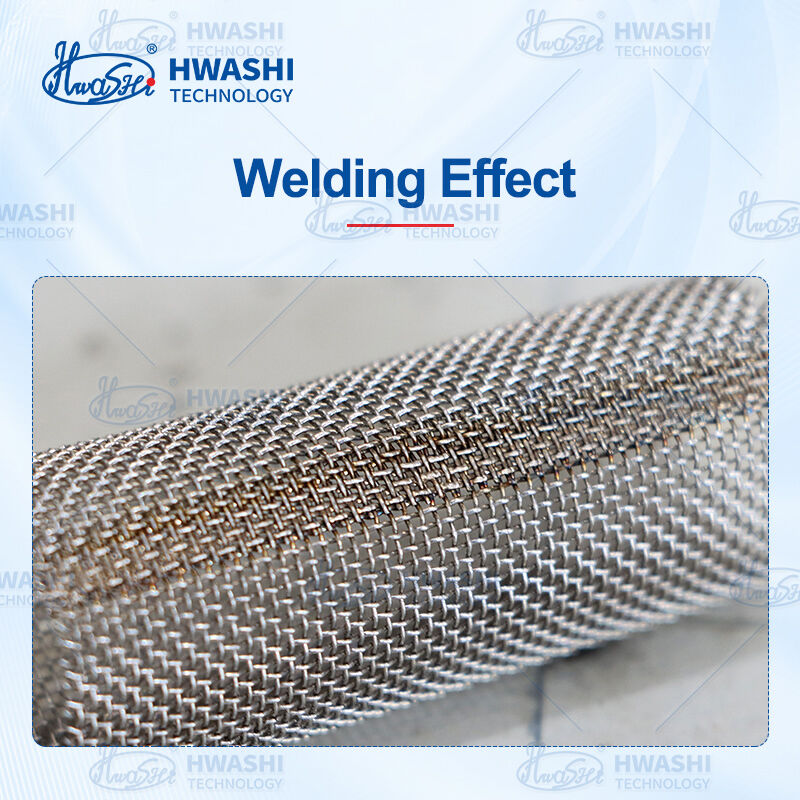

Seam Welding — Continuous roller seam welding creates an overlapping series of weld nuggets along the longitudinal seam as the cylinder rotates
Discharge — Finished cartridge ejects automatically

The entire process is controlled by PLC with touch screen interface. No manual intervention between steps.

Key Features

Integrated Roll-and-Weld Design

Separate rolling and welding machines mean double the labor, double the handling, and misalignment between operations. This machine performs both in one continuous pass — the mesh is formed and welded without ever leaving the workstation, guaranteeing perfect seam alignment.

MFDC Inverter Power Supply

Medium-frequency DC delivers faster current rise, more concentrated heat, and 30%+ energy savings vs. conventional AC. Critical for thin wire mesh where excessive heat input distorts mesh openings or burns through wires. Power factor: 0.85–0.90.

Variable Frequency Stepless Speed Control

Welding speed adjusts smoothly from 0.3 to 1.5 m/min to match different mesh types, wire gauges, and material thicknesses. No gear changes, no stepped adjustments — just dial in the speed and run.

Forced Water Cooling

Closed-loop cooling system for welding transformer, thyristors, and welding wheels. Prevents thermal drift during long production runs and extends component service life. Stable weld quality from the first part to the last.

Programmable Welding Parameters

Store up to 101 welding programs, each with custom settings for current, speed, roller pressure, and overlap ratio. Switch between programs instantly on the touch screen — no trial-and-error setup when changing cartridge models.

Horizontal & Vertical Welding Wheel Options

Welding wheel orientation selectable based on cylinder diameter and production layout. Horizontal wheels for standard cylindrical cartridges; vertical wheels for specific geometries or inline integration.

Technical Specifications

Item	Specification
Input Voltage	Three-phase 380V ±10%, 50/60Hz
Rated Capacity	63 / 100 / 150 / 200 KVA (selectable)
Duty Cycle	50%
Max. Secondary Current	Up to 30,000 A
Welding Method	Continuous roller seam welding
Welding Direction	Longitudinal (horizontal or vertical wheel)
Mesh Thickness	0.2–3.0 mm
Cylinder Diameter	50–500 mm (customizable)
Cylinder Length	50–1500 mm (customizable)
Welding Speed	0.3–1.5 m/min (stepless)
Feeding Accuracy	±0.5 mm
Stored Programs	101
Pneumatic Supply	0.4–0.6 MPa
Cooling	Water-cooled (closed loop)
Safety	Light curtains, interlocks, E-stop, overload protection
CE Certification	Yes
