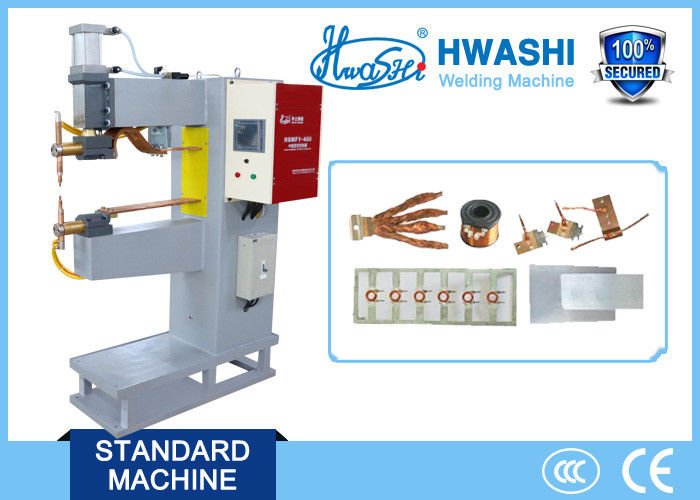

Name: 1000Hz Medium Frequency Spot Welding Machine for Aluminum Steel with Energy Saving DC Spot Welder
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-MF-10K
Price: 14,000.00 USD
Availability: InStock

Home > Products > Spot Welding Machine >

1000Hz Medium Frequency Spot Welding Machine for Aluminum Steel with Energy Saving DC Spot Welder

dc spot welder

spot welding tool

1000Hz Medium Frequency Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-10K

Request A Quote

Product Details

Product Name:

1000Hz Medium Frequency Spot Welding Machine , Aluminum Steel DC Spot Welder

Application:

Welding For Aluminum And Copper Products

Size:

480x900x1600*mm

Rated Power:

10kva

Condition:

New

Warranty:

12 Months

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Duty Cycle Rate:

20%

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Get Best Price

Video

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified

Get Best Price

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

Get Best Price

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

1000Hz Medium Frequency Spot Welding Machine

Aluminum Steel DC Spot Welder with advanced inverter technology for precision welding applications.

Product Overview

The MF DC Inverter Spot Welder is an advanced welding system that converts three-phase power supply through specialized inversion to 1000Hz AC voltage. This is transmitted to a medium frequency transformer where current is rectified to supply DC welding current. The technology significantly reduces iron core material energy requirements by increasing transformer frequency from standard 50/60Hz to 1000Hz. The commutation diode in the transformer subloop converts electrical energy to DC power for welding, dramatically improving inductance coefficient while minimizing production costs.

Technical Specifications

Items	Specification
Display	5 Inches Blue Display Screen
Rated Power	10KVA
Input Voltage	AC 380V, 50Hz
Duty Cycle Rate	20%
Maximum Short Circuit Current	25000A
Inverter Frequency	1000Hz
Welding Cycle Period	11
Welding Pulse Times	3
Current Slow Rise And Down Control	Yes
Stored Welding Models	20
Throat Depth	300mm
Cylinder Size	￠100x100mm

Key Features

Energy Saving: Reduces electrical consumption compared to low frequency systems, with transformers of same weight outputting more energy
Efficient Design: One medium frequency transformer replaces multiple low frequency transformers in semi-automatic machines
Improved Power Factor: Reduces production costs while enhancing efficiency
Reduced Circuit Interference: DC welding current prevents interference from induction or magnetic materials in secondary winding
Balanced Power Supply: Three-phase energy storage system ensures stable load distribution
Grid Fluctuation Adaptation: Energy storage capability compensates for power grid variations and voltage drops
Precision Control: Advanced parameter analysis for more precise and rapid current control
Reliable Process: DC welding delivers superior results for most resistance welding metals
Traditional Technology: Medium frequency system prevents damage from silicon controlled breakdown
Reduced Operation Costs: Energy savings per spot welding and reduced welding cycles

Applications

Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, and more.

Competitive Advantages

Leading Brand: HWASHI has been a top resistance welding industry brand in China for 20 years with factory direct pricing
Customized Service: Design and development of welding machines according to specific requirements
Quality Assurance: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliance, 8-10 year service life
Technical Support: 24-hour email technical support and professional consultation services
Quick Delivery: Just-in-time delivery service for all orders
Customer Focus: Prompt response and commitment to customer satisfaction
