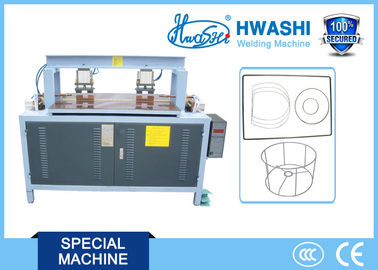

Pneumatic Butt Welding Machinery , AC Dual Butt Welder for Wire Frame

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-B-75K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: Pneumatic Butt Welding Machinery , AC Dual Butt Welder For Wire Frame Application: Welding T Shape Wire / Wire Ring / Square Wire Frame
Size: 900mmX1150mmX1750mm Weight: 450 Kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

butt welder


butt welding equipment

Product Description

Pneumatic Butt Welding Machinery , AC Dual Butt Welder for Wire Frame



1)Adopt new type of Microcomputer controller: it carry out parameters analysis, adjustment and control during the welding process of clamping, welding, upsetting, maintain etc, equipment operation is simple and easy to master.

2)Adopt pneumatic lever-type pressurization, pressurize cylinder, veritcal pressure: more clamping force ensure that workpiece is not slippery when it is welded, welding performance is more stable.

3)Upset forging slide carriage adopt the guidance of double slideway: high precision, good wearability and smooth moving that ensure welding mouth consistency of workpiece.

4)Good forming: simple process of butt resistance welding, small welding shrinkage and little burrs, it is expedient to simplify back process



Butt welding machine is able to place the end face of the work pieces on the opposite place. To utilize the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under the effect of pressure.


This machine could choose the function of three times discharging. As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slideway to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the connecting position.




Input Voltage

Input Power

Secondary Current




16 KW


25 mm



25 KW


25 mm



35 KW


50 mm



50 KW


50 mm



75 KW


50 mm



Butt welding of wire rod of different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm.




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.




          Pneumatic Butt Welding Machinery , AC Dual Butt Welder for Wire Frame 0


                            Pneumatic Butt Welding Machinery , AC Dual Butt Welder for Wire Frame 1


Pneumatic Butt Welding Machinery , AC Dual Butt Welder for Wire Frame 2
