Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-AMF-160K
Contact Us
DESCRIPTION

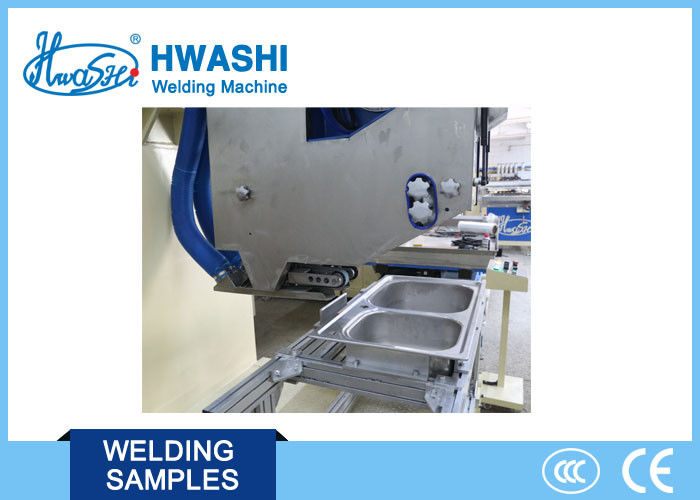

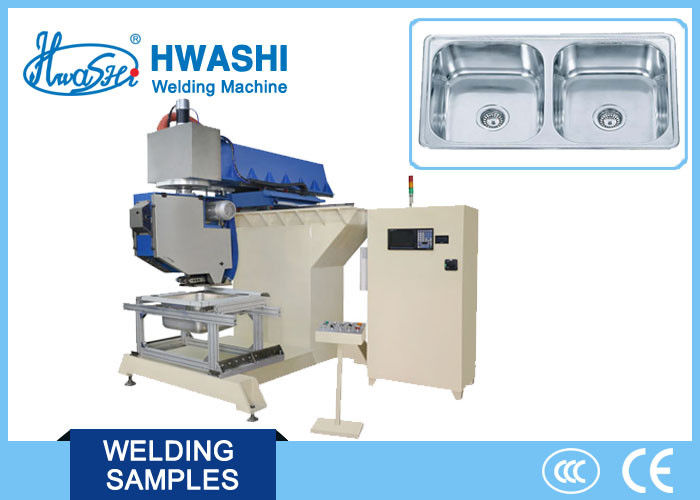

This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.
APPLICATION
Suitable for grinding and polishing of the sink within the range of 1200mmx600mmx230mm. ( can be adjusted according to your product)ized)
SPECIFICATION
Model | WL-AT-PM1200 |
Input Power | Three-phase 380V±10% 50Hz |
Rated Capacity | 10KVA |
Grinding Wheel Diameter | 50mm |
Abrasive Belt Width | 50mm |
Abrasive Belt Rotating Speed | 1400-2800mm/min (adjustable) |
X Axle Moving Range | ≥1220mm |
Y Axle Moving Range | ≥620mm |
Z Axle Moving Range | ≥250mm |
A Axle Moving Range | 360º |
Rated Air Pressure | 0.8MPa |
Gas Consumption |
1m3 |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

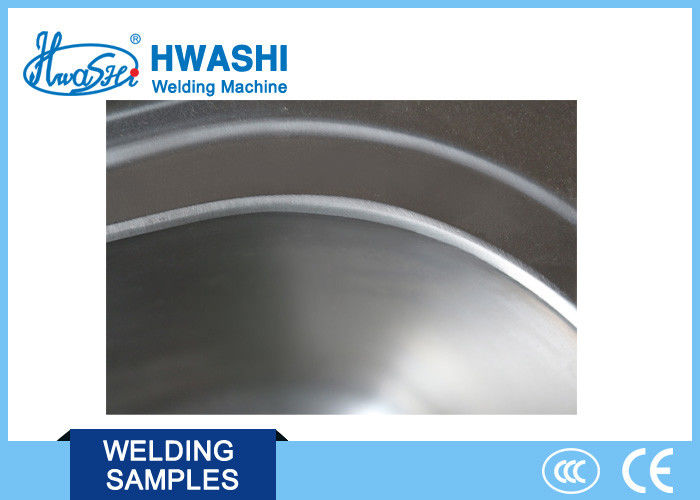

Polishing sink
