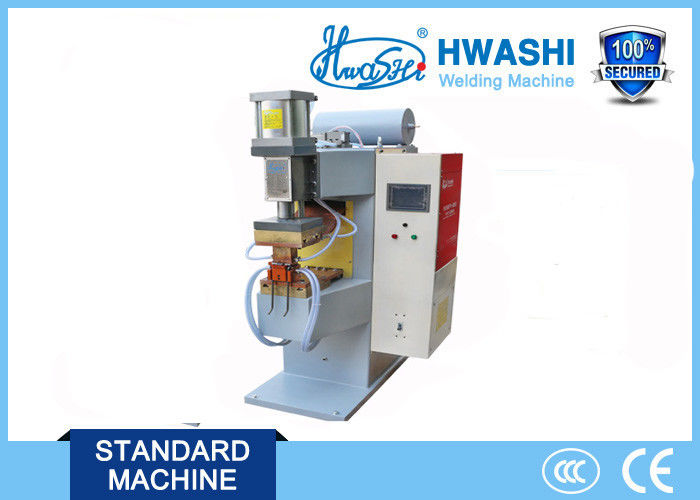

HWASHI Computer Controlled Medium Frequency Spot Welding Tool for Mental Wire

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-25K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: HWASHI Computer Controlled Medium Frequency Spot Welding Tool For Mental Wire Application: Welding For Aluminum And Copper Products,metal
Size: 480x900x1600*mm Weight: 280kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

dc spot welder


spot welding tool

Product Description

HWASHI Computer Controlled Medium Frequency Spot Welding Tool for Mental Wire



          HWASHI Computer Controlled Medium Frequency Spot Welding Tool for Mental Wire 0



                                              HWASHI Computer Controlled Medium Frequency Spot Welding Tool for Mental Wire 1

                 HWASHI Computer Controlled Medium Frequency Spot Welding Tool for Mental Wire 2



1. Reducing operation cost, including saving the energy of each spot welding and reducing the cycle of welding.


2. Saving Energy : Compare with using low frequency, it can help to reduce the consumption of electric energy. The transformer of the same weight could output more energy. It can also be conveniently used with the large automatic welding clamp.


3. In a semi-automatic machine, one medium frequency transformer can replace many low frequency transformers which can help to reduce the parallel connection in secondary circuit.


4. Improve the power factor, reduce the production cost.


5. Reducing interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.


6. To make the power supply unit load balance: MF inverter spot/projection welder adopts the three-phase sources which can store energy.


7. More adaptable to the fluctuation of power grid and voltage drop: a part of the energy has been stored by inverter and been supplied to load. It replaces the way of power supply to load directly from the power grid.


8. More precise and fast control of current: Compare with low frequency system, it is able to analyze more parameters in a more precise way.


9. More reliable process: For most of the applied resistance welding metals, to use DC to weld will help to achieve better effect.


10. The technology of MF system is more traditional and reliable which can prevent the damage results from the breakdown of silicon controlled.







Items Specification
Display 5 Inches Blue Display Screen
Rated Power 25KVA
Input Voltage AC 380V, 50Hz
Duty Cycle Rate 20%
Maximum Short Circuit Current 25000A
Inverter Frequency 1000Hz
Welding Cycle Period 11
Welding Pulse Times 3
Current Slow Rise And Down Control Yes
Stored Welding Models 20
Welding Capability 2*2mm
Cylinder Size ¢100x100mm






Widely used in welding all kinds of metal, Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, etc.





1. HWASHI'S in-house manufacturing capabilities allow fast shipment of special electrodes and tooling.

2. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

3. Prompt Response to Customers: Your satisfaction is the goal we pursue.

4. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

5. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

6. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

7. Quick Delivery: Our company provides just-in-time delivery.

8. Prompt Response to Customers: Your satisfaction is the goal we pursue.




The advantage of this machine is that it helps to greatly reduce the energy of iron core material, as the frequency of welding transformer is promoted from 50/60Hz of mains supply to 1000Hz. Besides, the commutation diode of subloop of transformer could transform the electric energy into DC power which is used to provide power for welding. Under such circumstance, the inductance coefficient of subloop could be improved dramatically and the production cost could be minimized because the inductance coefficient is an important factor that results in energy loss but could almost be ignored in DC welding circuit.
Medium frequency Inverter Spot Welder is an advanced welding equipment. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer so the current is rectified in order to supply DC welding current.
