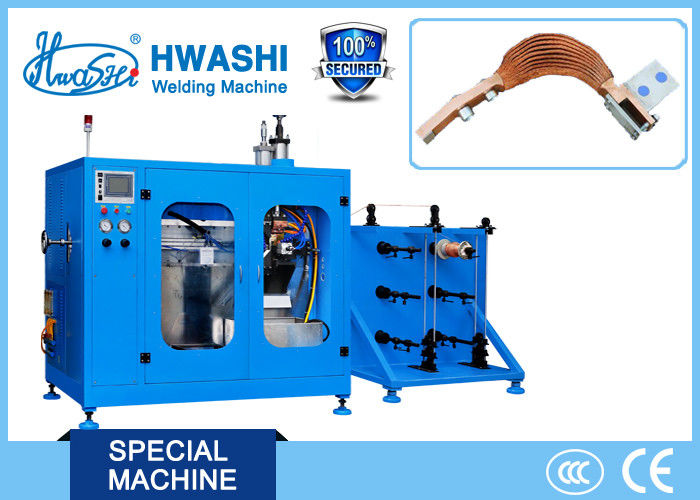

Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-TP-75K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detail Information
Product Name: Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector Application: Welding And Cutting Copper Braided Wire
Size: 2100x1200x2000mm Condition: New
Warranty: 1 Year Standard: CE/CCC/ISO
Service Life: 8-10 Years Welding Power Source: Medium Frequency/ AC Pulse
Weight: 500kg
High Light:

electric welding machine

,

electric welding equipment


Product Description

Electrical Welding Machine , Flat Extension Copper Braided Flexible Wire Connector Spot Welding Machine





DESCRIPTION



This machine is suitable for braided wire welding and cutting , it can achieve automatic welding and cutting wire, which could help to lower lobor force and improve welding efficiency. Generally there will have two shape of braided wire. One is half-round ,one is square. It can be customized according to your requirements,and the cutting length of wire range is 30-300mm. The  welding cross section area can be 1-25sqmm.



You could see below machine picture.



SPECIFICATION



No. Item Parameter
1 Input Voltage 380V single-phase 380V three-phase
2 Rated Power 75KVA 75KVA
3 Output Voltage AC5.2V DC6.3V
4 Max Short Circuit Current 21000A 20000A
5 Welding Models 16 Kinds 101 Kinds
7 Cutting Length 30-300mm
8 Max Welding Forming Dimension 4mm2
9 Min Welding Forming Dimension 1mm2
10 Feeder Movement Speed 0.5m/Sec
11 Welding Cylinder ¢80x2x80mm







































APPLICATION



Welding of braid wire of electrical parts like distribution switch, disconnector, etc. Be able to weld and cut 1 to 4 mm2 of singlet wire, double wire, and three-wire in one of annealed copper wire.



The cutting length could be adjusted freely and the cross-section of connecting wire could be designed as different shapes like semi-circle, square, and hexagon, etc.

Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 0





MATERIAL CONFIGURATION





Item Name Brand Place Of Origin Characteristic
1 Silicon Control SCR Nanche High Precision, Long Service Life.
2 Discharge Control Panel Self-Developed Hong Kong Digital Control, Stable Performance, Low Voltage Compensation
3 PLC Procedure Control Panasonic Japan Stable Control, Calculating Machine, Procedure Modification.
4 Touch Display Screen Panasonic Japan Chinese Display, Inching Touching Control
5 Stay Wire Cylinder Zhicheng China Quick Response, Long Service Life.
6 Main Welding Cylinder Zhicheng China Quick Response, Long Service Life.
7 Air Assembly SANWO South Korea
8 The Blade Fuji Japan High Rigidity, Good Tenacity, Long Service Life.
9 Silicon Steel Sheet   Japan Good Performance Of Magnet And Electrical Conductivity. Less Loss Of Electricity
10 Linear Guideway Fuji Japan Good Motion Performance, High Precision.
11 Linear Bearing Decheng Japan Good Motion Performance, High Precision.




COMPETITIVE ADVANTAGE



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 1



         Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 2

AUTOMATIC COPPER WIRE FEEDING SYSTEM

   Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 3A

AUTOMATIC WELDING SYSTEM

Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 4

          Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 5Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 6

AUTOMATIC CUTTING SYSTEM

Electrical Welding Machine For Flat Extension Copper Braided Flexible Wire Connector 7
