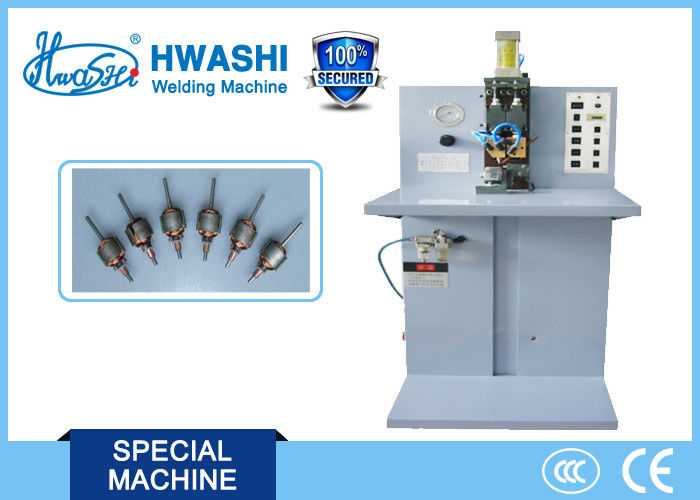

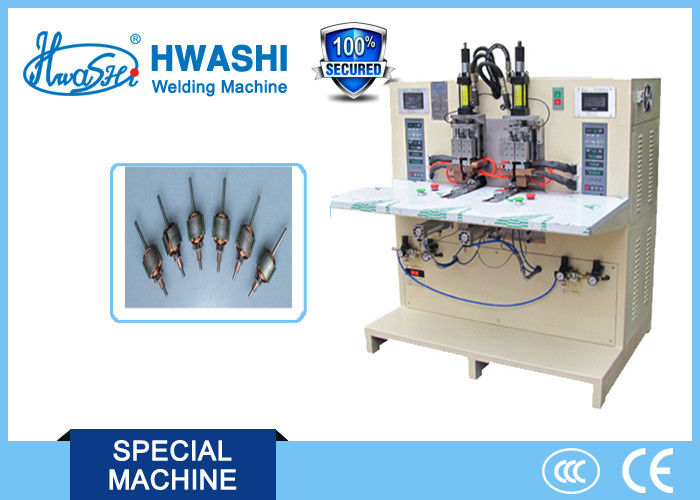

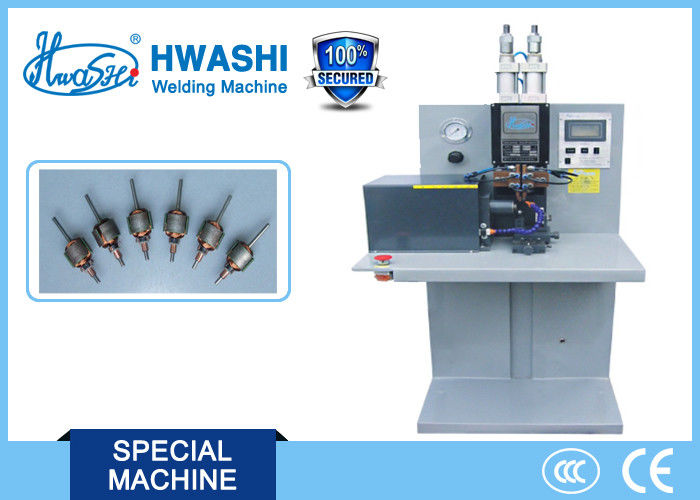

Automatic Fixture Electrical Welding Machine , Armature Commutator electric welder

Automatic Fixture Electrical Armature Commutator Welding Machine

DESCRIPTION

1. This machine could adopt the working principle of capacitor discharge or AC pulse spot welder. Utilize the pneumatic device to clamp and use stepping motor to conduct stepless rotating (be able to set the quantity of welding commutator at random).

2. According to the requirement provided by customer: wire diameter: 0.6-0.75mm, the machine is designed as 18 to 36 times of spot welding. Operator only needs to put the work piece into the mould, then the machine will conduct automatic rotating, cycle working, and continuous welding.

3. The power of commutator automatic welding machine could be: AC pulse spot welding machine, three-phase secondary rectifying DC power, and medium frequency inverter DC power. Use the pneumatic device to clamp. The servo motor will make it rotate. The spots number could be set according to your needs.

4.Adopt the touch screen of Japan Panasonic as the human-machine interface, English input.

5.Adopt double-layer cylinder as the pressurized source which is control by good quality of imported electromagnetic valve and coordinated with precision-machined linear slide to pressure the electrode tip. The pressure of each welding head could be adjusted independently to ensure the stability of welding machine.

APPLICATION

Welding of commutator.

SPECIFICATION

MATERIAL CONFIGURATION

1. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
2. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
3. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
4. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
5. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
6. Adopt South Korea SANWO pneumatic components with stable performance.
7. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
8. Strictly comply with CE security standard to design the machine. Lower the accident rate.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
