|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Sea Worthy Wooden Package|
|Delivery Time:||7-15 days after payment|
|Supply Ability:||50 sets per month|
|Condition::||New||Service Life::||8-10 Years|
|Welding Power Source::||Medium Frequency|
electric welding equipment,

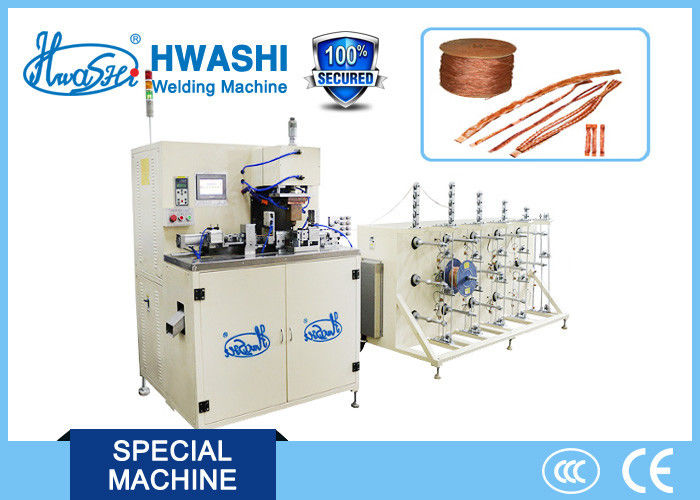

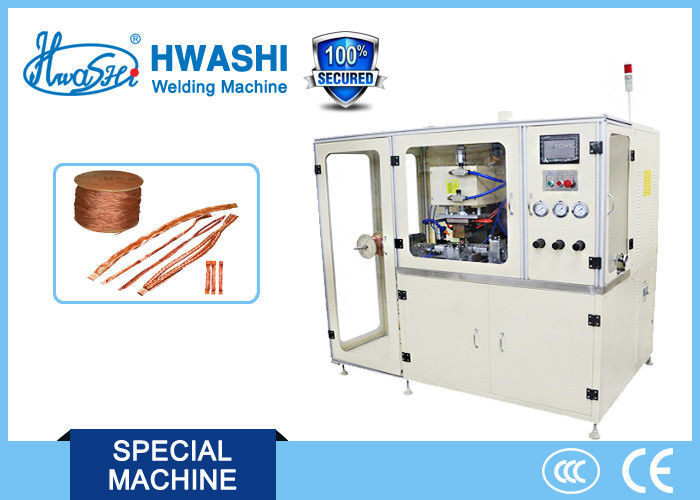

High efficiency Copper Braided Wire Automatic Welding and Cutting Machine
This is our latest machine which is designed to complete the welding and cutting automatically.Once adjusting the related parameters, it can change the shape of welding and length of cutting. The welding length is 30-300mm (adjustable).
Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire. Then the wire output system stop working, the welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding. Next, the stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire. At last, the stay wire cylinder starts to pull out the completed wire and put it into the discharging box.
|1||Input Voltage||380V single-phase||380V three-phase|
|4||Max Short Circuit Current||21000A||20000A|
|5||Welding Models||16 Kinds||101 Kinds|
|8||Max Welding Forming Dimension||4mm2|
|9||Min Welding Forming Dimension||1mm2|
|10||Feeder Movement Speed||0.5m/Sec|
Welding of braid wire of electrical parts like distribution switch, disconnector, etc. Be able to weld and cut 1 to 4 mm2 of singlet wire, double wire, and three-wire in one of annealed copper wire.
The cutting length could be adjusted freely and the cross-section of connecting wire could be designed as different shapes like semi-circle, square, and hexagon, etc.
|Item||Name||Brand||Place Of Origin||Characteristic|
|1||Silicon Control||SCR||Nanche||High Precision, Long Service Life.|
|2||Discharge Control Panel||Self-Developed||Hong Kong||Digital Control, Stable Performance, Low Voltage Compensation|
|3||PLC Procedure Control||Panasonic||Japan||Stable Control, Calculating Machine, Procedure Modification.|
|4||Touch Display Screen||Panasonic||Japan||Chinese Display, Inching Touching Control|
|5||Stay Wire Cylinder||Zhicheng||China||Quick Response, Long Service Life.|
|6||Main Welding Cylinder||Zhicheng||China||Quick Response, Long Service Life.|
|7||Air Assembly||SANWO||South Korea|
|8||The Blade||Fuji||Japan||High Rigidity, Good Tenacity, Long Service Life.|
|9||Silicon Steel Sheet||Japan||Good Performance Of Magnet And Electrical Conductivity. Less Loss Of Electricity|
|10||Linear Guideway||Fuji||Japan||Good Motion Performance, High Precision.|
|11||Linear Bearing||Decheng||Japan||Good Motion Performance, High Precision.|
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
