Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-MF-50K
Contact Us
Video

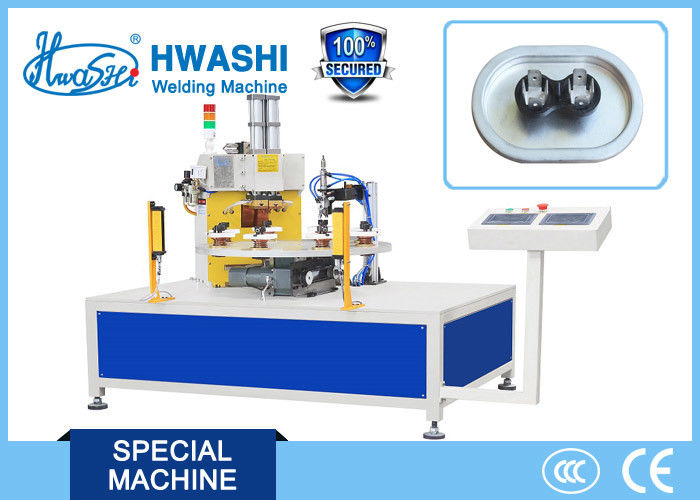

Automatic Rotate Caps Cover / Shell Spot Welding Machine with Eight Welding Station
DESCRIPTION
This machine is customized to weld caps covers / shell. It has automatic rotary table for loading 8 products , automatic welding system and automatic unloading the product after welding.
FEATURE
Automatic Rotating Device: Adopt Taiwan TECO servo motor with 800mm rotating table, simple adjustment, quick response, high control precision, powerful driving. This device can be matched with other auxiliary devices to complete the automatic cycle work.
Automatic Discharging Device: Use the cylinder to jack up the welded work piece. It will coordinate with the external signals transmission system to ensure the action is normal.
Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.
Power Source System: Adopt one set of medium frequency inverter special resistance welding transformer as the welding power source
Technical Proposal:
| No. | Item | Parameters |
| 1 | Input Voltage | 380V three-phase |
| 2 | Input Current | 150A |
| 3 | Output Voltage | DC11.6V |
| 4 | Max Short Circuit Current | 32000A |
| 5 | Welding Models | 30 types |
| 6 | Rotary Table Diameter | 800mm |
| 7 | Rotary Table Material Positions | 8 positions |
| 8 | Rotary Table Rotating Speed | 0.5m/sec |
| 9 | Welding Cylinder | ￠80X2x80mm |
| 10 | Lower Mould Cylinder | ￠160x50mm |
| 11 | Machine Dimension | 1600x1000x1650mm |
| 12 | Weight | Around 1200kg |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
