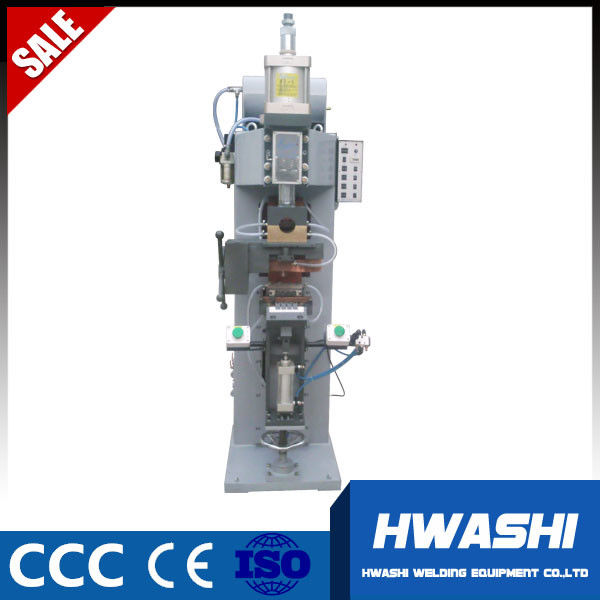

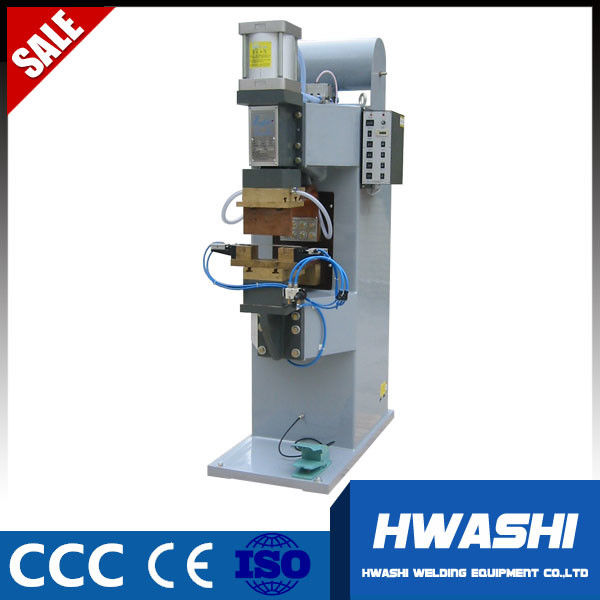

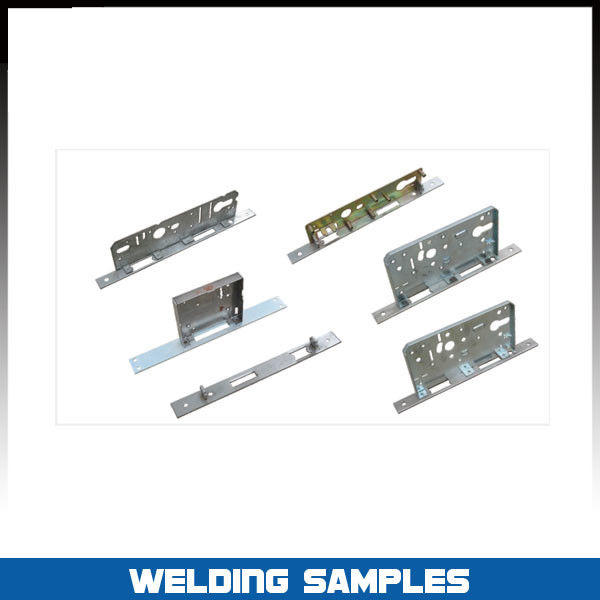

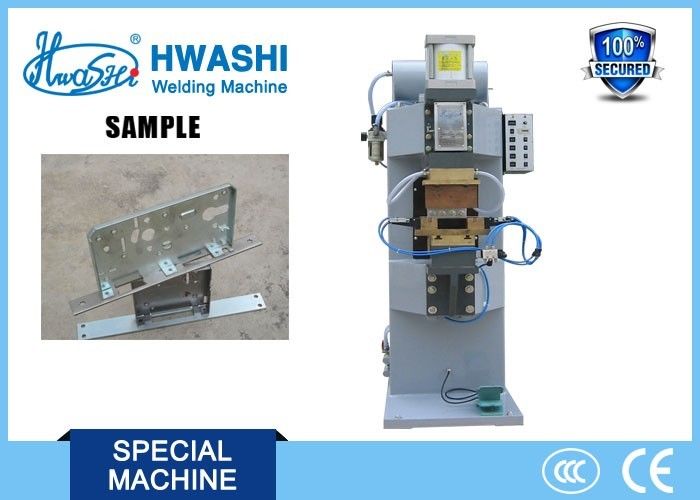

This machine is customized for row/ spot welding galvanized steel lockset. Machine adopt row welding electrode, which can achieve one time welding one plate with housing part. Please see below detail machine pictures.
| Model | Voltage | Power |
Secondary Current |
Pressurization |
Electrode Stroke |
Closure |
Platform Distance |
Electrode Distance |
Cooling Water |
| V | KVA | A | Kg | mm | mm | mm | mm | Lit/min | |
| WL-S-50K | 380/1 | 50 | 19500 | 500 | 80 | - | - | - | 6 |
| WL-SP-25K | 380/1 | 25 | 12000 | 300 | 80 | 145-225 | 250 | 320-420 | 6 |
| WL-SP-35K | 380/1 | 35 | 16000 | 350 | 80 | 145-225 | 250 | 320-420 | 6 |
| WL-SP-50K | 380/1 | 50 | 19500 | 500 | 80 | 145-225 | 250 | 320-420 | 6 |
| WL-SP-75K | 380/1 | 75 | 24000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 |
| WL-SP-100K | 380/1 | 100 | 34000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 |
| WL-SP-150K | 380/1 | 150 | 40000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 |
| WL-SP-200K | 380/1 | 200 | 50000 | 1500 | 100 | 130-230 | 260 | 490-540 | 8 |
| WL-P-75K | 380/1 | 75 | 24000 | 1000 | 100 | 130-230 | 260 | - | 8 |
| WL-P-100K | 380/1 | 100 | 34000 | 1000 | 100 | 130-230 | 260 | - | 8 |
| WL-P-150K | 380/1 | 150 | 40000 | 1000 | 100 | 130-230 | 260 | - | 8 |
| WL-P-300K | 380/1 | 300 | 75000 | 2000 | 100 | 130-230 | 260 | - | 8 |
FEATURE
1. Special design interatoin of pressurized cylinder which can stability and mobility of pressurized and welding speed.
2.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
3. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.
4. WD-KD5 Controller: intelligent microcoputer ontrol;multiple-section of discharge ;it can be used to preheat.to weld.
APPLICATION
suitable for spot welding of projection welidng of stud ,screw,steel plate and stainless steel sheet.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
