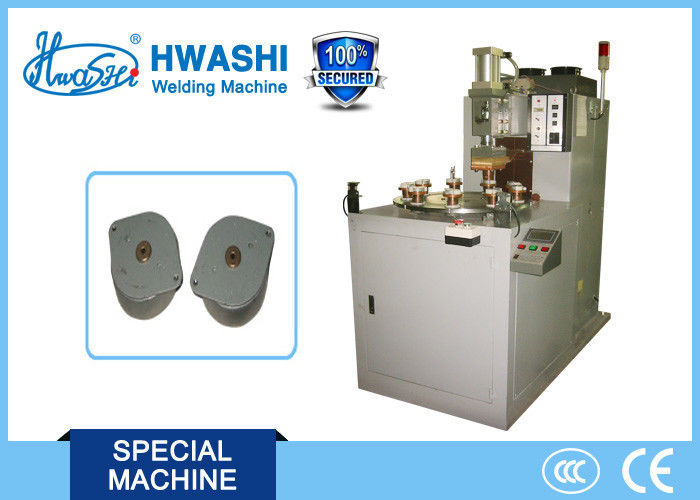

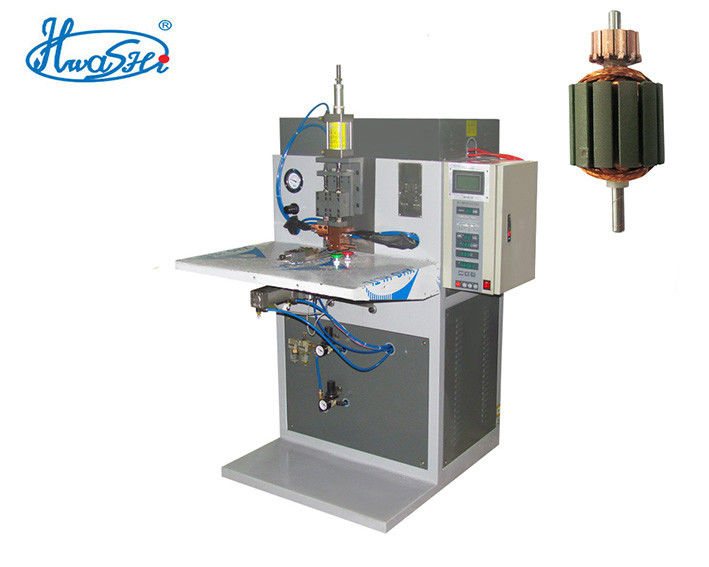

Commutator Multi - Point Motor Rator Auto Welding Machine 25KVA Rated Capacity

Description

1. Commutator welding specail machine could adopt the working principle of medium frequency spot welding or AC pulse spot welding. Utilize the pneumatic device to clamp and use stepping motor to conduct stepless rotating (Be able to set the quality of welding spots on commutator at will).

2.According to the requirement provided by your company: wire diameter: 0.6-0.75mm, the machine is designed as 18 to 36 times of spot welding. Operator only needs to put the work piece into the mould, then the machine will conduct automatic rotating, cycle working, and continuous welding.

Features

1. Main Engine Control System: Adopt the touch screen as the human-machine interface,Choose the PLC as program control system of the whole machine. PLC is in charge of  reading data, processing and comtrol signals to ensure the validity of excution orders of the whole machine. Better achieve huaman-machine coversation.

2. Rotating System: Adopt the stepping motor to control with the function of stepless indexing, high precision, stable speed.

3. Welding System:Adopt the self-developed intelligent microcomputer control system. It will automatically compensate the welding current when the voltage fluctuates to ensure the stable performance of welding.

4. Clamping System: Adopt the mechanical pricinple and pneumatic direct-acting clamoing device with high intensity.

Application Area

Welding of commutator.

Technical Parameters

Hwashi Commutator Special Welding Maccine

Material Configuration

• Nanche SCR silicon controlled with high precision and long service life;

• ABB rectifier diode with high precision;

• Japan SIEMENS servo motor;

• U.S. Motorola integrated circuit and Japan SIEMENS PLC;

• Japan SIEMENS intelligent touch screen control system; Built-in automatic fault detection and alarm system; English operation interface with clear menus, simple operation and stable performance;

• South Korea SANWO pneumatic components with stable performance;

• All the electronic components are from Japan Mitsubishi and Omron with ideal service life;

• High precision, all digital control system can effectively solve the cold joint and loose welding due to the current shunt of multiple-point projection welding;

• Safety in use: the manufacturing process is strictly complied with the European Union "CE" safety standards.

Why us

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale,

competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your

requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life.

100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional

team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
