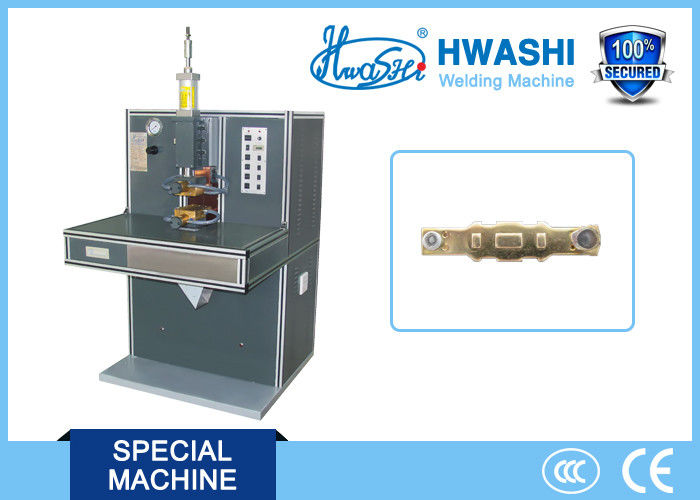

AC Pulse Medium Frequency Micro Spot Welding Machine 25 KVA For Commutator

AC Pulse Medium Frequency Micro Spot Welding Machine 25 KVA For Commutator

miniature spot welder

AC Welding Machine

Place of Origin:

Guangdong China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Max. Welding Thickness:
8*8 Mm
Rated Power:
25 KVA
Welding Current:
Electrode Stroke:
Electrode Distance:
Cylinder Distance:
Welding Way:
AC Pulse
Payment & Shipping Terms
Minimum Order Quantity
1 set
US $2,000-30,000 / Sets
Packaging Details
wooden packing
Delivery Time
30 days after payment
Payment Terms
L/C, T/T
Supply Ability
30 sets per month
Product Description

Dear Madam/ Sir,
I'm Joy from Guangdong Hwashi Technology Inc. We are professional in manufacturing kinds of welding machine over 20 year. We have full experience in exporting machines to foreign countries. For recommending suitable machine to you, yhe folowing questions are required to know.
1. What kind of machine you manufacture?
2.Please tell me spacifications of your product,such as the thickness ,material.
Any confusion, feel free contact me. wahtsapp;+86 18772614515 wechat:Joy_Cocoa
1. Commutator welding special machine could adopt the working principle of medium frequency spot welding or AC pulse spot welding. Utilize the pneumatic device to clamp and use stepping motor to conduct stepless totating (be able to set the quantity of welding spots on commutator at will)
2. According to the requirement provided by customer: wire diameter: 0.6-0.75mm, the machine is designed as 18 to 36 times of spot welding. Operator only needs to put the work piece into the mould, then the machine will conduct automatic rotating, cycle working, and continuous welding.
1. Main Engine Control System: Adopt the touch screen as the human-machine interface,choose the PLC as program control system of the whole machine. PLC is incharge of reading data,processing and control signals to ensure the validity of excution orders of the whole machine. Better achieve human-machine conversation.
2.Rotatijng System: Adopt the stepping motor to control with the function of stepless indexing,high precesion,stable speed.
3. Welding System: Adopt the self-developed intelligent microcomputer control system. It will automatically compensate the welding current when the voltage fluctuates to ensure the stable performace of welding.
4. Clamping System: Adopt the mechanical principle and pneumatic direct-acting clamping device wwiyh hig intensity
Tecchnical Parameters
PLC Welding Machine for Commutator

ModelMannerInput VoltageInput PowerOutput Current
WL-C-2KCapacitor Discharge220V2KW18000A
WL-C-2.5KCapacitor Discharge220V2.5KW24000A
WL-S-16KAC pulse220/ 380V16KW10000A
WL-S-25KAC pulse380V25KW12000A
WL-S-35KAC pulse380V35KW16000A
WL-S-35KAC pulse380V75KW34000A

Why us
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale,
competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your
requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life.
100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional
team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
Company Profile
Guangdong Hwahsi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang,huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance  welding machine, automatic welding machine and industrial welding robot.
Hwahsi has more than 20 technicains who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology,quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product,engineering design and mold design, product inspection and test, on-site technicalsupport,ect.
