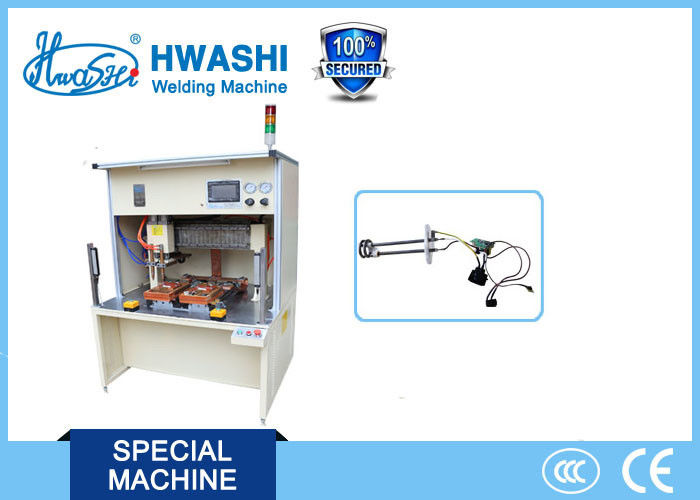

CNC Heating Tube Automatic Welding Machine Hwashi 3mm Maximum Welding Thickness

CNC Heating Tube Automatic Welding Machine Hwashi 3mm Maximum Welding Thickness

automatic seam welding machine

wire welding equipment

Place of Origin:

Guangdong, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Maximum Welding Thickness:
Welding Gun Movement Rate:
Workpiece Maximum Diameter:
Minimum Welding Thickness:
Workpiece Minimum Diameter:
Life Service:
8-10 Years
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
US $10,000-20,000 / Sets
Packaging Details
wooden case
Delivery Time
30-40 days after payment
Payment Terms
L/C, T/T
Supply Ability
30 sets per month
Product Description

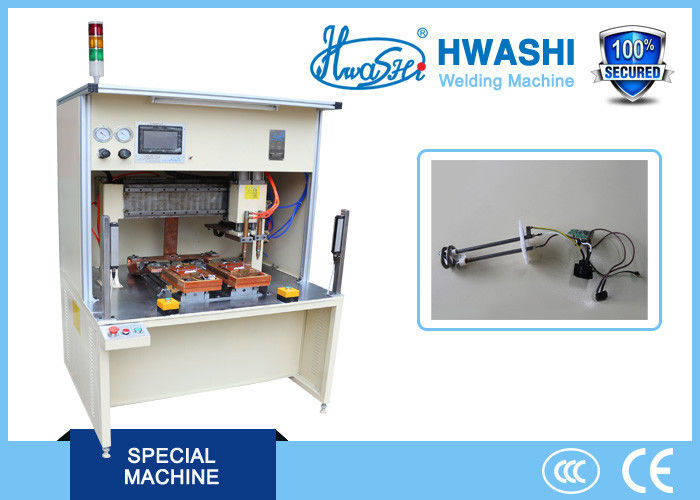

This machine uses MF DC welding method. The lower electrode is lower flat locating mould. According to the position of welding spots, the work piece will be moved on the CNC working table. There are two sets working tables with welding moulds for each side. When one of the working table enters into welding process, the other set is for the worker to prepare and load the material. Adopt medium frequency welding power source, the welding spot will be good at looking and working efficiency is high.



  1. Welding Structure: The coding stepping motor is transmitted by belt drive, coordinating with finish machining slide. The welding gun conducts constant motion. Good stability.
  2. Main Body:The main body is made of good quality steel plate. Reasonable rigid structure. Ensure the main body has enough rigidity and stability to support the machine when conducting high speed welding.
  3. Power Source: Both the imported pulse AC and DC from “Panasonic, OTC” or argon arc welding machine from famous brand as the welding power source. The minimum thickness of sheet is 0.2mm. Pressurized structure: Adopt pneumatic components of famous brands as the pressurized source of the machine. The upper part will press down while the lower part will rise up. To ensure the reasonable machine structure and to coordinate with fast locating structure to conduct welding locating.
  4. Welding Control System: Adopt electricity and gas, coordinating with transmission mechanism to form the overall operation network. Use Japan Panasonic PLC as the central processing unit to transmit all kinds of data. Easy debugging and convenient operation.
  5. Cooling System: Adopt parallel connection embedding cooling system. Forced water cooling. Provide guarantee for high frequency and long time working.


Applicable Area

Suitable for welding heating tube.


Technical Parameters

CNC Heating Tube Automatic Mobile and Welding Machine




About Hwashi


 Guangdong Hwashi Technology Inc. was established in 2001. The headquarter is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance welding machine,automatic welding machine and industrial robot.

Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product, engineering design and mold design, product inspection test, on-site technical support,ect.
