Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-S-75k
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Hwashi Stud / Bolt AC Spot Welder,AC Pulse Pneumatic Spot Welding Machine Application: Welding Of Stud,bolt
Welding Thickness: 2+2mm Welding Range: M4-M16 Stud
Control System: WD-KD5 Controller Condition: New
Standard: CE/CCC/ISO Warranty: One Year
Service Life: 8-10 Years Weight: 200kg
Size: 480x900x1600mm
High Light:

Stud AC Spot Welder

,

Bolt AC Spot Welder

,

AC Pulse Spot Welding Machine

Hwashi Stud / Bolt AC Spot Welder,AC Pulse Pneumatic Spot Welding Machine



Descripition



Under the operation of transformer, pneumatic AC pulse welder utilizes theh general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two pieces.

SPECIFICATION

Model

Input
Voltage

Input
Power

Output Current

Pressurization

Electrode
Stroke

Closure

Platform
Distance

Electrode
Distance



Cooling
Water

V

KVA

A

kg

mm

mm

mm

mm



Lit/Min

WL-S-35K

380/1

35

16000

350

80

-

-

-



6

WL-S-50K

50

19500

500

80

-

-

-



6

WL-SP-50K

50

19500

500

80

145-225

250

320-420



6

WL-SP-75K

75

24000

1000

100

130-230

260

490-540



8

WL-SP-100K

100

34000

1000

100

130-230

260

490-540



8


WD-KD5 Controller M4-M16 Stud Bolt AC Spot Welder 0


FEATURE
1. Special design interatoin of pressurized cylinder which can stability and mobility of pressurized and welding speed.



2.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.



3. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.


4. WD-KD5 Controller: intelligent microcoputer ontrol;multiple-section  of discharge ;it can be used to preheat.to weld.


APPLICATION

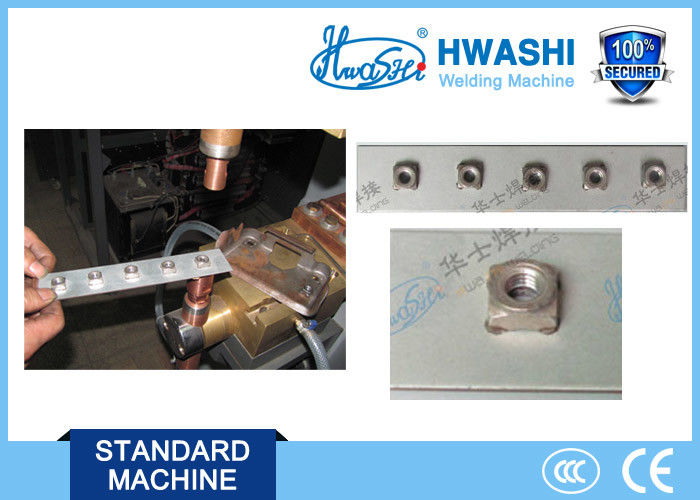

suitable for spot welding of projection welidng of stud ,screw,steel plate and stainless steel sheet.

WD-KD5 Controller M4-M16 Stud Bolt AC Spot Welder 1

COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





          WD-KD5 Controller M4-M16 Stud Bolt AC Spot Welder 2

                              WD-KD5 Controller M4-M16 Stud Bolt AC Spot Welder 3

        WD-KD5 Controller M4-M16 Stud Bolt AC Spot Welder 4
