Pipe Clamp Hold Stud Welding Machine
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-100K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: HWASHI Automatic Pipe Clamp Welding Machine With Rotary Table Application: Welding Of Pipe Clamp Products
Rotary Table Diameter: 800mm Rotary Table Material Positions: 6 Positions
Welding Cylinder: ¢80X2x80mm Rotary Table Rotating Speed: 0.5m/sec
Output Voltage: DC11.6V Service Life: 8-10 Years
High Light:

0.5m/Sec Stud Welding Machine


32000A Stud Welding Machine


Pipe Clamp Hold Welding Machine


HWASHI Pipe Clamp Automatic Welding Machine with Rotary Table




The zinc plated single scree clamp welding machine is composed of automatic welding machine, automatic rotatary table and automatic unloading device. The operator only needs to change the fixtures (welding moulds) then the machine can achieve welding of products with different sizes.


After welding the first work piece, the rotary table will rotate, then the second work piece will be moved to the welding position, cycle process will continue. Meanwhile, the welded work piece will be discharged automatically one by one and the operator could keep putting new work piece onto the certain position.


The operator only needs to put the work piece onto the rotary device, 8 work pieces at most for one time. Then start “welding”, the main welding body will conduct welding.




Model WL-MF-100K
Input Voltage 380V three-phase
Input Current 150A
Output Voltage DC11.6V
Max Short Circuit Current 32000A
Welding Models 30 types
Rotary Table Diameter 600mm
Rotary Table Material Positions 4 positions
Rotary Table Rotating Speed 0.5m/sec
Welding Cylinder ¢80X2x80mm
Lower Mould Cylinder ¢160x50mm
Machine Dimension 900x1300x1700mm
Weight Around 800kg







1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


2.After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


3. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


4.Prompt Response to Customers: Your satisfaction is the goal we pursue.


5.Quick Delivery: Our company provides just-in-time delivery.




Suitable for welding galvanized steel pipe clamp and zinc plated product.





1. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.


2. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.


3. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.


4. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.


5. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.


6. Strictly comply with CE security standard to design the machine. Lower the accident rate.


7. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.


8. Adopt South Korea SANWO pneumatic components with stable performance.

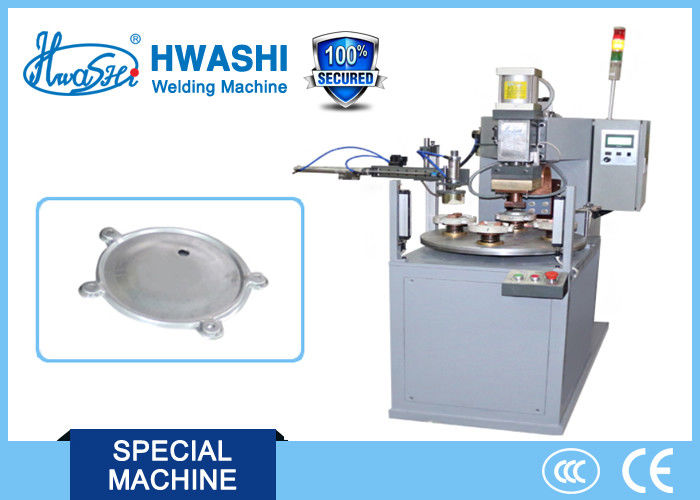

          Pipe Clamp Hold Stud Welding Machine 0

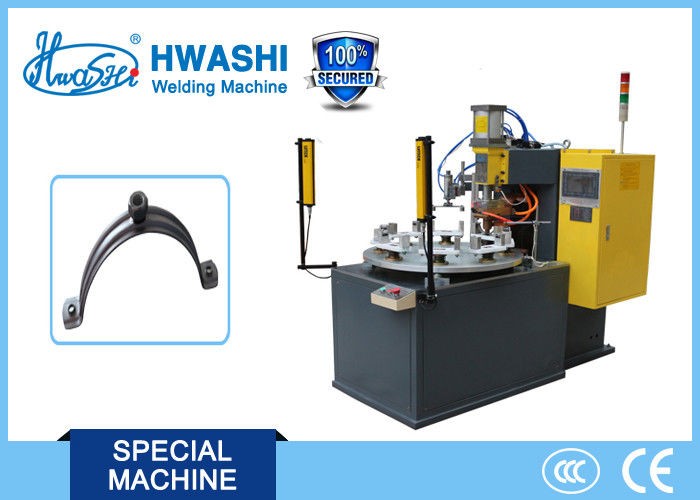

                                    Pipe Clamp Hold Stud Welding Machine 1

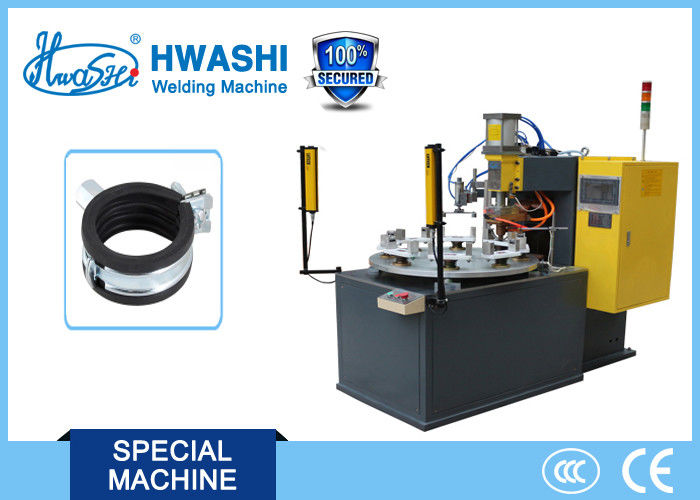

        Pipe Clamp Hold Stud Welding Machine 2

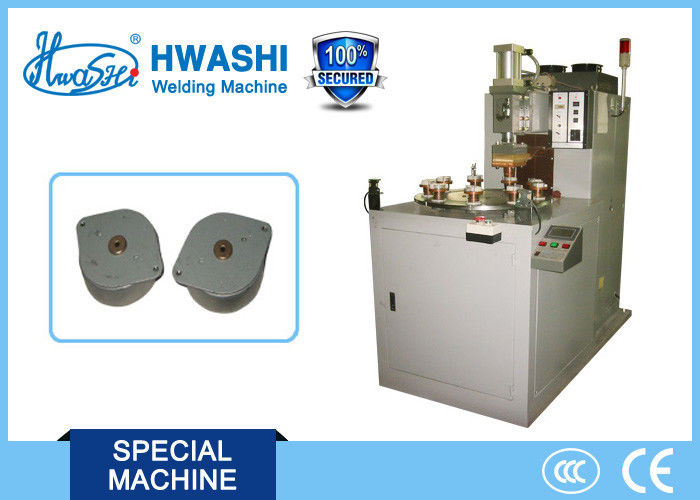

Pipe Clamp Hold Stud Welding Machine 3
