| Place of Origin: | China |
| Brand Name: | HWASHI |
| Certification: | CE/CCC/ISO |
| Model Number: | WL-MF-50K |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | sea worthy wooden package |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per month |
| Product Name: | Pipe Clamp Automatic Rotary Welding Machine With Automatic Unloading System | Application: | Welding Caps Cover / Shell |
|---|---|---|---|
| Size: | 1900x800x1600mm | Weight: | 600kg |
| Condition: | New | Warranty: | 12 Months |
| Standard: | CE/CCC/ISO | Service Life: | 8-10 Years |
| High Light: | Pipe Clamp Rotary Welding Machine,Automatic Unloading Rotary Welding Machine,0.5m/ Sec Auto Welding Machine |
||

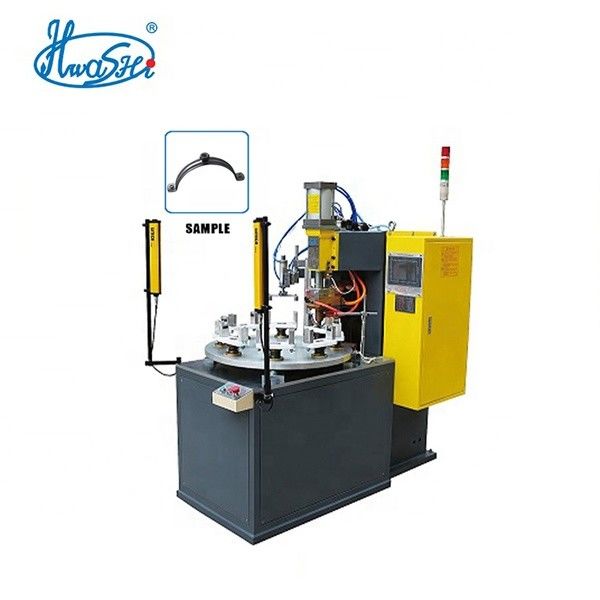

Pipe Clamp Automatic Rotary Welding Machine with Automatic Unloading System
DESCRIPTION
This welding machine is specially customized for welding pipe clamp with the functions of automatic welding, automatic rotating table and automatic discharging arm. The operator only needs to change the welding moulds then the machine can welding different sizes of pipe clamp or similar products.

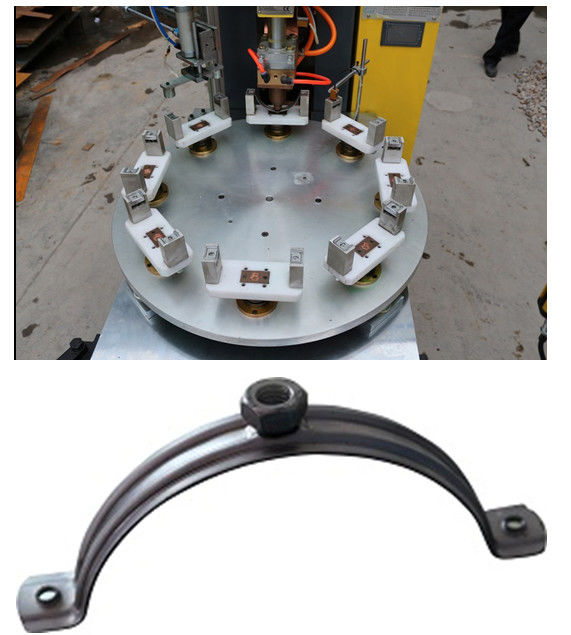

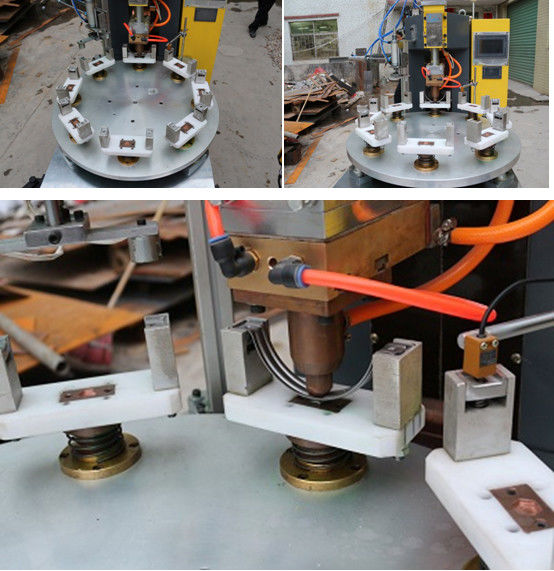

The machine has automatic rotary table. The operator only needs to put the work piece onto the welding mould on the rotary table, 8 pipe clamp at most for one time. Then press start button, the main welding body will continue the welding process.
After welding the first pipe clamp , the rotary table will rotate, then the second pipe clamp will be welded. Meanwhile, the welded work piece will be discharged automatically one by one and the operator could keep putting new work piece onto the certain position.
The machine has light curtain protective sensor for the safity of workers
APPLICATION
Suitable for welding nut / screw onto galvanized steel pipe clamp or pipe hanger.
FEATURE
Automatic Rotating Device: Adopt Taiwan TECO servo motor with 800mm rotating table, simple adjustment, quick response, high control precision, powerful driving. This device can be matched with other auxiliary devices to complete the automatic cycle work.
Automatic Discharging Device: Use the cylinder to jack up the welded work piece. It will coordinate with the external signals transmission system to ensure the action is normal.
Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.
Power Source System: Adopt one set of medium frequency inverter special resistance welding transformer as the welding power source
Technical Proposal:
| No. | Item | Parameters |
| 1 | Input Voltage | 380V three-phase |
| 2 | Input Current | 150A |
| 3 | Output Voltage | DC11.6V |
| 4 | Max Short Circuit Current | 32000A |
| 5 | Welding Models | 30 types |
| 6 | Rotary Table Diameter | 800mm |
| 7 | Rotary Table Material Positions | 8 positions |
| 8 | Rotary Table Rotating Speed | 0.5m/ sec |
| 9 | Welding Cylinder | ￠80X2x80mm |
| 10 | Lower Mould Cylinder | ￠160x50mm |
| 11 | Machine Dimension | 1600x1000x1650mm |
| 12 | Weight | Around 1200kg |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
