Place of Origin: | China |
Brand Name: | HWASHI |
Certification: | CE/CCC/ISO |
Model Number: | WL-MF-50K |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | sea worthy wooden package |
Delivery Time: | 45 working days after received your payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 sets per month |
Product Name: | Rotary Table Type CNC Welding Machine For Motor Run Capacitor Cover Plate | Application: | Welding Caps Cover / Shell |
---|---|---|---|
Size: | 1900x800x1600mm | Weight: | 600kg |
Condition: | New | Warranty: | 12 Months |
Standard: | CE/CCC/ISO | Service Life: | 8-10 Years |
High Light: | Rotary Table CNC Welding Machine,800mm Table CNC Welding Machine,DC11.6V Auto Welding Machine |

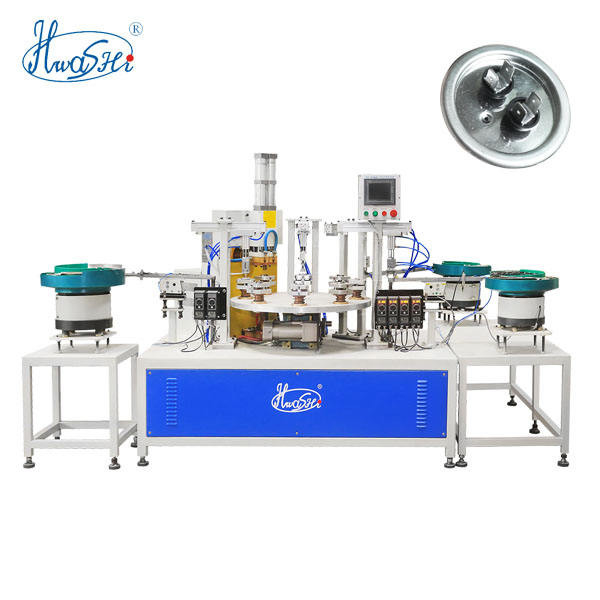

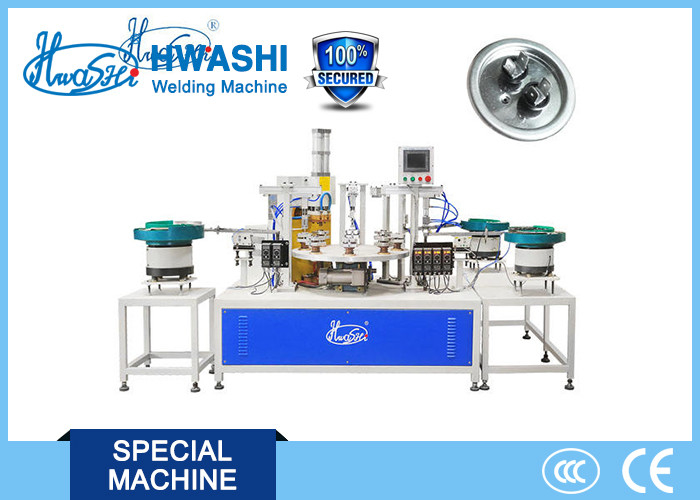

Rotary Table Type CNC Welding Machine for Motor Run Capacitor Cover Plate
Welding samples
DESCRIPTION
This machine is customized to weld top case of Motor Run Capacitor.It has automatic rotary table for loading 8 products , automatic welding system and automatic loading and unloading the product after welding.
Automatic Rotating Device: Adopt Taiwan TECO servo motor with 800mm rotating table, simple adjustment, quick response, high control precision, powerful driving. This device can be matched with other auxiliary devices to complete the automatic cycle work.
Automatic Discharging Device: Use the cylinder to jack up the welded work piece. It will coordinate with the external signals transmission system to ensure the action is normal.
Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.
Power Source System: Adopt one set of medium frequency inverter special resistance welding transformer as the welding power source.
APPLICATION
Suitable for welding nut / screw onto galvanized steel pipe clamp or pipe hanger.
Technical Proposal:
No. | Item | Parameters |
1 | Input Voltage | 380V three-phase |
2 | Input Current | 150A |
3 | Output Voltage | DC11.6V |
4 | Max Short Circuit Current | 32000A |
5 | Welding Models | 30 types |
6 | Rotary Table Diameter | 800mm |
7 | Rotary Table Material Positions | 8 positions |
8 | Rotary Table Rotating Speed | 0.5m/ sec |
9 | Welding Cylinder | ¢80X2x80mm |
10 | Lower Mould Cylinder | ¢160x50mm |
11 | Machine Dimension | 1600x1000x1650mm |
12 | Weight | Around 1200kg |
Contact Person: Kary Hou
Tel: +8613380655800
