Name: Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-B-75K
Price: 12000 USD
Availability: InStock

Home > products > Automatic Welding Machine >

Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube

Steel Bundy Pipe Straightening Machine

Automatic Coil Pipe Straightening Machine

2.2KW Pipe Cutting Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-B-75K

Request A Quote

Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube

Product Details

Product Name:

Automatic Coil Steel Bundy Aluminum Copper Tube Pipe Straightening And Cutting Machine

Application:

Wire Straightening And Cutting Machine

Size:

900mmX1150mmX1750mm

Weight:

450 Kg

Condition:

New

Warranty:

24 Months

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Color:

Customized

Aftersales Service:

Engineer Overseas

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$12000

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

HWASHI Automatic EI Lamination Stacking Machine MIG Welder For EI Piece Welding

Get Best Price

Video

Automatic Copper Braided Wire Welding And Cutting Machine CE / CCC / ISO HWASHI

Get Best Price

Video

HWASHI WL-AT-PM Kitchen Sink Grinding Machine Automatic Polishing Machine

Get Best Price

Video

Double - Bowl Kitchen Sink Automatic Seam Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Automatic coil steel bundy aluminum copper tube pipe straightening and cutting machine

Description

1) Motor driving for loading material. Frequency speed control; rotary encoder measuring; Equipped with functions like output counting, tube winding, feeding slip protection.

2) PLC control. Human-machine interface operation to set parameters.

3) Use no scraps cutting method for cutting the tube coil.

4) The fixture, straightening wheels, feeding wheels are made of Cr12 steel which passed heat treatment and fine polishing.

5) Spare parts: cutters- 2sets; 6) Decoiler:Maximum load: 150kg Maximum diameter of coil: 1000mm

APPLICATION

Suitable for tube straightening and cutting different size of wire.

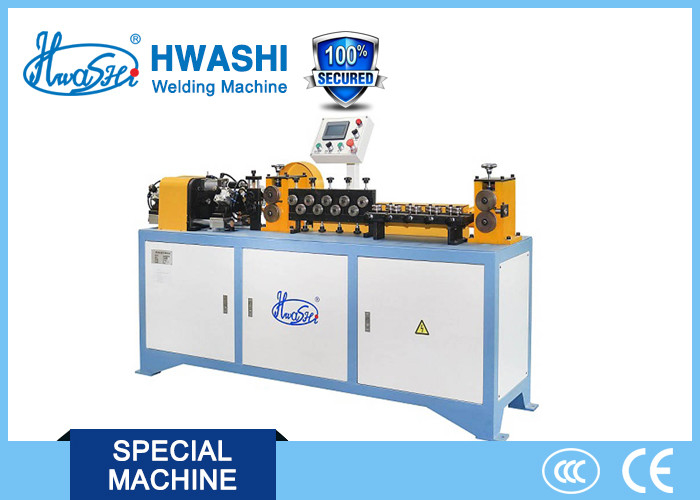

Details of the machine

Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube 0

SPECIFICATION

No.	Item	Parameter
1	Wire Diameter	Ø2mm-5mm/ Ø5mm-8mm
2	Oil cylinder	Ø63mmX25mm
3	Oil pump	3P
4	Coder	E40S6-1000 Absolute type
5	Oil press power	2.2KW/3HP
6	Oil case Volume	80L
7	Oil pump flow	40L/min
8	Max wire feeding speed	25m/min adjustable
9	Hydraulic Motor Specification	90X90 flange
10	Uncoiler Max load capacity	1500Kg(customized)
11	Round Plate Diameter of Uncoiler	φ1600mm(customized)
12	Main Machine’s Service Voltage	Three Phase 380V(±15V)
13	Control Method	PLC
14	Preset Quantity Function	yes
15	Dimension	1300x900mm
