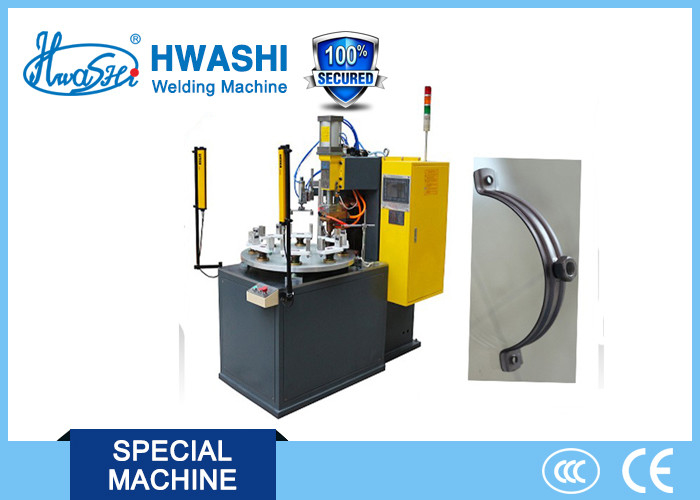

Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp

Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp

  • Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp
Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-100K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: HWASHI Automatic Pipe Clamp Welding Machine With Rotary Table Application: Welding Of Pipe Clamp Products
Rotary Table Diameter: 800mm Rotary Table Material Positions: 6 Positions
Welding Cylinder: ¢80X2x80mm Rotary Table Rotating Speed: 0.5m/sec
Output Voltage: DC11.6V Service Life: 8-10 Years
High Light:

Hwashi Stud Welding Machine

,

Steel Pipe Clamp Stud Welding Machine

,

Galvanized Steel Pipe Clamp Stud Welder

Steel Pipe Clamp / Pipe Hold Automatic Stud Welding Machine        T Clamp Stainless Steel Standard





DESCRIPTION



The machine is designed as automatic welding, automatic rotating and automatic discharging.The machine is of 8 welding positions, so it can achieve cycle working and continuous welding.Moreover, medium frequency inverter power source is adopted with features of high power factor, electricity and energy saving, and it can achieve stable and reliable welding spots.Only need to change the fixtures (welding moulds) then the machine can achieve welding different products. The present design could help you weld product with different dimensions.



SPECIFICATION



No. Item Parameters
1 Input Voltage 380V three-phase
2 Input Current 150A
3 Output Voltage DC11.6V
4 Max Short Circuit Current 32000A
5 Welding Models 30 types
6 Rotary Table Diameter 800mm
7 Rotary Table Material Positions 8 positions
8 Rotary Table Rotating Speed 0.5m/sec
9 Welding Cylinder 80X2x80mm
10 Lower Mould Cylinder 160x50mm
11 Machine Dimension 1600x1000x1650mm
12 Weight Around 1200kg



Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp 0



APPLICATION



Suitable for welding galvanized steel pipe clamp and zinc plated product.













        Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp 1



Hwashi Stud Welding Machine For Galvanized Steel Pipe Clamp 2
