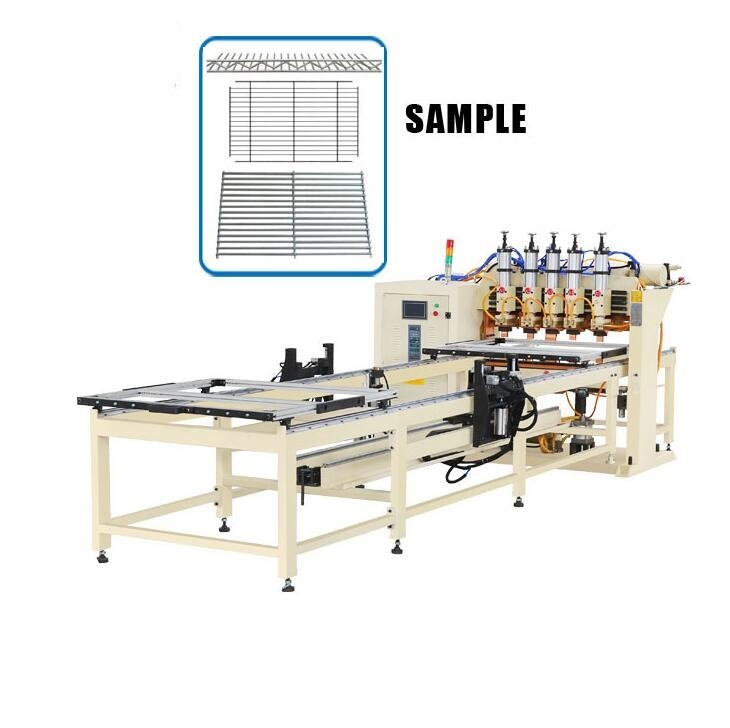

Hwashi Multi Point Spot Welding Machine Wire Mesh / Shelves / Rack Making Machine

Rack multi point spot welding machine

Wire multi point spot welding machine

Wire Shelves spot welding machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL－SP－150K

Request A Quote

Hwashi Multi Point Spot Welding Machine Wire Mesh / Shelves / Rack Making Machine

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

20000

Packaging Details

film

Delivery Time

60 days

Payment Terms

L/C, T/T

Supply Ability

5 pc/M

Automatic Copper Braided Wire Welding And Cutting Machine CE / CCC / ISO HWASHI

Get Best Price

Video

HWASHI WL-AT-PM Kitchen Sink Grinding Machine Automatic Polishing Machine

Get Best Price

Video

Double - Bowl Kitchen Sink Automatic Seam Welding Machine

Get Best Price

Video

Pipe Clamp Rotary Welding Machine With Automatic Unloading System

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi Multi-point Spot Welded Mesh Full Automatic Wire Mesh Welding Machine, wire shelves/rack making machine

Name: Hwashi Multi Point Spot Welding Machine Wire Mesh / Shelves / Rack Making Machine
Brand: Hwashi
SKU: WL－SP－150K
Price: 20000 USD
Availability: InStock
Rating: 4.5 (189 reviews)

Product Description

Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc. Suitable for batch production of mesh, cages, fence, reinforced wire mesh. etc. Multi-point Spot Welding Full Automatic Wire Mesh Welding Machine

Multi-point Spot Welding Full Automatic Wire Mesh Welding Machine 1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire. 2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product) 3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)

1.Welding Power Source:Since the distance between wires is long, the welding head is suitable to conduct single-point welding. So the machine will choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding, 2.Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot. 3.Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.

Techincal parameters

No.	Model	WL-SQ-AC150K	WL-SQ-MF90K
1	Input Power	Two-phase	Three-phase
2	Rated Capacity	150KVAx2	90KVAx2
3	Rated Input Current	750A	270A
4	Rated Duty Cycle	25%	25%
5	Secondary Voltage Adjusting Grade	2	2
6	Max Secondary Floating Voltage	AC7.5V	DC9.8V
7	Secondary Max Short Circuit Current	26KA	28KA
8	Continuous Working Current	20KA	22KA
9	Welding Transformer Insulation Grade	Grade F
10	Forcing Curve of Welding Machine	2 types
11	Storage Welding Model Number	30 types
12	Welding Electrode	6 sets
14	Effective Welding Width	1200mm
15	Effective Welding Width Length	1200mm
16	Automatic Mobile Speed	0.5m/sec

1.Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life. 2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance. 3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. 4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%. 5.Adopt South Korea SANWO pneumatic components with stable performance. 6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance. 7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.
