HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: Hwashi
Certification: CE
Model Number: WL-FK-16/50K
Minimum Order Quantity: 1
Price: 800usd
Packaging Details: Wooden
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs/month
Detail Information
High Light:

foot operated spot welder CCC

,

Sheet Metal foot operated spot welder

,

Foot Operated Spot Welding Machine


Product Description

HWASHI Foot Spot Welders Sheet Metal Foot Operated Spot Welding Machine

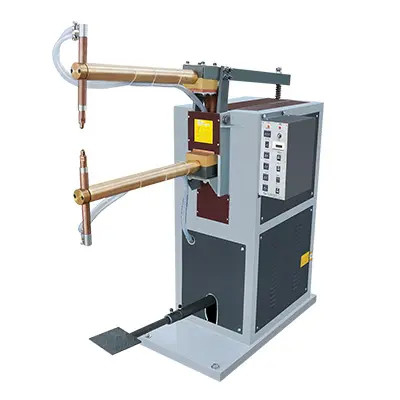

HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 0

Product Description

Foot pedal operated spot welding machine adopts lever pedal type spring pressurized structure. Easy operation, quick response. Suitable for various kind of positioning accuracy and complicated shape welding occasion. Under the operation of transformer, foot pedal spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.

Features of The Foot Operated Spot Welding Machine
1. Pedal lever control circuit. Main engine without electricity when do not step pedal. It can save electricity.

2. Using timing control. Even the work piece is still being pressed while welding, current can be automatically cut off on time and reduce the human factor. Easier operation. The quality of welding spot is more stable.

3. Timing using electronic controller stepless regulation. Setting range from 0. 0 2 to 2 seconds (usually the required time of work piece is within 0.5 seconds) accurately repeat the selection

Specification
Model Input Voltage Input Power Output Current Adjustable stroke Electrode Distance Cooling Water
  V KVA A mm mm L/min
WL-FT-16K 380/1 phase 16 10000 30 100 6
WL-FT-25K 380/1 phase 25 12000 30 100 6
WL-FT-35K 380/1 phase 35 14000 30 100 6
WL-FT-50K 380/1 phase 50 18000 30 100 6

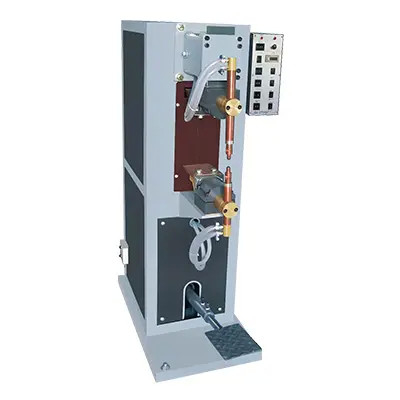

HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 1

Simple Structure with Durable Quality

Easy Operation for worker. Low machine cost

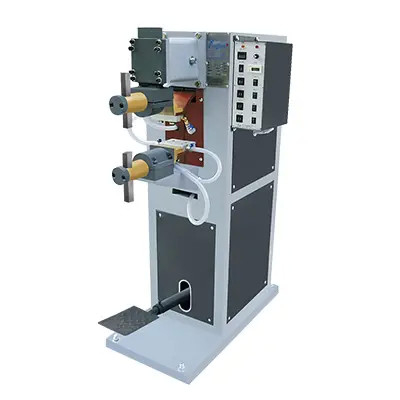

HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 2

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding
HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 3

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, silver, stainless Steel, and nickel steel.

HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 4

Plenty of machines in stock, fast delivery

We keep more than hundreds set of machines in stock. We can deliver the machines to you within 1 week.



HWASHI Foot Operated Spot Welder Sheet Metal Foot Operated Spot Welding Machine 5
