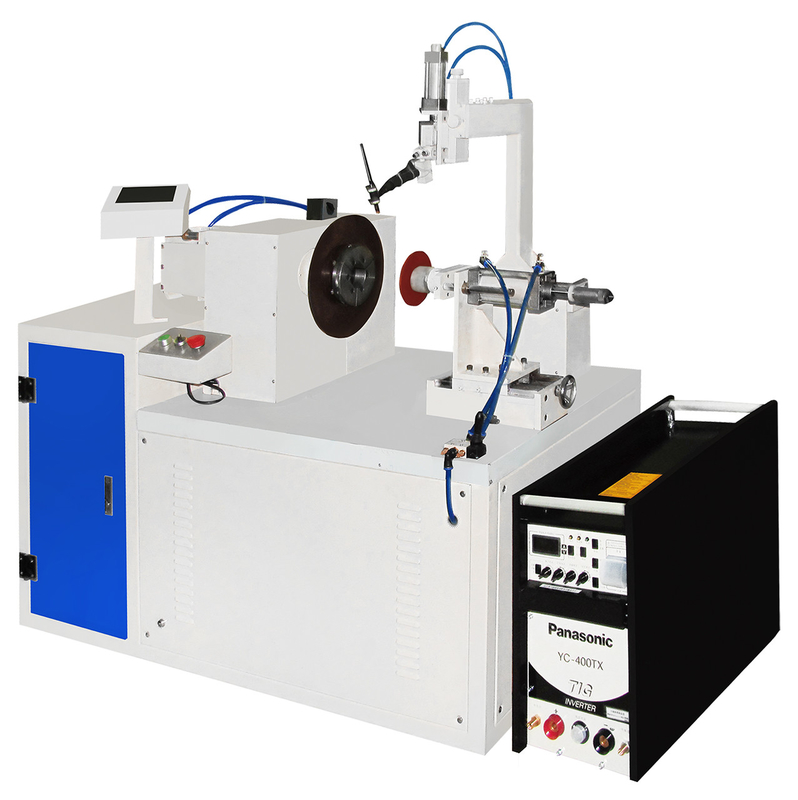

Hwashi TIG Welding / Automatic Circular Seam Welding Machine
Main Body:The main body is made of good quality steel plate. Reasonable rigid structure. Ensure the main body has enough rigidity and stability to support the machine when conducting high speed welding.
Power Source: Both the imported pulse AC and DC from "Panasonic, OTC" or argon arc welding machine from famous brand as the welding power source. The minimum thickness of sheet is 0.2mm.
Pressurized structure: Adopt pneumatic components of famous brands as the pressurized source of the machine. The upper part will press down while the lower part will rise up. To ensure the reasonable machine structure and to coordinate with fast locating structure to conduct welding locating.
Welding Control System: Adopt electricity and gas, coordinating with transmission mechanism to form the overall operation network. Use Japan Panasonic PLC as the central processing unit to transmit all kinds of data. Easy debugging and convenient operation.
Cooling System: Adopt parallel connection embedding cooling system. Forced water cooling. Provide guarantee for high frequency and long time working.
Adopt machinery clamping locating device. Adopt embedded clamp to locate so as to meet the needs of welding different products.
Welding Power Source:The work piece needs long arc welding and high requirement to the efficiency. Thus, pulse DC argon arc welding machine is adopted to meet the requirement of fast speed and stable welding.
Pressurized Structure: Any type of metal will expand with heat and contract with cold when welding. In order to prevent deformation after welding, adopt the air bag and built-in forced cooling water to solve the problem.
Rotating Structure: Since the machine is of high working requirement, the belt drive through coding stepping motor and match with finish machining slide. The work piece will conduct uniform motion. Good stability.
Suitable clamping work piece thickness: 0.5-6.0mm
Work piece max. Diameter: 860mm (Remark: Min. diameter depends on work piece length and mandrel size. )
Welding cart operation precision: 0.4mm per 2 meters
Key pressure: 0-75kg/cm
Welding cart drive unit: precision rack and pinion
This machine is applicable to welding of iron and stainless steel product. The thickness of welding work piece could be range from 0.2mm to 3mm. The length and diameter of welding work piece could be customized
