Automatic Nut Spot Welding Machine with Vibration Plate Feeder Automatic feed Automatic Nut Spot welder
Welding Machine
Adopt 130KVA Medium frequency inverter DC spot welding machine . It adopts the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss.This automatic nut welding machine with automatic feeding system is using the magnetic field vibration principle to select the nut, then the nut will be transported to the setting position. The machine will conduct welding automatically.
Nuts Automatic Feeding System
The nuts will be placed in the vibrative plate. Through the vibrating process, cam transmission, selection, lining up, the nuts will enter into distributor. And the nut will enter into welding position and being welded one by one through distributor.
Feature
1) The vibration plate is designed to equip with the function of preventing the nut turning back and noise;
2) High speed of sorting function to ensure the feeding speed of nut;
3) Use multidigit sensor to form the full closed-loop automatic function. This can ensure the reliability of the machine;
4) The moving parts are made of special material to ensure low transporting friction while lower the production cost.
5) Any shape of the nut could be achieved automatic feeding.
6) In automobile and its parts, many of the work pieces is connected through nuts or bolts. Nowadays, many welding equipment has defection in welding nuts, so our company designed this fixed spot welding machine with nuts/bolts automatic feeding system. This design could perfectly tackle the problems of the nut feeding process and achieve automatic feeding process. This machine could be used for the whole production line. If you match the machine with robot, you can achieve full automatic production, no need of employee.

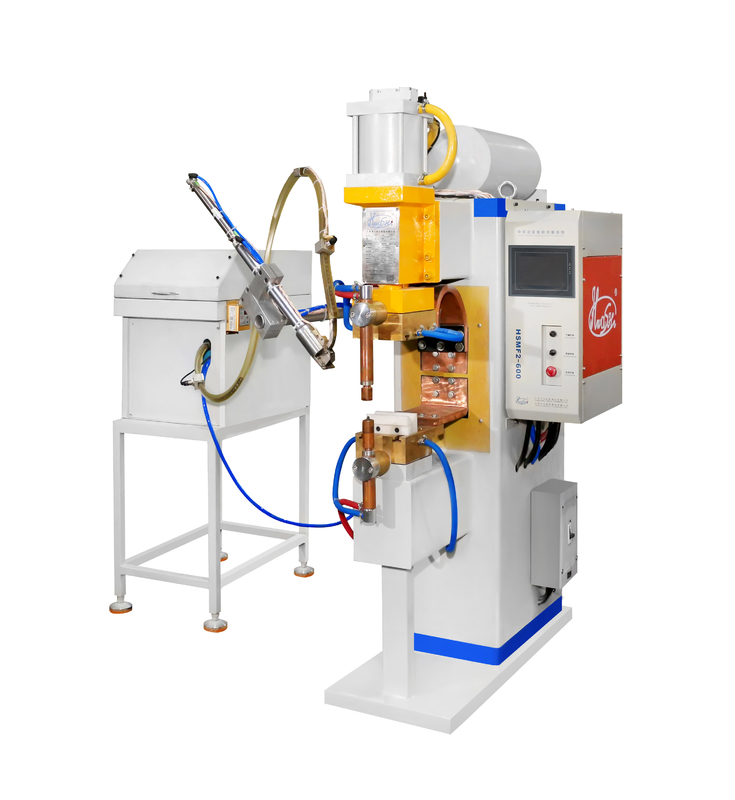

Model 1:Single Head Spot Welding Machine with Nut feeding Bowl
|
Automatic Nut Feeding Bowl |
|
Nut feeding tube and gun |
|
Welding Heads |

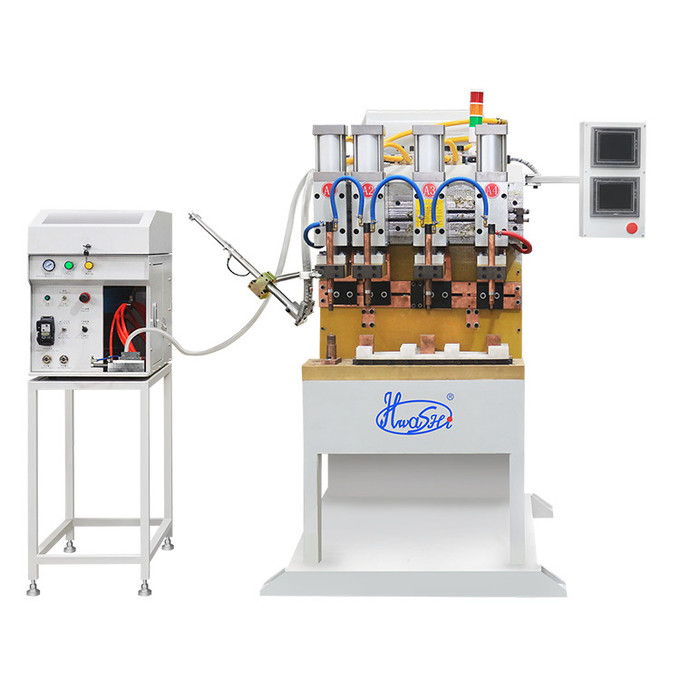

Model 2: MultipleHead Spot Welding Machine with Nut feeding Bowl
|
Automatic Nut Feeding Bowl |
|
Four welding heads and jig |
|
Touch Screen Controller |
|
Sample |

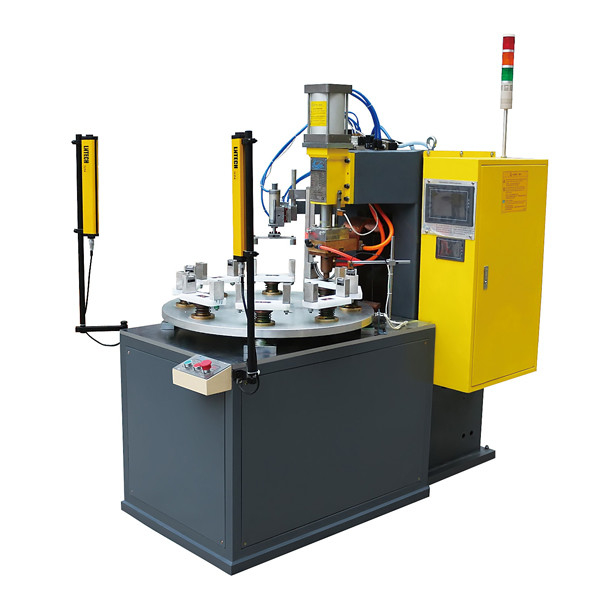

Model 3: Automatic Spot Welding Machine with Rotary Table for Pipe Clamp
|
Rotary Table with 8 jigs |
|
Mechanical Arm to unload the pipe clamp after welding |
|
Touch Screen Controller |
|
Sample |

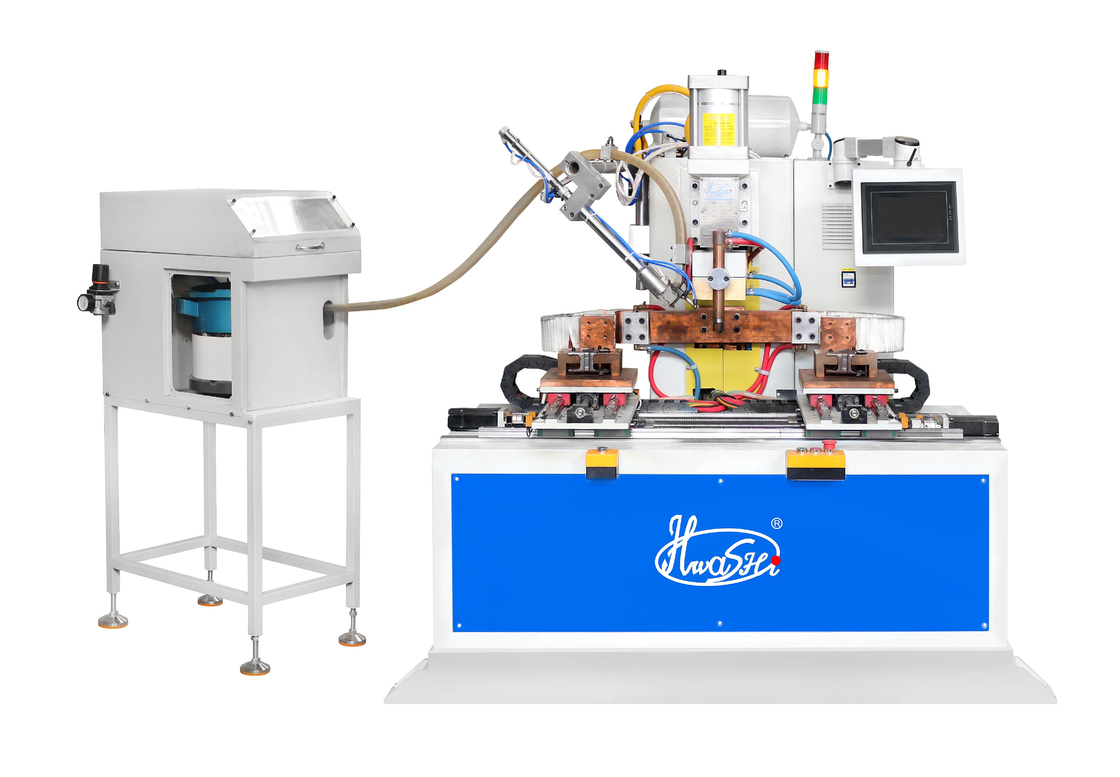

Model 4: Automatic Nut Spot Welding Machine with Double CNC table with jig
|
double CNC tables with jigs |
|
Automatic Nut Feeding Bowl |
|
Jig after loading product |
|
Product Photo after welding |
Specifications of welding machine
| Model | WL-MF-130K |
| Input Power (V/φ) | 380/3 |
| Rated Power (KVA) | 130kva |
| Applicable Material | Welding of nut to metal sheet |
| Max Short Circuit Current (KA) | 23 |
| Electrode Force (KG) | 1000 |
| Electrode Stroke (MM) | 100 |
| Dimension(L*W*H) | 950mm*800mm*1675mm |
| Warranty | 1 years |
Specifications of automatic nut feeding bowl
| Items | Parameters | |
|
Automatic Feeding System |
Input Voltage | 220V±10% 50HZ |
| Input Power | 0.35KVA | |
| Vibration Plate Speed | 60-100pcs/min | |
| Suitable Nuts Sizes | M4-M16 | |
| Suitable Nuts Shape |
Quadrangle, square, hexagonal , hexagon, flange, circle |
|
| Transmission Capability | 40-60pcs/min | |
| Transmission Angles | 30-50° | |
| Transmission Method | Sliding rail or electromagnetic type | |
| Vibration Plate Size | 302mm | |
| Nuts Storage Amount | 20000 pcs | |
| Resistance Welding System | Input Voltage | 380V±10% 50HZ(two-phase) |
| Input Power | 150KVA | |
| Secondary Voltage | AC10.8V | |
| Max Short Circuit Current | 3800A | |
| Electrode Pressure | 1000kg | |
| Feeding Pressure | 150kg | |
| Air Pressure | ≧0.6Mpa | |
| Water Pressure |
≧0.1Mpa |
APPLICATION AND SAMPLES
