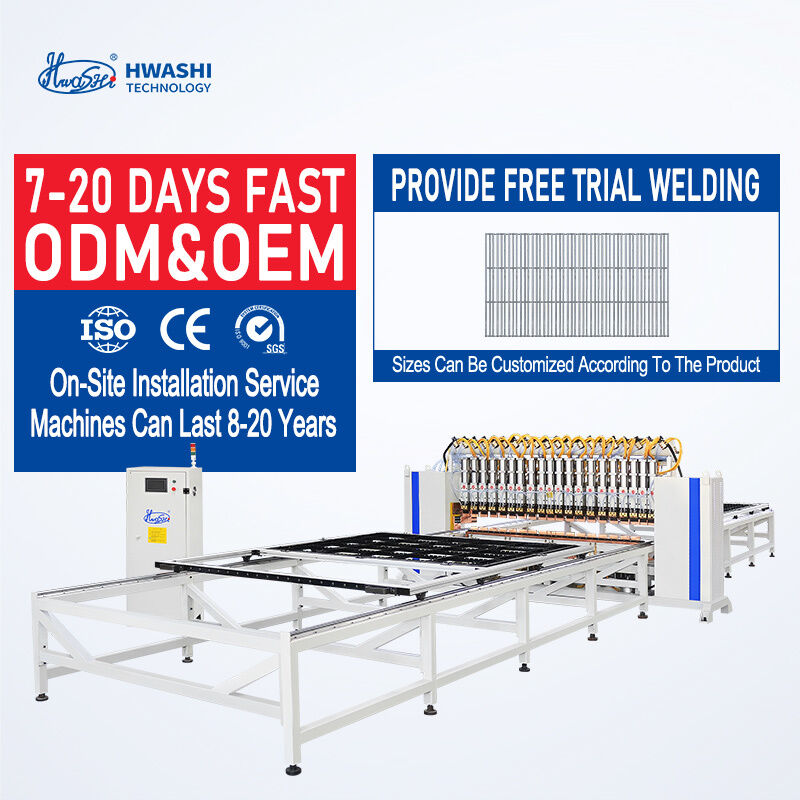

HW-AM1600L Livestock Feedlot Panel Welding Machine Galvanized Wire 1600mm 60Hz

Livestock Feedlot Panel Welding Machine

The HW-AM1600L is a 1600mm heavy gauge panel welding machine for cattle and livestock corral systems built for American cattle operations and ranch supply distributors that need rugged corral panels in high volume. It combines a rigid stress-relieved frame, a 150 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• Welding schedule tuned for zinc coated wire so joints stay tight after outdoor exposure.
• Frame rod insertion station produces a finished corral panel in one pass.
• Heavy gauge 6 mm verticals welded without electrode sticking or sheet marking.
• Programs for horse, cattle and hog panel formats stored and recalled in seconds.
• Ships with imperial unit tooling drawings and an English operations manual.

Built-In Customization Capability

• Corral panel length, height and bar spacing built to your ranch supply catalogue.
• Optional bow gate and gate frame fixture for full gate assembly welding.
• Custom bundling table and stacking jig for truckload dispatch.
• Wire coating class and colour options handled through matched wire supply.

Technical Specifications

Typical Applications

• Cattle feedlot and corral panels
• Horse arena and paddock fencing
• Hog and sheep pen panels
• Ranch gate and bow gate frames

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
