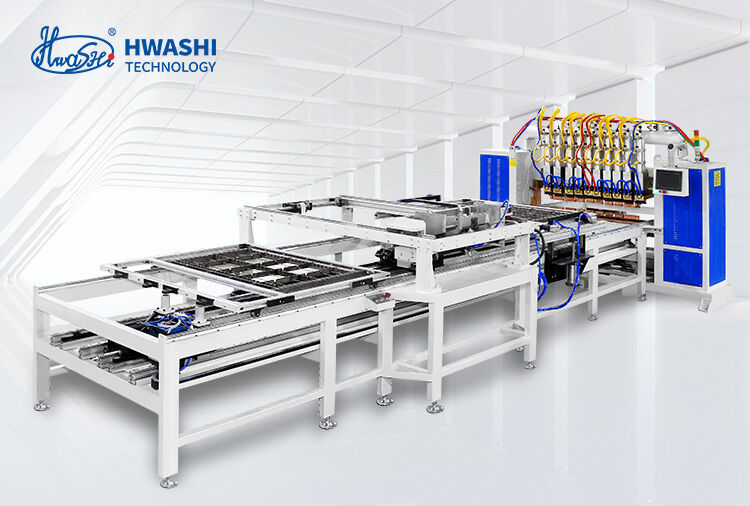

HW-AM1400A Refrigerator Wire Shelf Welding Machine 1400mm Multi Head 60Hz Appliance Line

Refrigerator Wire Shelf Multi Head Welding Machine

The HW-AM1400A is a 1400mm multi head welding machine for refrigerator and freezer wire shelves built for Mexican, Brazilian and US appliance plants that need fast model changeover on coated wire shelves. It combines a rigid stress-relieved frame, a 160 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• 16 independent heads weld shelf wire intersections without deforming the front trim bend.
• 300 program memory covers a full appliance model range with changeover under 10 minutes.
• Coated wire welding parameters prevent coating burn and keep shelves visually clean.
• Meets the takt time expectations of appliance assembly lines running two shifts.
• Electrical design and documentation prepared for appliance plant audits.

Built-In Customization Capability

• Shelf outlines, wire pitch and trim radius built to your appliance model drawings.
• Optional rotary two station table for continuous loading and unloading.
• Custom front edge forming and trimming integrated in the same cycle.
• Can be delivered with automatic shelf unloading onto a conveyor.

Technical Specifications

Typical Applications

• Refrigerator and freezer wire shelves
• Oven and microwave wire racks
• Dishwasher basket frames
• Appliance wire drawer and divider frames

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
