HW-AM1300T Cable Tray Mesh Welding Machine 1300mm Width Trunking Panel Automatic Line

Cable Tray and Trunking Panel Welding Machine

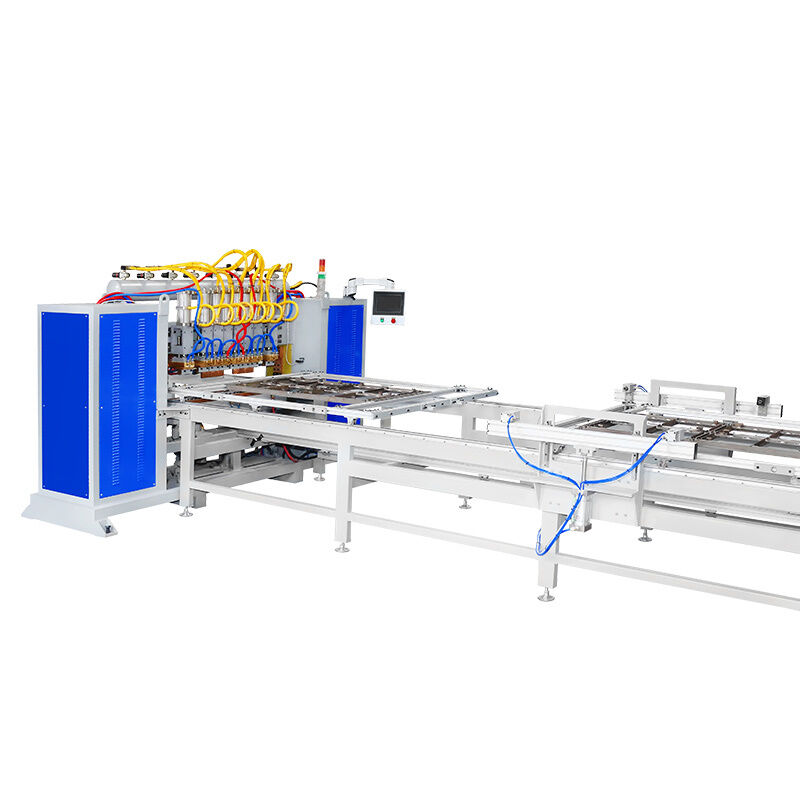

The HW-AM1300T is a 1300mm automatic welding line for cable tray bottom and trunking mesh panels built for US and Canadian electrical enclosure makers supplying data centre and industrial cable management projects. It combines a rigid stress-relieved frame, a 130 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• Tray widths matched to standard 6 inch to 36 inch cable tray ranges.
• Pre-galvanized wire welded with controlled heat so the zinc layer survives the weld zone.
• Automatic line control keeps the operator focused on loading, not on parameter setting.
• Optional return flange forming produces a tray body that is ready for side rail assembly.
• Electrode cassettes changed without tools to cut maintenance downtime.

Built-In Customization Capability

• Tray width, rung pitch and panel length built to your cable management catalogue.
• Optional perforated or expanded metal hybrid tooling.
• Custom side rail forming and welding fixture available.
• Machine layout adjusted to your existing shear and bender footprint.

Technical Specifications

Typical Applications

• Cable tray bottoms and covers
• Wire mesh cable trunking panels
• Data centre cable basket mesh
• Machine guard and enclosure mesh panels

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
