Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-S-150k
Contact Us

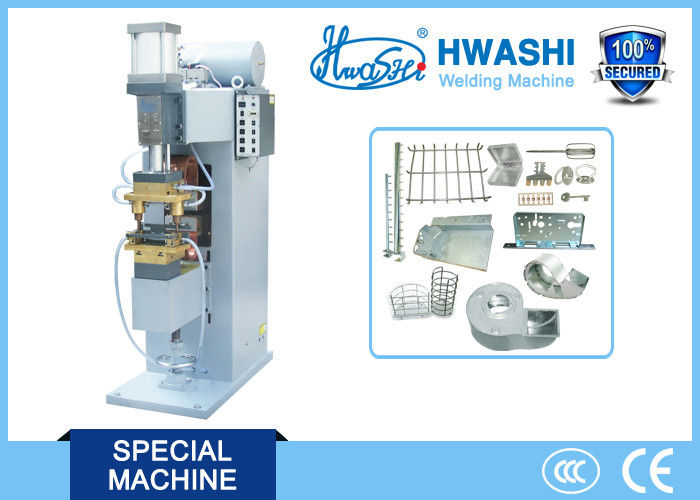

Single Phase Press-Type Double Head Pneumatic Spot Welding Machine
DESCRIPTION
This machine is suitable for welding thickness of 3.5+3.5mm . Adopt double-head design which can weld two position at the same time
SPECIFICATION
Model |
Input |
Input |
Output Current |
Pressurization |
Electrode |
Closure |
Platform |
Electrode |
Cooling |
V |
KVA |
A |
kg |
mm |
mm |
mm |
mm |
Lit/Min |
|
WL-SP-150K |
380/1 |
150 |
40000 |
1000 |
100 |
130-230 |
260 |
490-540 |
8 |
ADVANTAGE
1) We use the intelligent microcomputer type controller. It is designed by ourselves. Constant Current Control, Constant Voltage Control, Slow Rise Current, Pulse Start, Fault Code Display.
2) Our controller has been awarded the patent la3t year.
3) Easy to adjust the welding power and welding current
4) Wide application, firm welding, no loose welding, Sparks can be quite effectively resisted
5) When the current is too low, it will automatically compensate. welding current is more stable
6) Convenient operation, easy adjustment. The intensity and time of welding current of each welding condition could be set separately.
7) Pneumatic control (action output); the pneumatic control could be delayed
FEATURE
1. Welding Control System:
WD-KD5: Intelligent microcomputer control; Multiple-section of discharge; It can be used to preheat, to weld, to reshape or to temper for special materials; Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding; Especially suitable for welding high-carbon steel or special interlayer of metal plate; When the voltage of power supply is fluctuated, it can automatically compensate the current to weld.
2. Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.
3. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.
4. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.
5. Safety in Use: Strictly implement the security standard of China Compulsory Certification and CE of European Community.
APPLICATION
Iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware, etc.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
