Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA

Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA

micro spot welding machine

miniature spot welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SPM-100K

Contact Us

Request A Quote
Product Details
Product Name:
100KVA Iron Nuts , Bolts , Screws AC Projection Welding Machinery
Application:
Welding Of Nuts, Bolts And Screws, Etc.
Size:
700x1300x1700mm
Weight:
300kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA





SPECIFICATION



Model

Voltage

Power

Secondary

 Current

Pressurization

Electrode

  Stroke

Closure

Platform

Distance

Electrode

Distance

Cooling

Water



V

KVA

A

Kg

mm

mm

mm

mm

Lit/min

WL-SPM-100K

380

100

34000

1000

100

130-230

260

490-540

8







APPLICATION

Welding of nuts, bolts and screws, etc.





DESCRIPTION

Pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such low voltage but large current will be transmitted from the electrode to the linked position of two work pieces. Due to the resistance of work piece, high temperature will happen on the linkage so the metal will melted and joint together.



The power of the pneumatic AC pulse spot welder that we produce is from 3KVA to 600KVA. It can be used to weld max 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware.

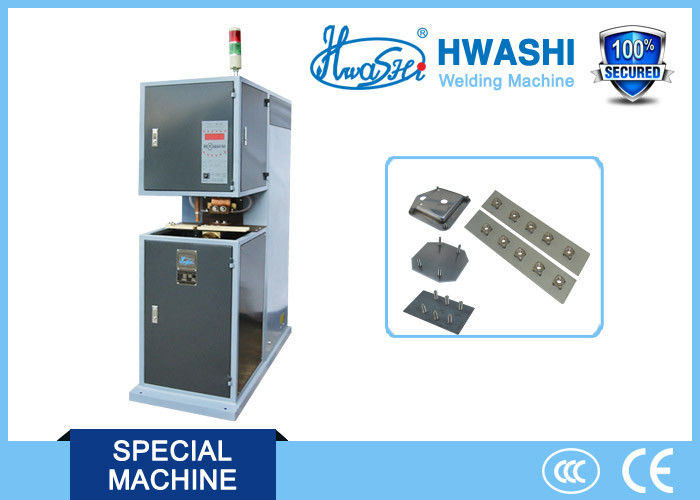

Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA 0





FEATURE

1. Welding Control System: The AC pulse spot welder that we produce can be matched with many types of welding controllers.



WD-KD5: Intelligent microcomputer control; Multiple-section of discharge; It can be used to preheat, to weld, to reshape or to temper for special materials; Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding; Especially suitable for welding high-carbon steel or special interlayer of metal plate; When the voltage of power supply is fluctuated, it can automatically compensate the current to weld.



2. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.



3.Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.



4. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.



5. Safety in Use: Strictly implement the security standard of China Compulsory Certification and CE of European Community.









COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA 1



                                                      Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA 2



                                              Iron Nuts / Bolts / Screws AC Projection Welding Machine 100KVA 3
