Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SP-50K
Contact Us
Video
Video

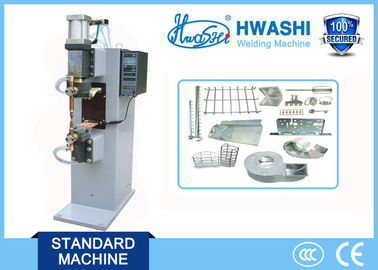

Two-phase AC Pneumatic Spot Welding Machine
SPECIFICATION
|
Model |
Input |
Input |
Output Current |
Pressurization |
Electrode |
Closure |
Platform |
Electrode |
Cooling |
|
|
V |
KVA |
A |
kg |
mm |
mm |
mm |
mm |
Lit/Min |
||
|
WL-SP-50K |
380/1 |
50 |
19500 |
500 |
80 |
145-225 |
250 |
320-420 |
6 |
|
|
WL-SP-75K |
75 |
24000 |
1000 |
100 |
130-230 |
260 |
490-540 |
8 |
||
|
WL-SP-100K |
100 |
34000 |
1000 |
100 |
130-230 |
260 |
490-540 |
8 |
The Overall Dimension and Welding Capability
|
Model |
Dimensions (mm) |
Weight (kg) |
Welding Capability (mm×Piece) |
||
|
Width |
Depth |
Height |
|||
|
WL--50K |
480 |
900 |
1600 |
350 |
2+2 |
|
WL--75K |
780 |
1250 |
1800 |
400 |
2.5+2.5 |
|
WL--100K |
780 |
1250 |
1800 |
500 |
3+3 |
DESCRIPTION
Resistance spot welding is a process in which contacting metal surfaces are joined by the heat obtained from resistance to electric current.
Work-pieces are held together under pressure exerted by electrodes. Typically the sheets are in the 0.5 to 3 mm (0.020 to 0.118 inch) thickness range. The process uses two shaped copper alloy electrodes to concentrate welding current into a small "spot" and to simultaneously clamp the sheets together. Forcing a large current through the spot will melt the metal and form the weld. The attractive feature of spot welding is that a lot of energy can be delivered to the spot in a very short time (approximately 10–100 milliseconds). That permits the welding to occur without excessive heating of the remainder of the sheet.
APPLICATION
1. Mild steel sheet, stainless steel sheet, galvanized metal sheet spot welding
2. Metal sheet fixing welding before continues rolling seam welding.
3. Welding fan guard (with proper designed fixing and driving system), welding metal artware, stationery, cook ware, and all kinds of daily metal products.
4. Welding high conductive material, like aluminum, electrical contact, copper wire etc.(using Middle frequency power)
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
