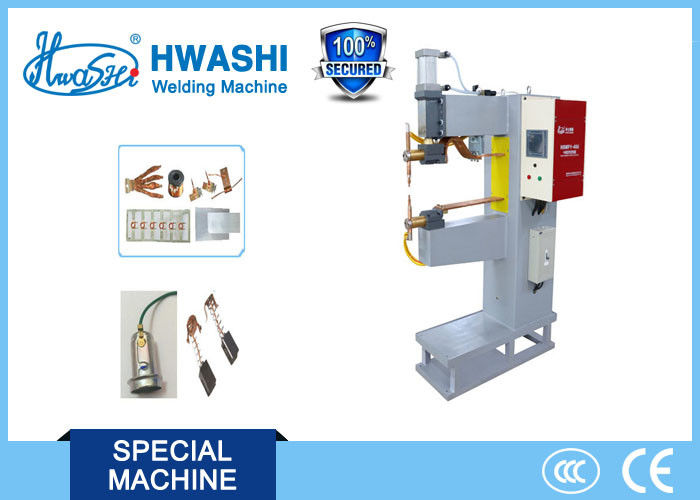

HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-35K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines Application: Welding Of Copper ,aluminum Plate
Size: 480x900x1600*mm Rated Power: 35kva
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
Duty Cycle Rate: 20%
High Light:

medium frequency welding


spot welding tool

Product Description

HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines




MF DC Inverter Spot Welder is a set of advanced welding equipment. The welding transformer is in small size but the outout energy is large. Three-phase AC will be converted into DC after being rectified. Then the DC will be converted into medium frequency 1000HZ square wave to be connected to primary welding transformer  through the inverter circuit which is composed of IGBT. The MF square wave will become small  pulse DC to the electrode for welding work piece through the depressurization and recitifying process in the welding transformer. The Inverter will adjust the duty ratio of IGBT through the feedback of secondary current so as to achieve constant current of the welding process.


Welding current

HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines 0




Widely applied to welding battery ,lighting electric resource automobile.medical apparatus and instruments,photoelectric communication, micro motor as well as requested chip inductor with high temperature enamed round wire/extra fine wire minimum size can be 0.02mm), wire rope,metal wire,nickle cup, can cutting wire and welding ,CCFL filed ,fuse,lamp filament.





1. The current in secondary weldin gloop is DC. Dramatically reduce the impact to the welding current due to the inductive reactance in secondary lopp when welding to the work piece.


2.Reduce power consumination, energy saving . Reduce the requirement of cables and lots of maintance cost.


3. Improve the power factor, reduce the production cost.


4. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.


5. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.









5 Inches Blue Display Screen

Rated Power


Input Voltage

AC 380V, 50Hz

Duty Cycle Rate


Maximum Short Circuit Current


Inverter Frequency


Welding Cycle Period


Welding Pulse Times


Current Slow Rise And Down Control


Stored Welding Models


Throat Depth


Cylinder Size




HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines 1

HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines 2

HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines 3

     HWASHI Pneumatic Long Arm DC Projection Spot Welding Machines 4




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always  willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
